Oil Pump: Disassembly

Remove seal rings.

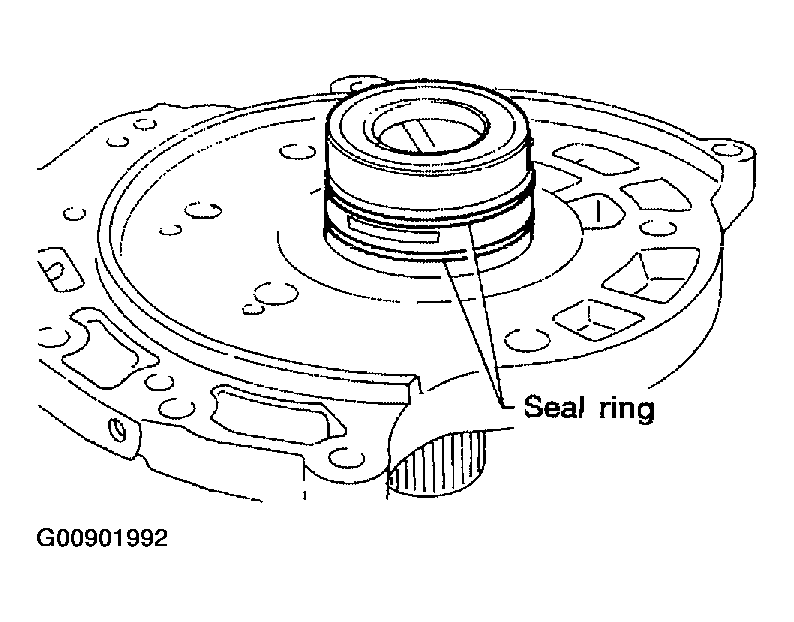

Fig 1: Removing Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Loosen bolts in a crisscross pattern and remove oil pump cover.

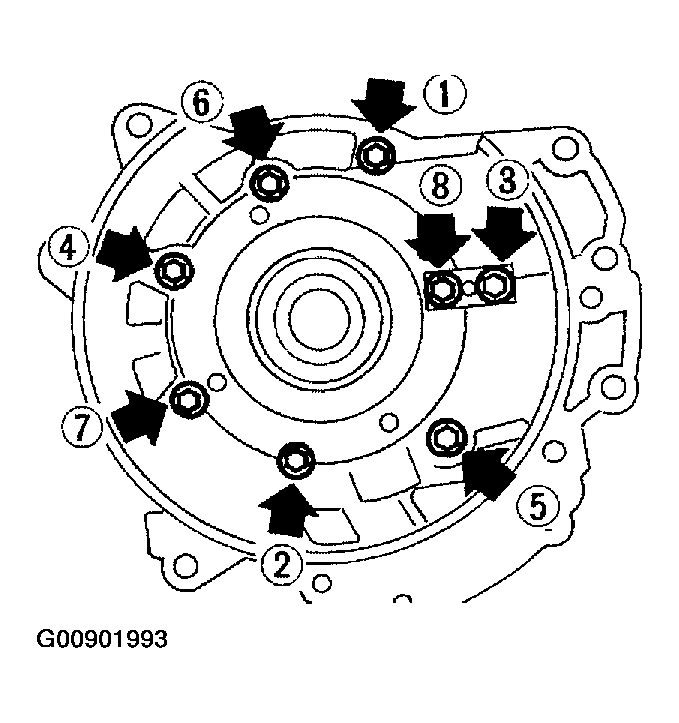

Fig 2: Identifying Removal Sequence Of Oil Pump Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove inner and outer gear from oil pump housing.

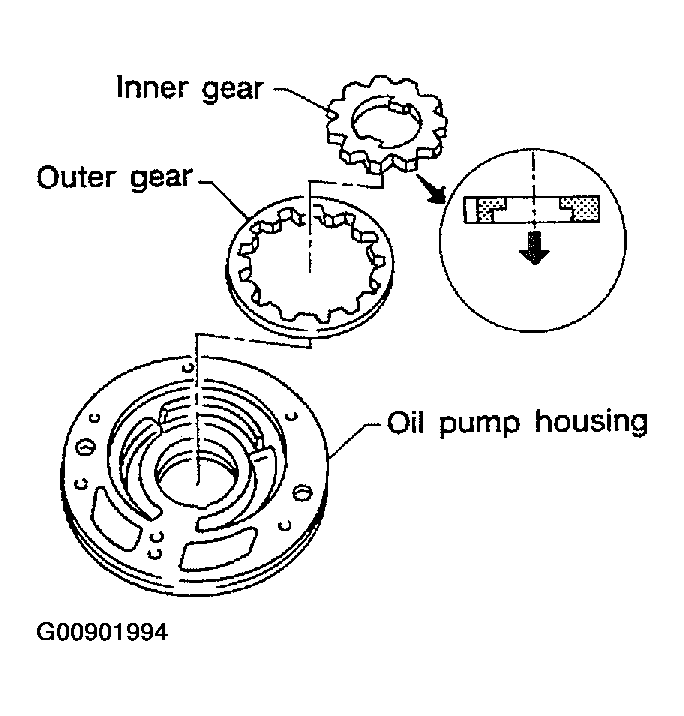

Fig 3: Removing Inner And Outer Gear From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump housing.

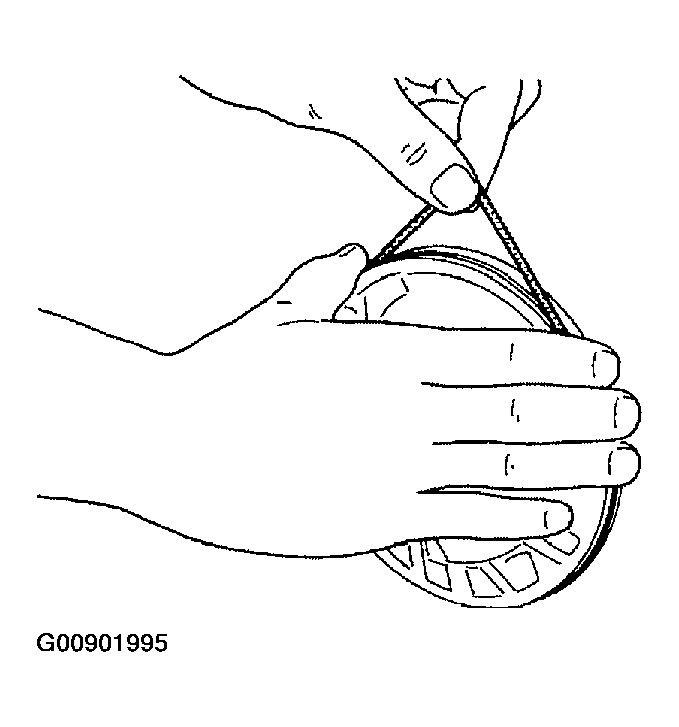

Fig 4: Removing O-Ring From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump housing oil seal.

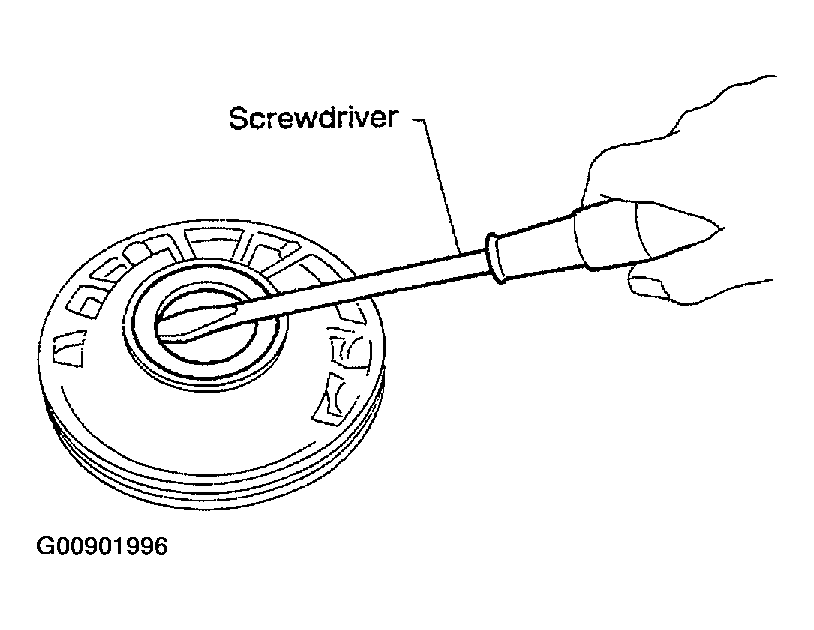

Fig 5: Removing Oil Pump Housing Oil Seal
