Vehicle Speed When Performing And Releasing Lock-Up

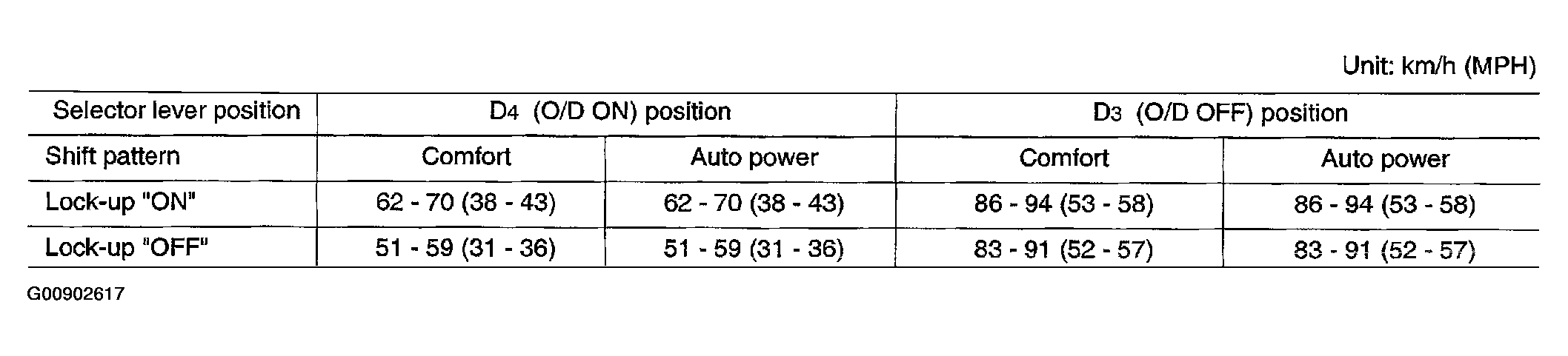

Fig 1: Vehicle Speed When Performing And Releasing Lock-Up Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• Lock-up vehicle speed indicates the speed in D4 (O/D ON) position.
• Perform Lock-up inspection after warming up engine.
• Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
