Diagnostic Worksheet

Fig 1: Diagnostic Worksheet (2 Of 3)
G00901321Courtesy of NISSAN MOTOR CO., U.S.A.

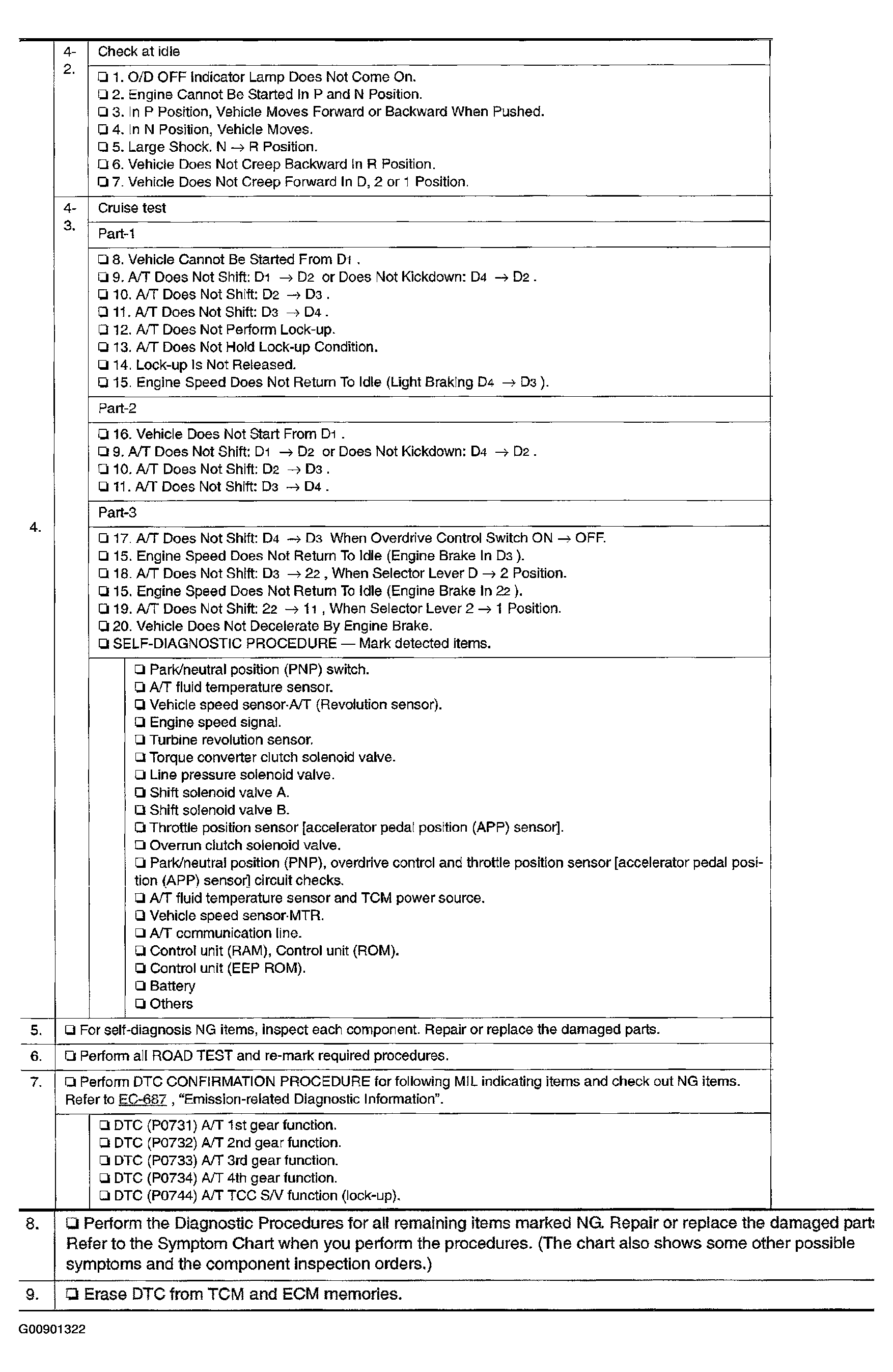

Fig 2: Diagnostic Worksheet (3 Of 3)
G00901322Courtesy of NISSAN MOTOR CO., U.S.A.
