Park/Neutral Position Switch
- Remove shift cable from manual shaft.
- Set manual shaft in Neutral.
- Loosen PNP switch bolts.

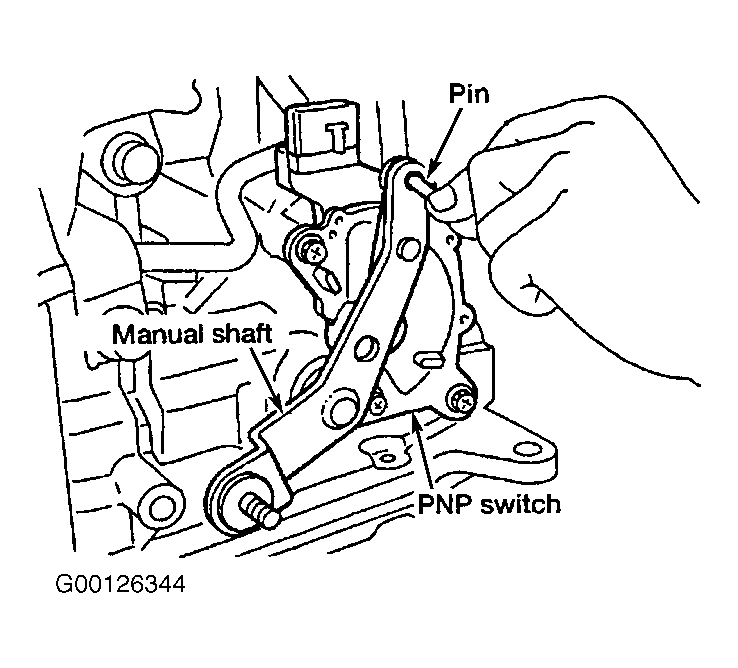

- Insert .16 in. (4 mm) pin into adjustment holes in both PNP switch and manual shaft assembly as near vertical as possible. See Fig 1 .
- Reinstall any part removed.
- Check continuity of PNP switch. See appropriate DIAGNOSIS article.
