Throttle Control Motor
- Disconnect electric throttle control actuator harness connector.

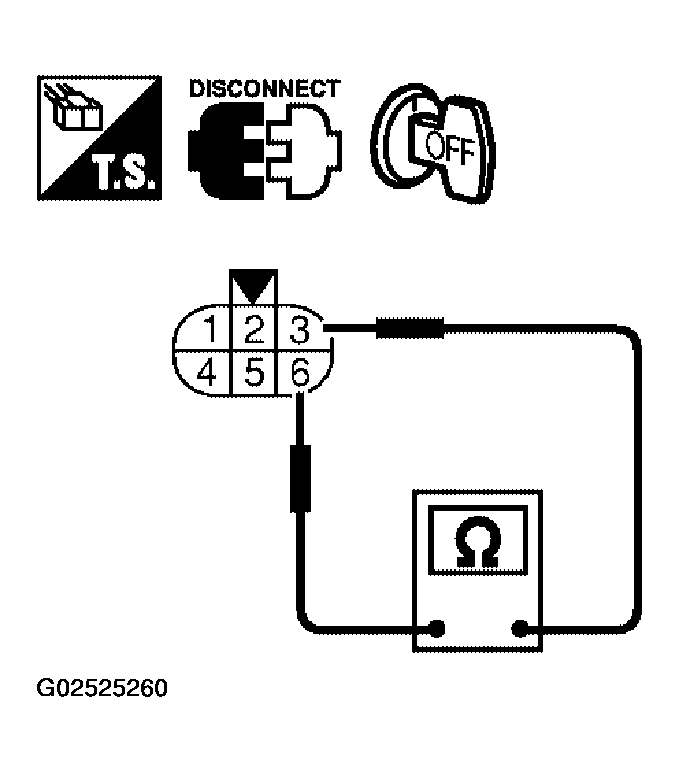

- Check resistance between terminals 3 and 6.
Resistance: Approximately 1 - 15Ω [at 25 °C (77°F)]
- If NG, replace electric throttle control actuator and go to next step.
- Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
- Perform "IDLE AIR VOLUME LEARNING ".
