VIAS Control Solenoid Valve

With CONSULT-II

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time under the following conditions.
   CONDITION AND AIR PASSAGE CONTINUITY REFERENCE



   Condition	Air passage continuity	Air passage continuity
   VIAS SOL VALVE	Between A and B	Between A and C
   ON	Yes	No
   OFF	No	Yes

   Operation takes less than 1 second.

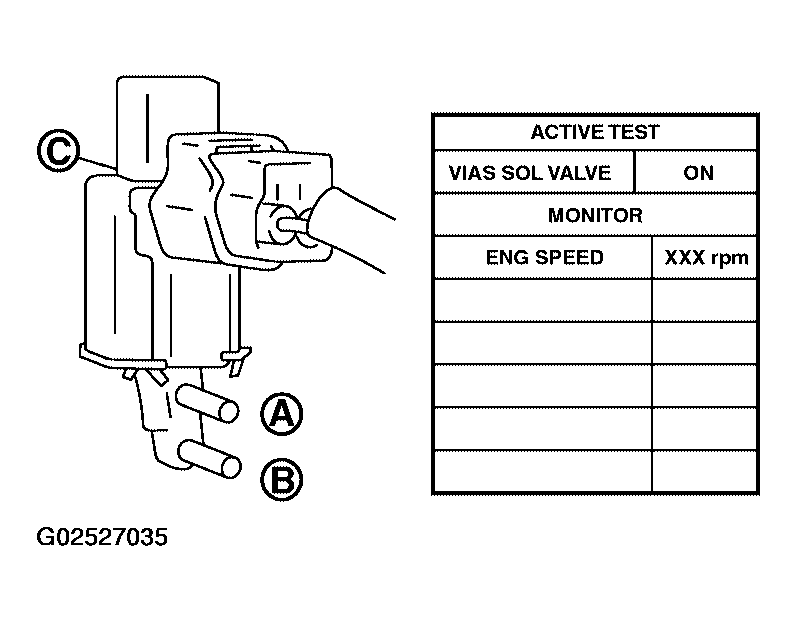

   Fig 1: Identifying VIAS Control Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check air passage continuity and operation delay time under the following conditions.

Operation takes less than 1 second.

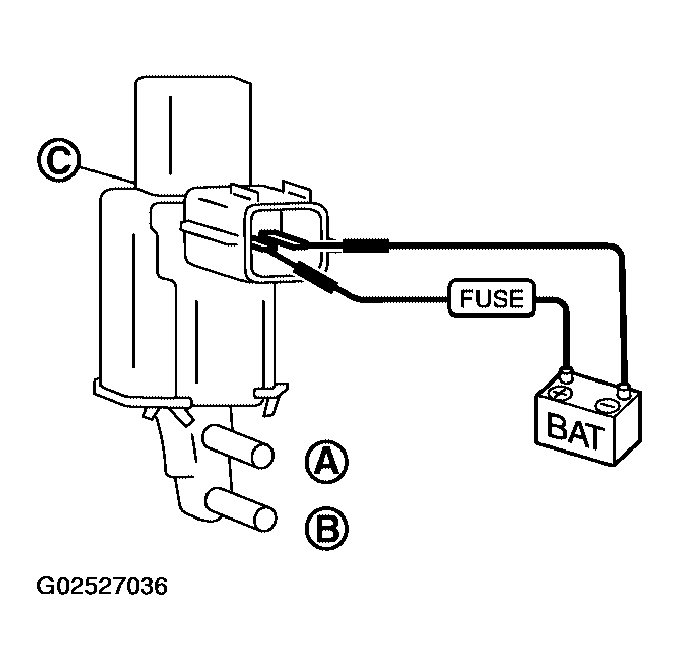

Fig 2: Checking Air Passage Continuity And Operation Delay Time

Courtesy of NISSAN MOTOR CO., U.S.A.
