Wheel Sensors

The front wheel sensors consist of a gear-shaped sensor rotor and a sensor element. The element contains a magnet around which a coil is wound. The front wheel sensors are installed on the front of the wheel knuckles. As the wheel rotates, the sensor generates a square-wave signal. The frequency increases as the wheel speed increases.

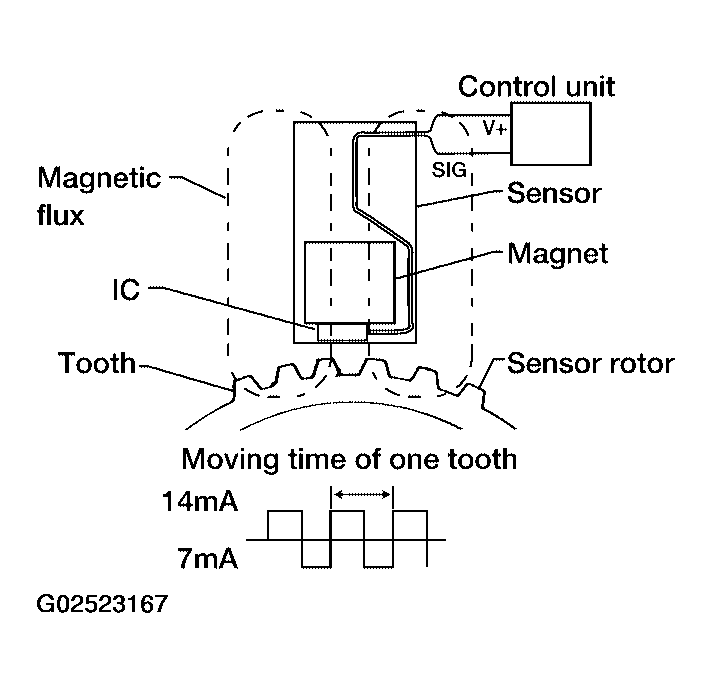

Fig 1: Identifying Front Wheel Sensors Operation (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

The rear wheel sensors consist of wheel hubs with a series of internal magnets and a sensor element. The rear wheel sensors are installed on the inner side of the wheel knuckles. As the wheel rotates, the sensor generates a square-wave signal. The frequency increases as the wheel speed increases.

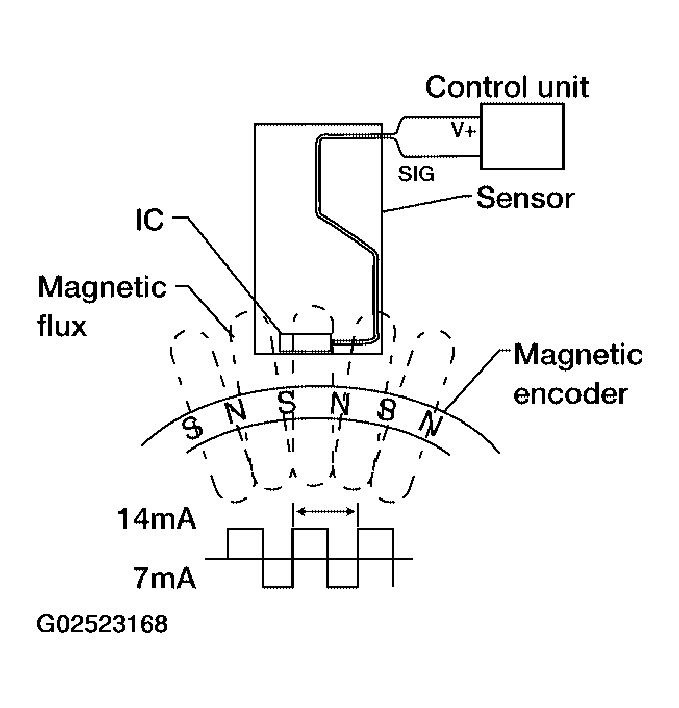

Fig 2: Identifying Front Wheel Sensors Operation (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
