Active Test Mode

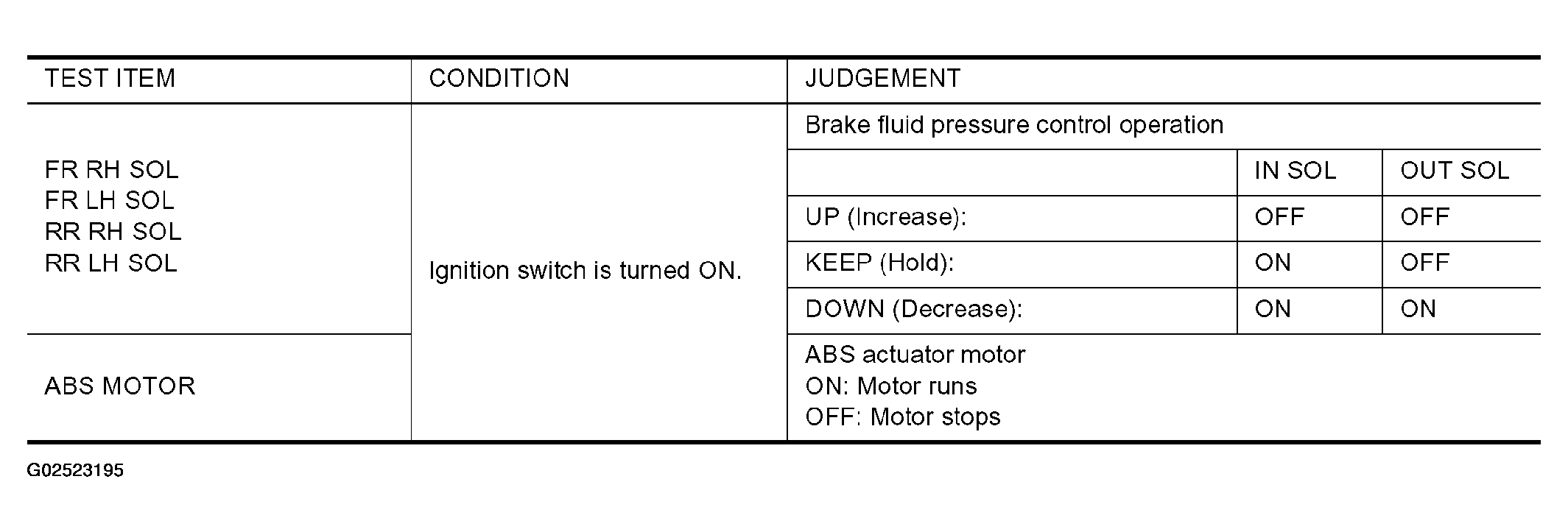

Fig 1: Active Test Mode Table
G02523195Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED is displayed.)
