Active Test Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

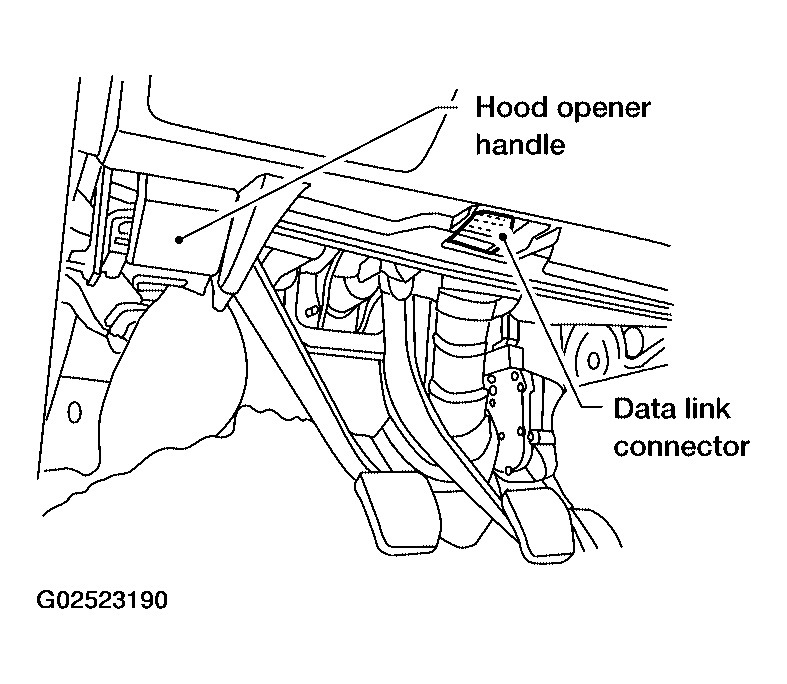

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

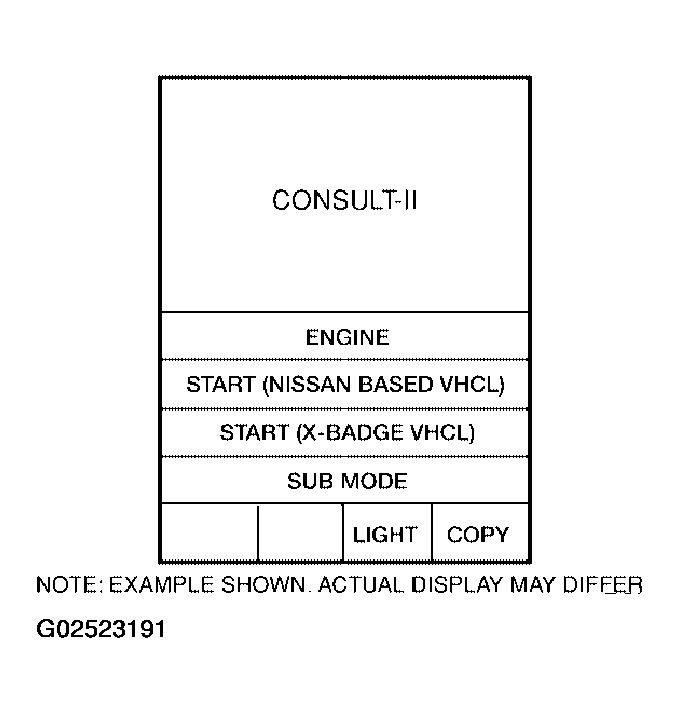

Fig 2: CONSULT-II Diagnosis Function Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

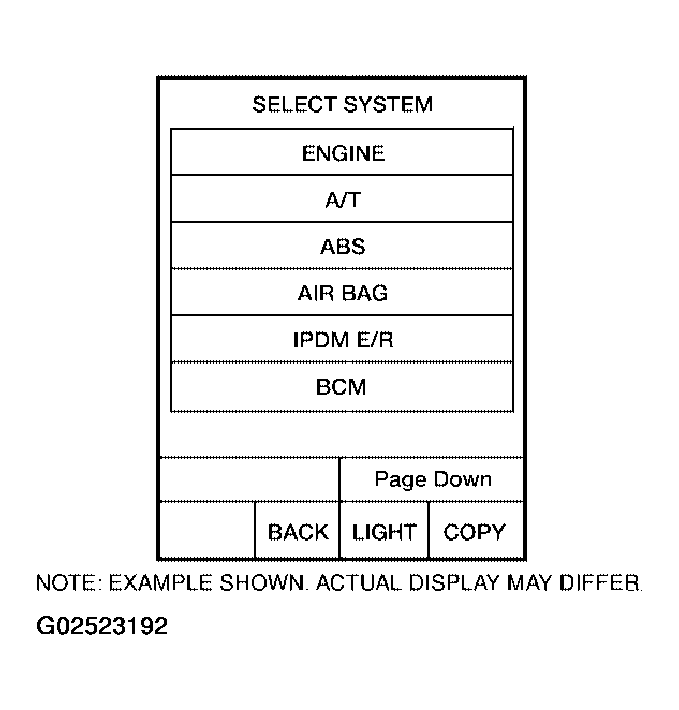

Fig 3: CONSULT-II Diagnosis Function Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

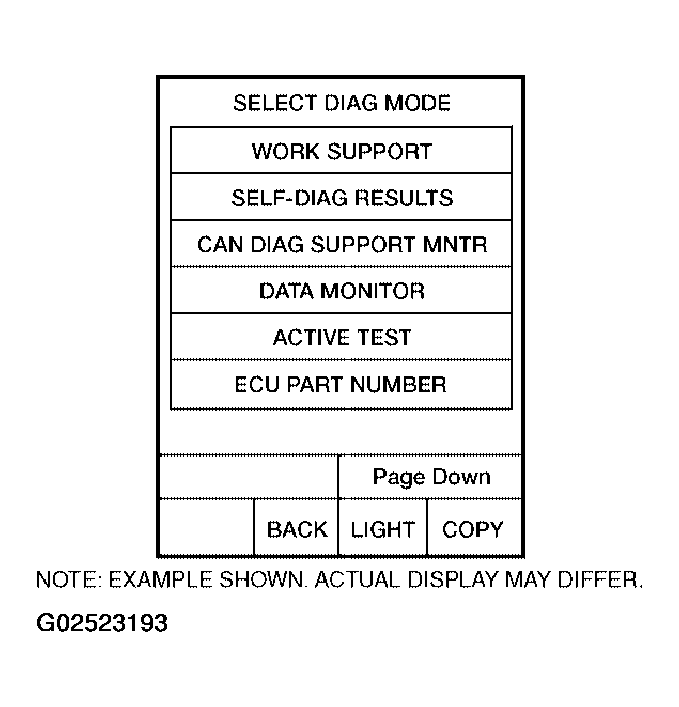

Fig 4: CONSULT-II Diagnosis Function Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

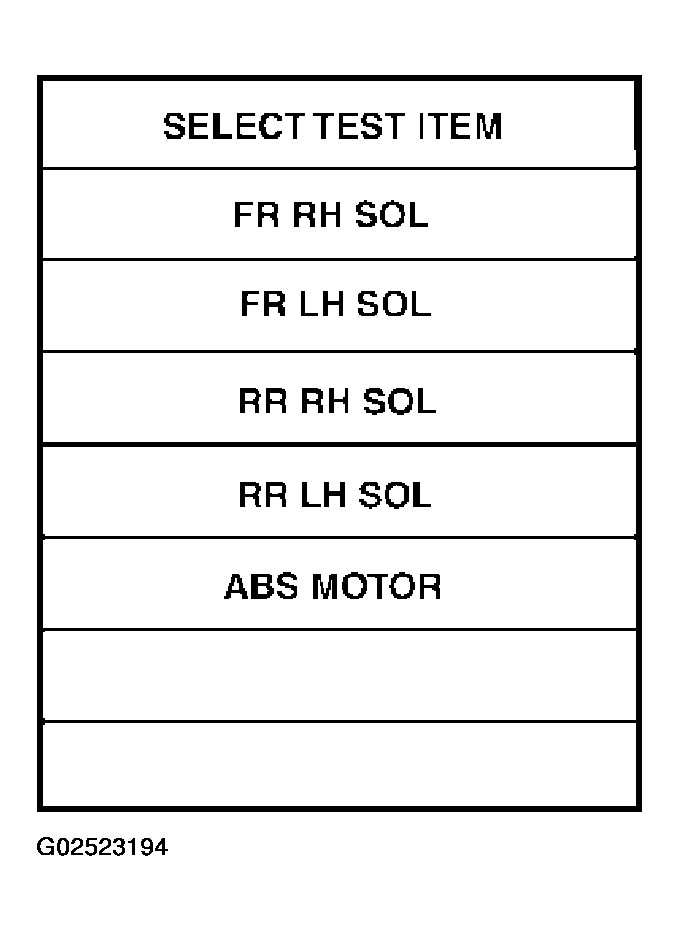

Fig 5: CONSULT-II Diagnosis Function Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.
