Preliminary Check

Low fluid level may indicate brake pad wear or leakage from brake line.

Is brake fluid filled between MAX and MIN lines on reservoir tank and is brake fluid clean and free of contamination?

• OK: GO TO 2.
• NG: Repair. GO TO 2.

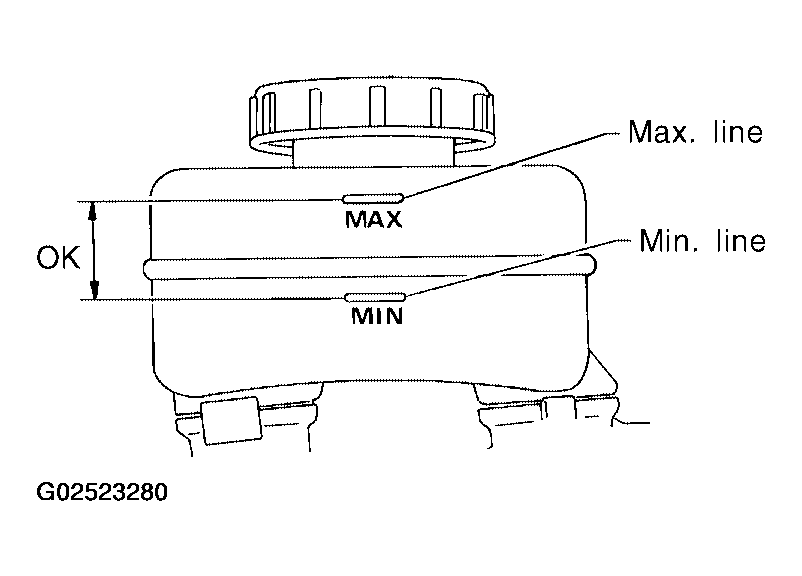

  Fig 1: Identifying Brake Fluid Level

  Courtesy of NISSAN MOTOR CO., U.S.A.

Is leakage present at or around brake lines, tubes or hoses, or are any of these parts cracked or damaged?

• OK: GO TO 3.
• NG: Repair. GO TO 3.

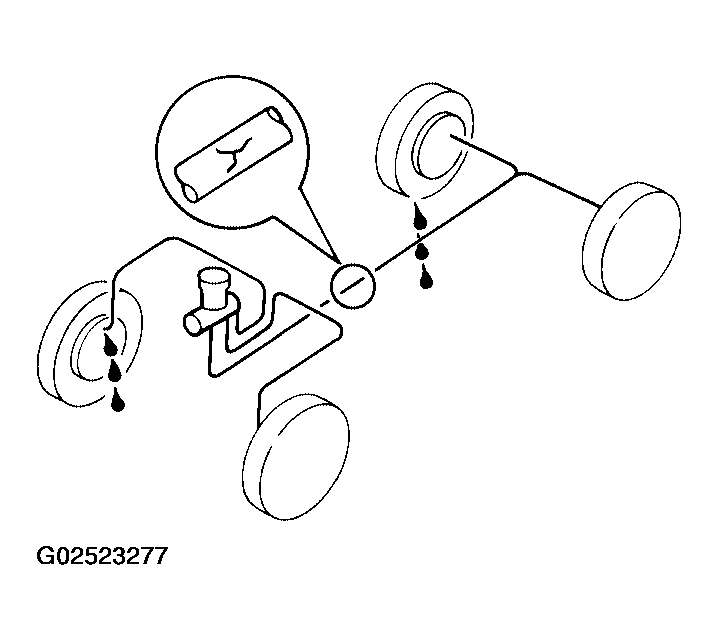

  Fig 2: Identifying Brake Lines Leakage

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check brake booster for operation and air tightness. Refer to "AIRTIGHT CHECK ".

Is brake booster airtight and functioning properly?

• YES: GO TO 4.
• NO: Replace. GO TO 4.

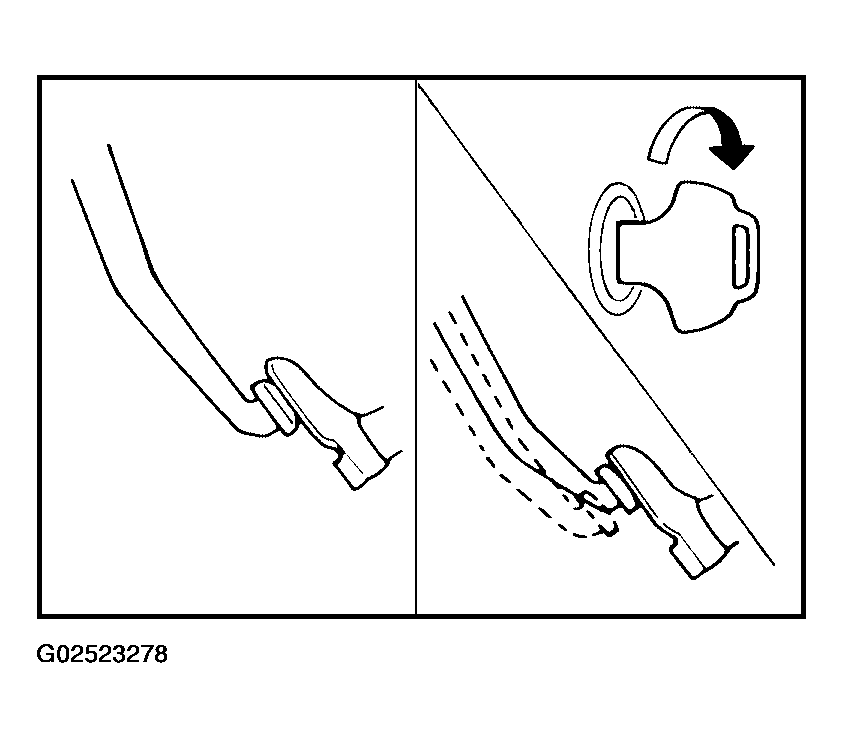

  Fig 3: Checking Brake Pedal Operation

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check brake pads and rotors. Refer to "FRONT DISC BRAKE " and "REAR DISC BRAKE ".

Are brake pads and rotors functioning properly?

• YES: GO TO 5.
• NO: Replace.

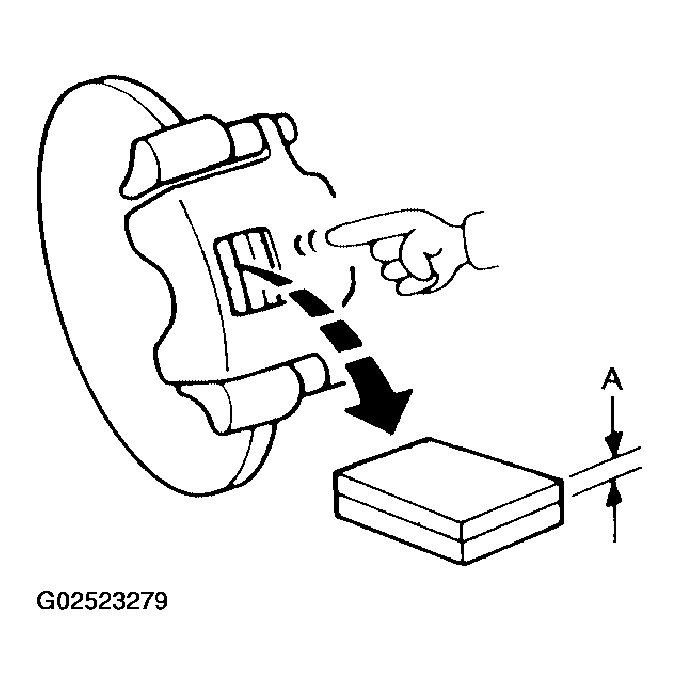

  Fig 4: Checking Brake Pads And Rotors

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check brake fluid level in reservoir tank again.

Is brake fluid filled between MAX and MIN lines on reservoir tank and is brake fluid clean and free of contamination?

• OK: GO TO 6.
• NG: Add brake fluid as necessary.

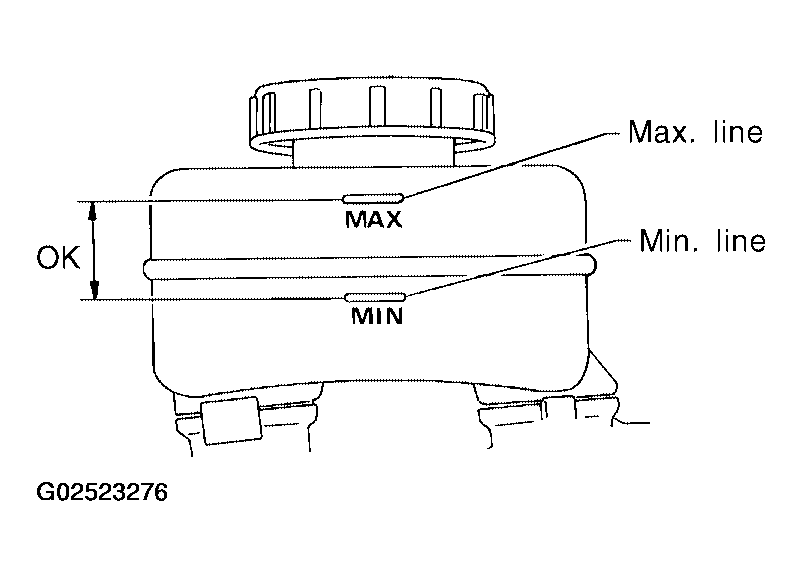

  Fig 5: Checking Brake Fluid Level

  Courtesy of NISSAN MOTOR CO., U.S.A.

Do ABS warning lamp, TCS OFF indicator lamp and SLIP indicator lamp turn on when ignition switch is turned ON?

• YES: GO TO 7.
• NO: Check combination meter. Refer to "SELF-DIAGNOSIS FUNCTION ".

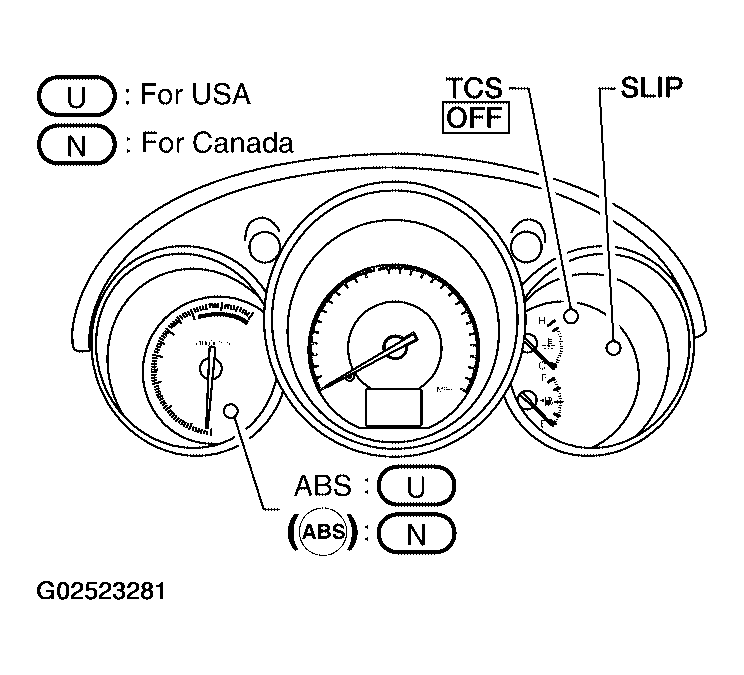

  Fig 6: Identifying ABS Warning Lamp And Indicator Lamps

  Courtesy of NISSAN MOTOR CO., U.S.A.

Do lamps turn off when engine is started?

• YES: GO TO 8.
• NO: Go to Self-diagnosis. Refer to "SELF-DIAGNOSIS PROCEDURE ".

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Do warning lamp and indicator lamps remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

• YES: Inspection End.
• NO: Go to Self-diagnosis. Refer to "SELF-DIAGNOSIS PROCEDURE ".
