Engine Coolant Temperature Sensor

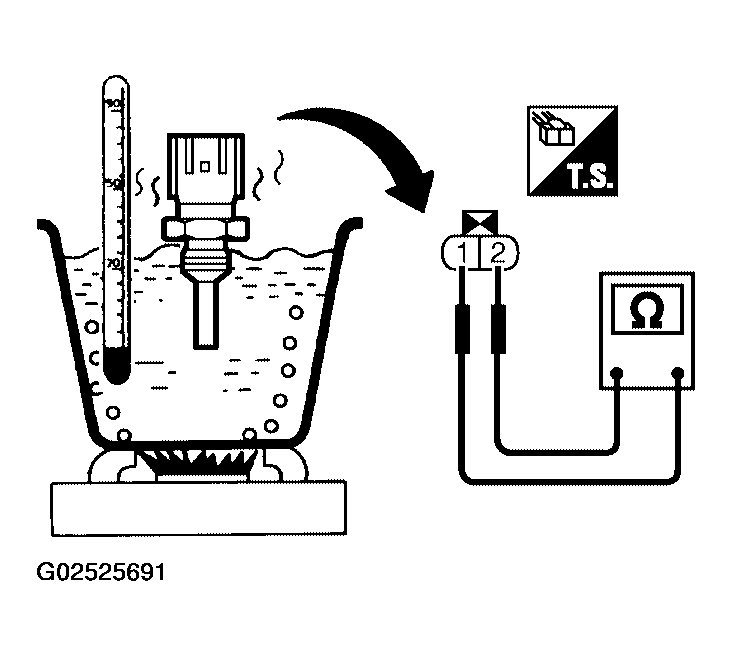

Check resistance as shown in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.

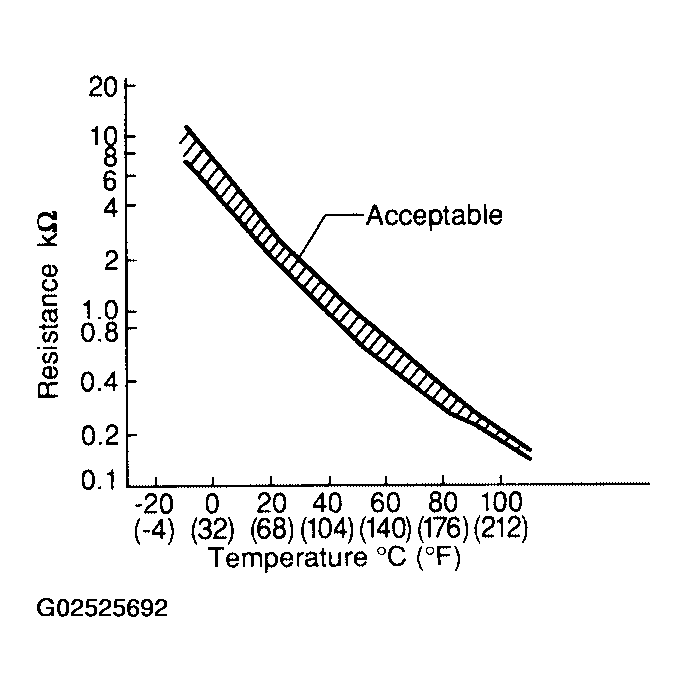

Reference data
RESISTANCE CONDITION
| Temperature °C (°F) |
Resistance kΩ |
| 20(68) |
2.1 - 2.9 |
| 50(122) |
0.68 - 1.0 |
| 90(194) |
0.236 - 0.260 |
If NG, replace engine coolant temperature sensor.
Courtesy of NISSAN MOTOR CO., U.S.A.
