EGR Temperature Sensor

  1. Turn ignition switch OFF.
  2. Disconnect EGR temperature sensor harness connector.
  3. Check resistance between EGR temperature sensor terminals 1 and 2 as shown in the figure.

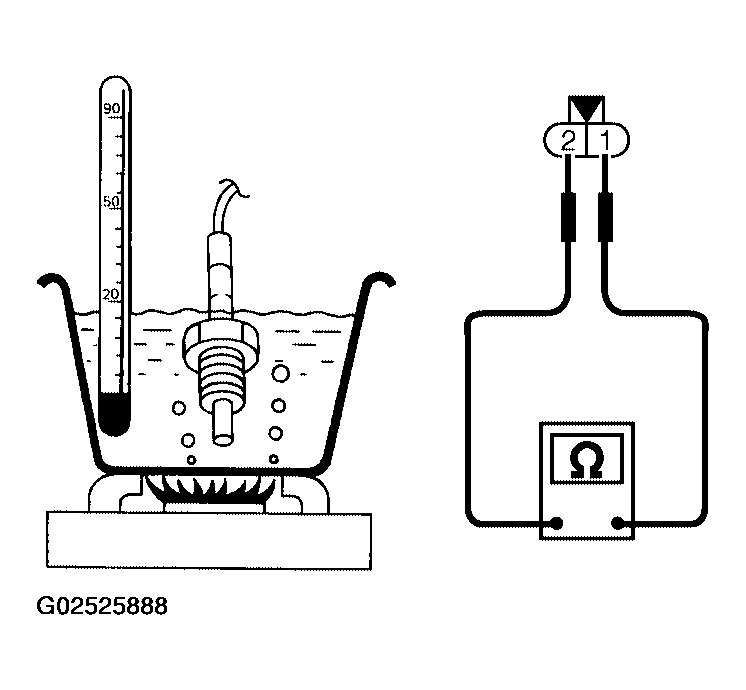

    Fig 1: Checking Resistance Between EGR Temperature Sensor Terminals 1 And 2
    G02525888Courtesy of NISSAN MOTOR CO., U.S.A.

    < Reference data >

    TEMPERATURE AND RESISTANCE

    EGR temperature °C (°F) Resistance MΩ
    0 (32) 0.73 - 0.88
    50 (122) 0.074 - 0.082
    100 (212) 0.011 - 0.014
  4. If NG, replace EGR temperature sensor.

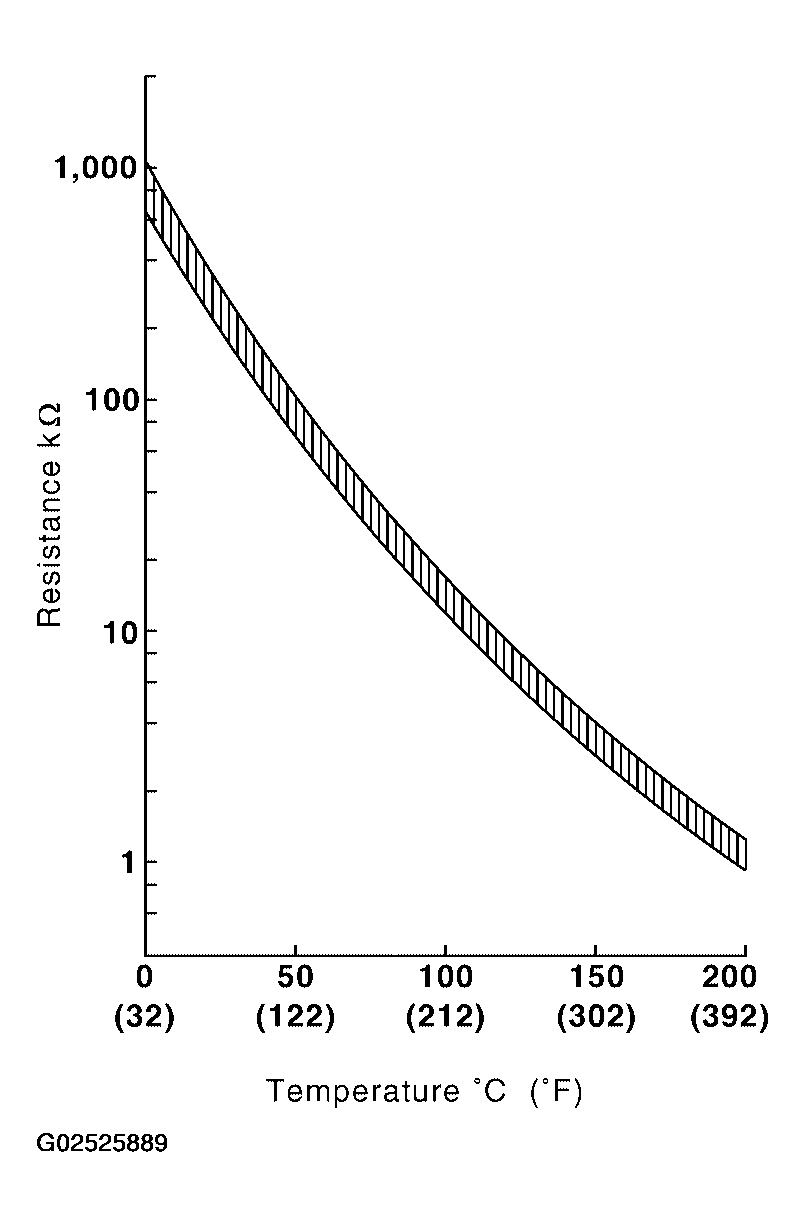

Fig 2: Resistance And Temperature Graph
G02525889Courtesy of NISSAN MOTOR CO., U.S.A.
