Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body
  Refer to "GROUND INSPECTION ".

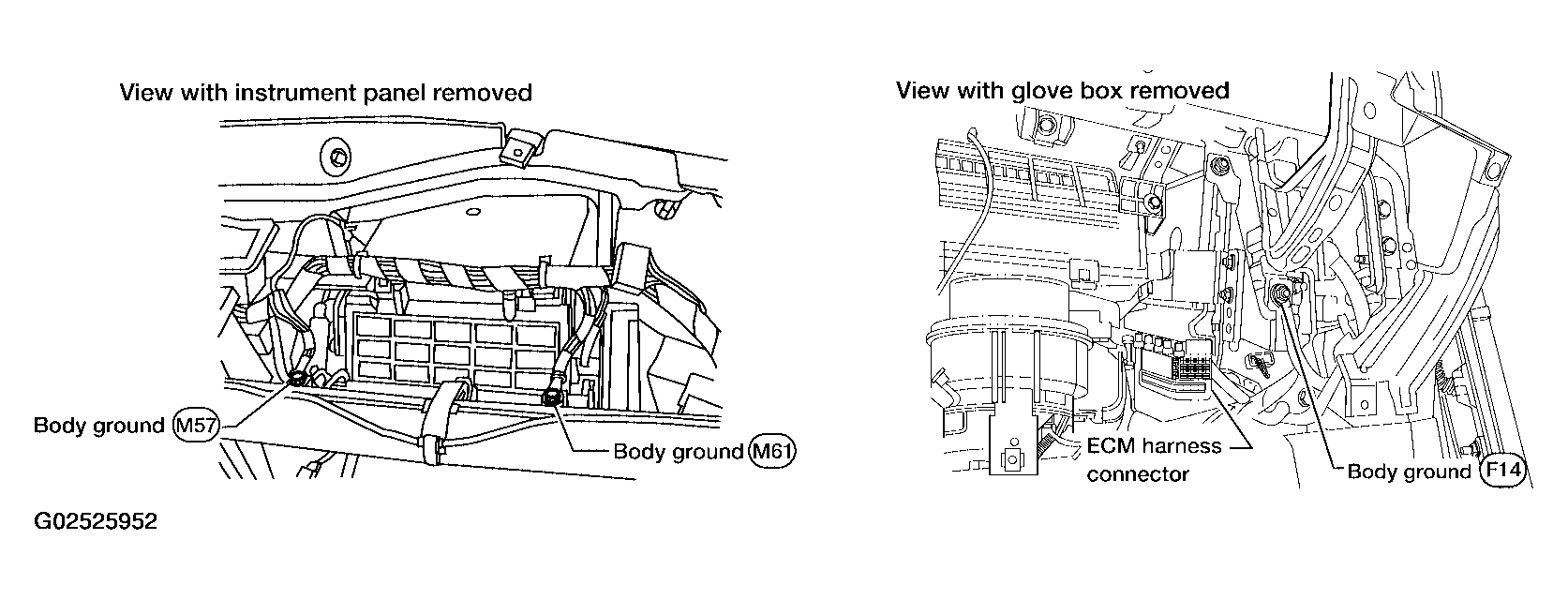

  Fig 1: Loosening And Retightening Ground Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace ground connections.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER
1. Disconnect EVAP control system pressure sensor harness connector

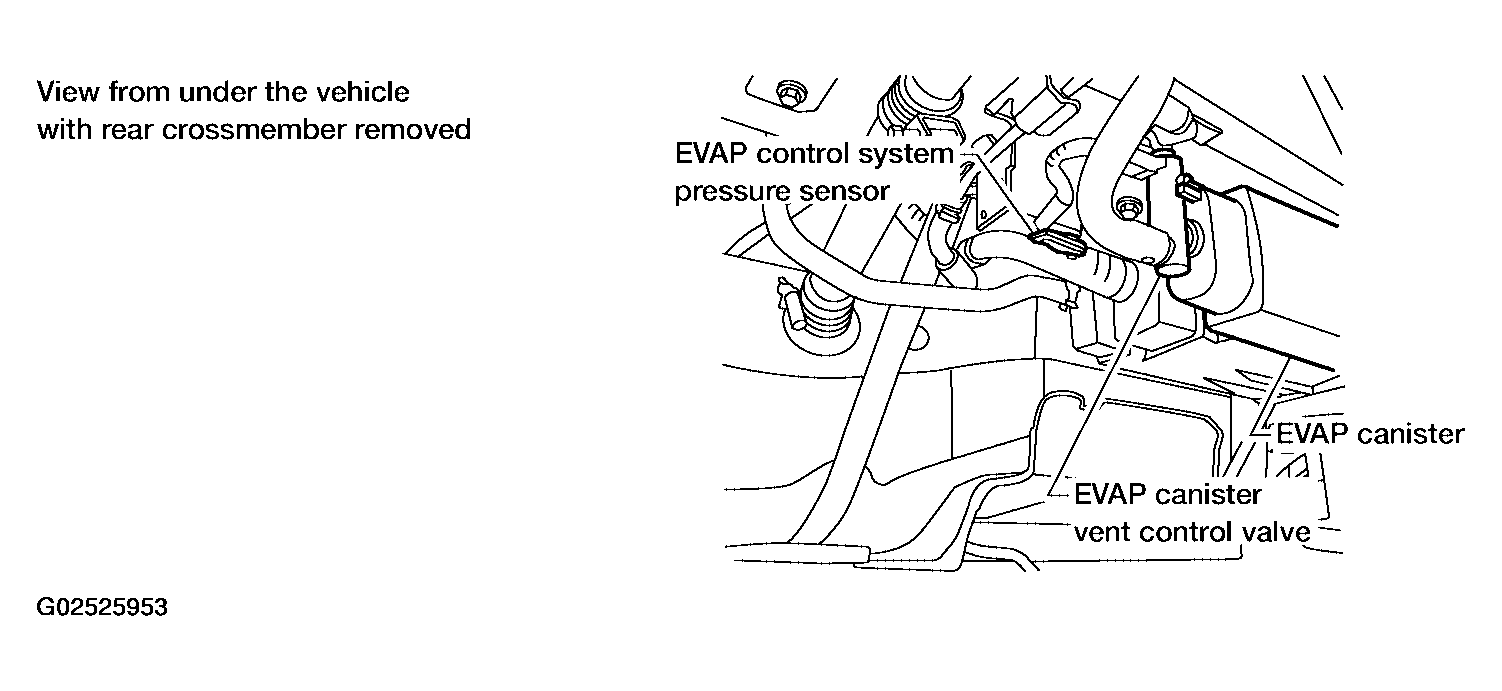

  Fig 2: Disconnecting EVAP Control System Pressure Sensor Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check sensor harness connector for water
  Water should not exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness connector.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG
- OK: GO TO 4.
- NG: Replace EVAP control system pressure sensor.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ". For wiring diagram, refer to WIRING DIAGRAM .
- : INSPECTION END
