Diagnostic Procedure

  1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
    • Turn ignition switch ON
    • Connect CONSULT-II and select "DATA MONITOR" mode.
    • Select "LOAD SIGNAL" and check indication under the following conditions.
    LOAD SIGNAL CONDITION - INDICATION

    Condition Indication
    Rear window defogger switch:ON NO
    Rear window defogger switch:OFF OFF

    OK or NG

    • OK: GO TO 2.
    • NG: GO TO  3.

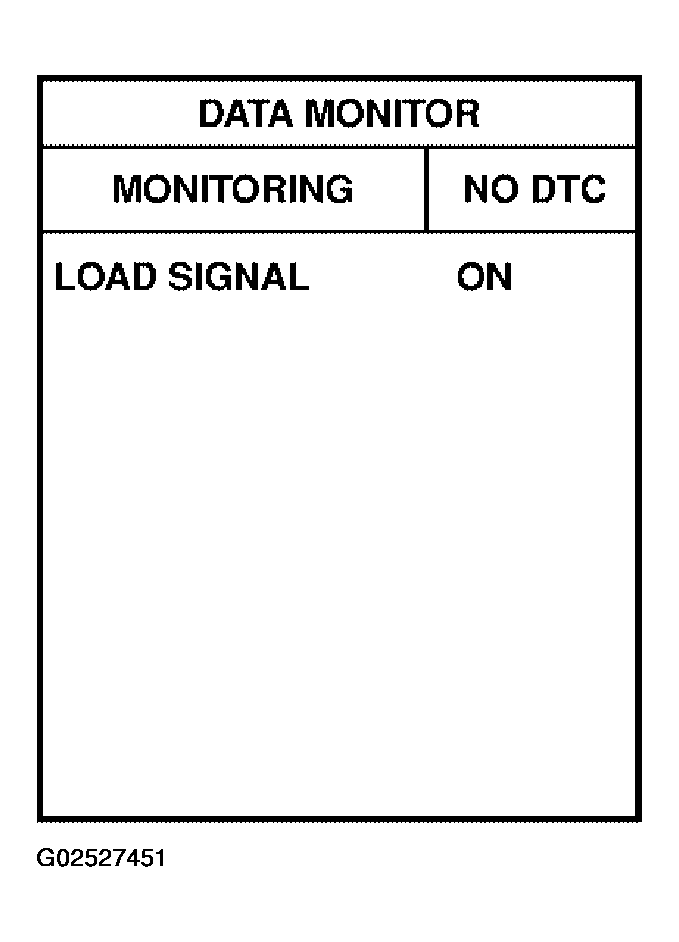

    Fig 1: Consult II Data Monitor Screen
    G02527451Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

    Check "LOAD SIGNAL" indication under the following conditions.

    LOAD SIGNAL INDICATIONS

    Condition Indication
    Lighting switch: ON at 2nd position ON
    Lighting switch: OFF OFF

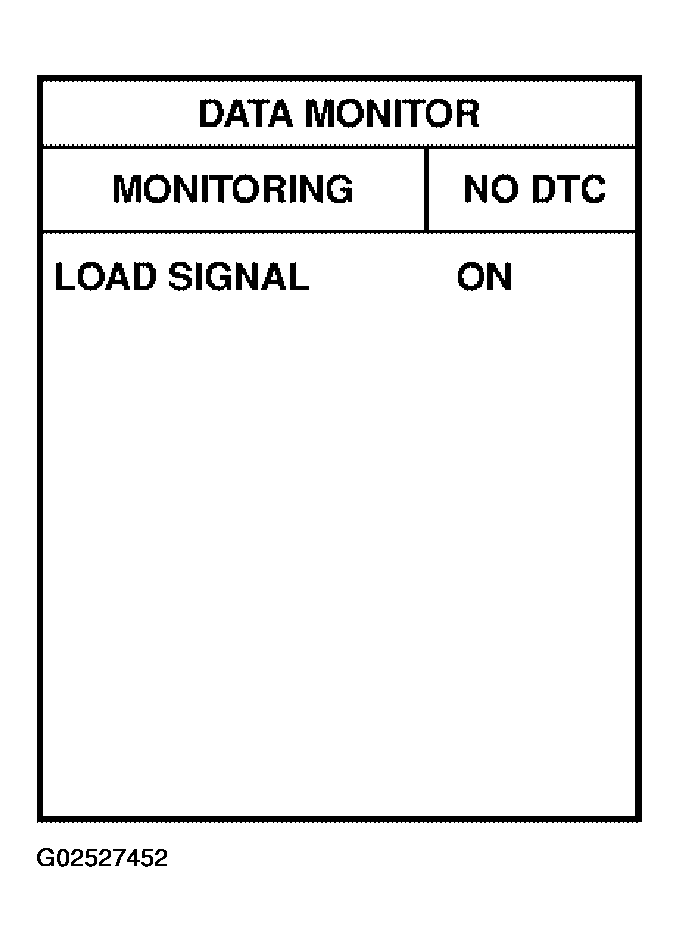

    Fig 2: Consult II Data Monitor Screen
    G02527452Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: INSPECTION END
    • NG: GO TO  4.
  3. CHECK REAR WINDOW DEFOGGER SYSTEM

    Refer to REAR WINDOW DEFOGGER .

    • : INSPECTION END
  4. CHECK HEADLAMP SYSTEM

    Refer to HEADLAMP (FOR USA) or HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM .

    • : INSPECTION END
