Diagnostic Procedure

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.
3. Turn VIAS control solenoid valve "ON" and "OFF", and make sure that power valve actuator rod moves.

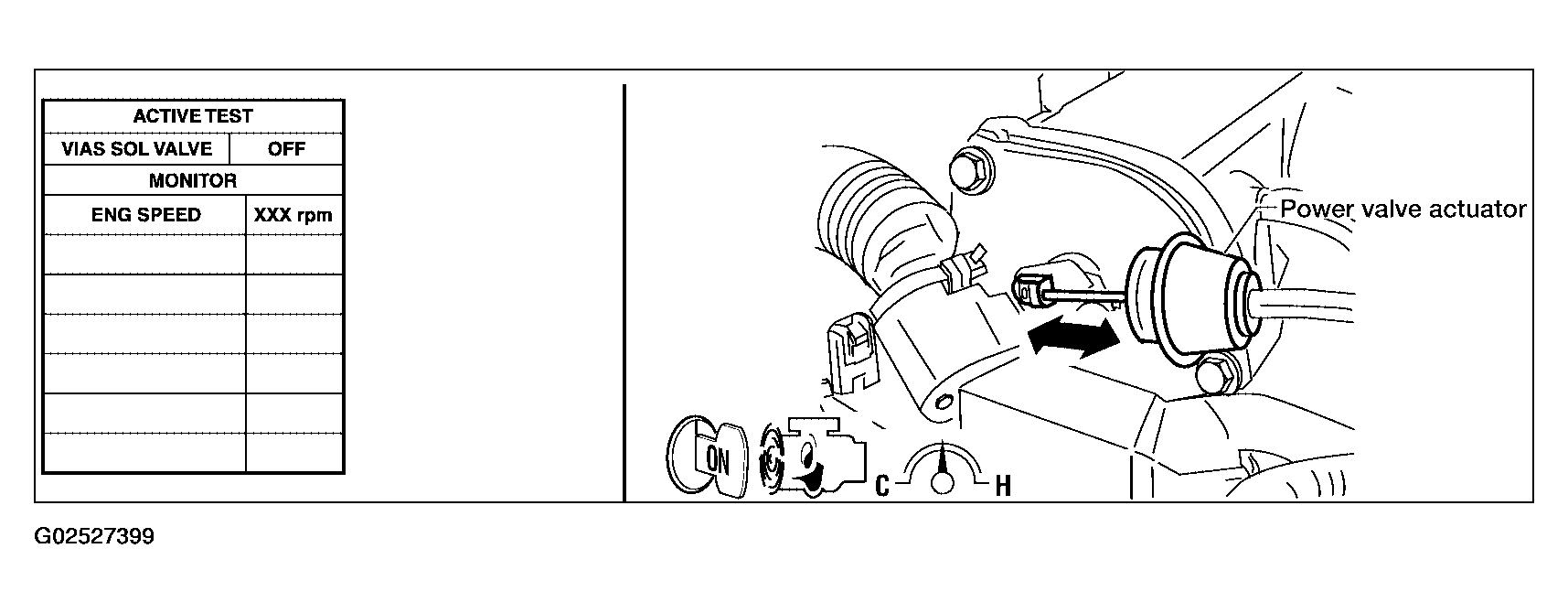

   Fig 1: Performing "VIAS SOL Valve In Active Test" Mode With Consult-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Rev engine up to 3, 600 RPM and make sure that power valve actuator rod moves.

OK or NG

• OK:INSPECTION END
• NG (With CONSULT-II): GO TO 2.
• NG (Without CONSULT-II): GO TO  3.

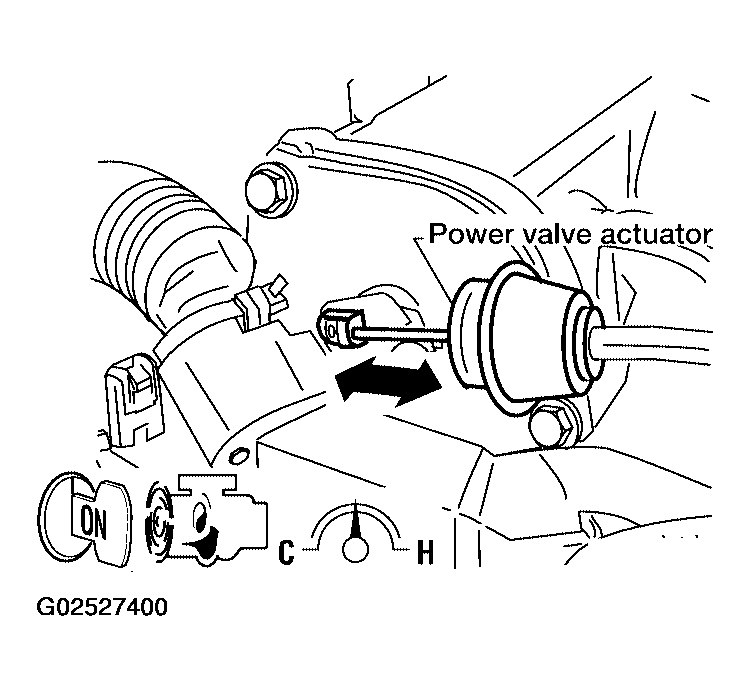

Fig 2: Identifying Movement Of Power Valve Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

1. Stop engine and disconnect vacuum hose connected to power valve actuator
2. Start engine and let it idle.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.
4. Turn VIAS control solenoid valve "ON" and "OFF", and check vacuum existence under the following conditions.

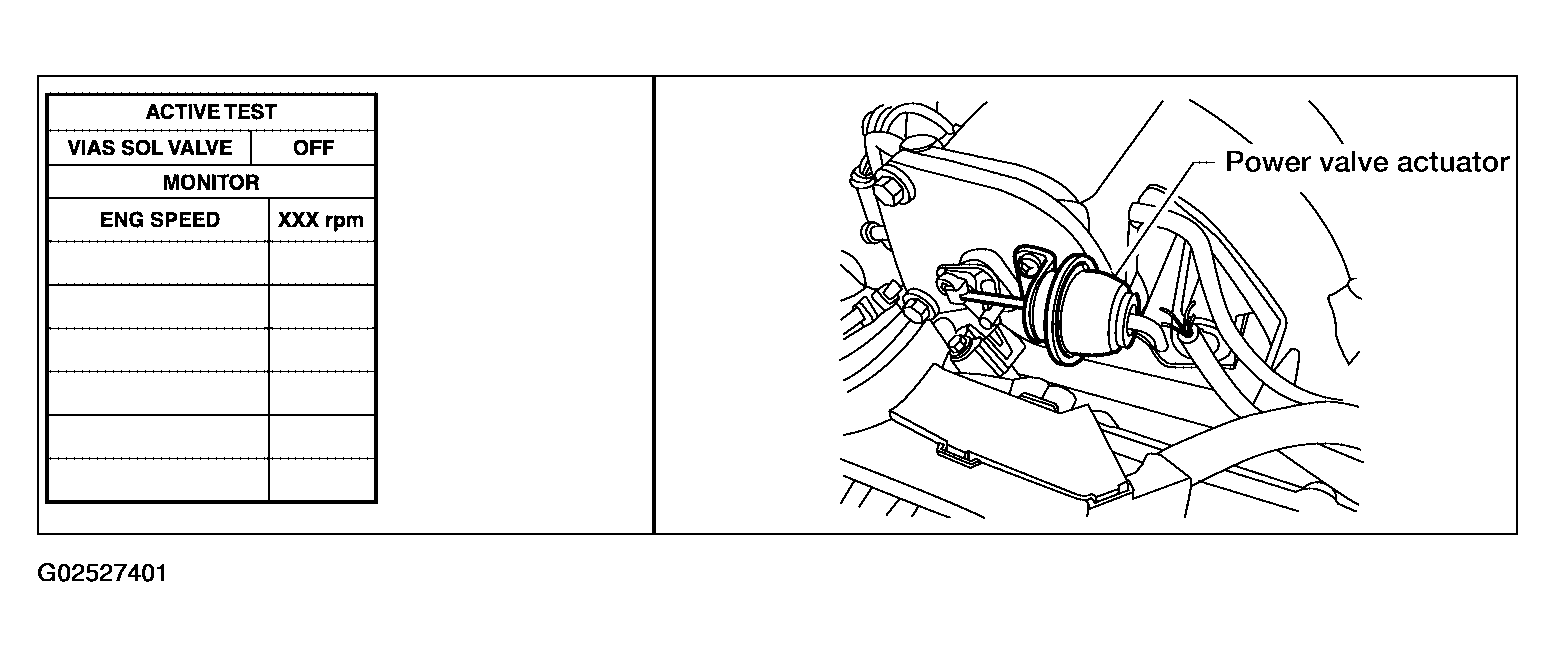

Fig 3: Performing "VIAS SOL Valve" In Active Test" Mode With Consult-II

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Repair or replace power valve actuator.
• NG: GO TO  4.

Without CONSULT-II

1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve terminals 1 and 2.

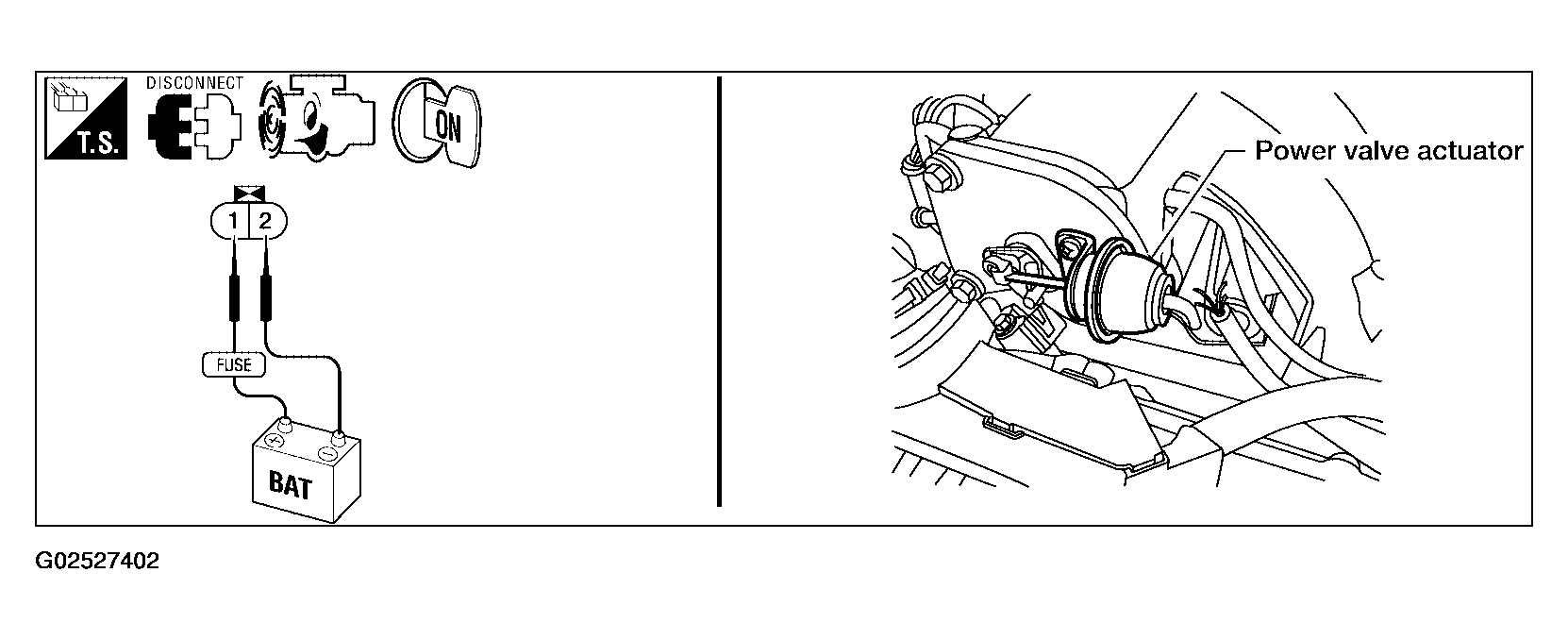

   Fig 4: Checking Vacuum Existence

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Check vacuum existence under the following conditions.
   VACUUM EXISTENCE CONDITIONS



   Condition	Vacuum
   12V direct current supply	Should exist.
   No supply	Should not exist.

   OK or NG

   • OK: Repair or replace power valve actuator.
   • NG: GO TO 4.

1. Stop engine.
2. Check hoses and tubes between intake manifold and power valve actuator for crack, clogging, improper connection or disconnection. Refer to "VACUUM HOSE DRAWING ".

OK or NG

• OK: GO TO 5.
• NG: Repair hoses or tubes.

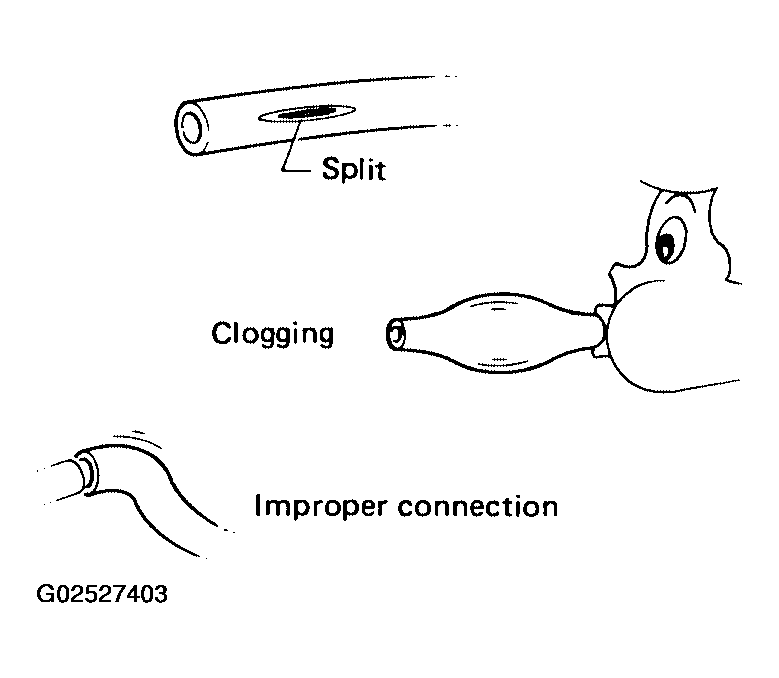

Fig 5: Checking Vacuum Hose

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT INSPECTION ".

OK or NG

• OK: GO TO 6.
• NG: Replace vacuum tank.

1. Turn ignition switch OFF.
2. Disconnect VIAS control solenoid valve harness connector.
3. Turn ignition switch ON.

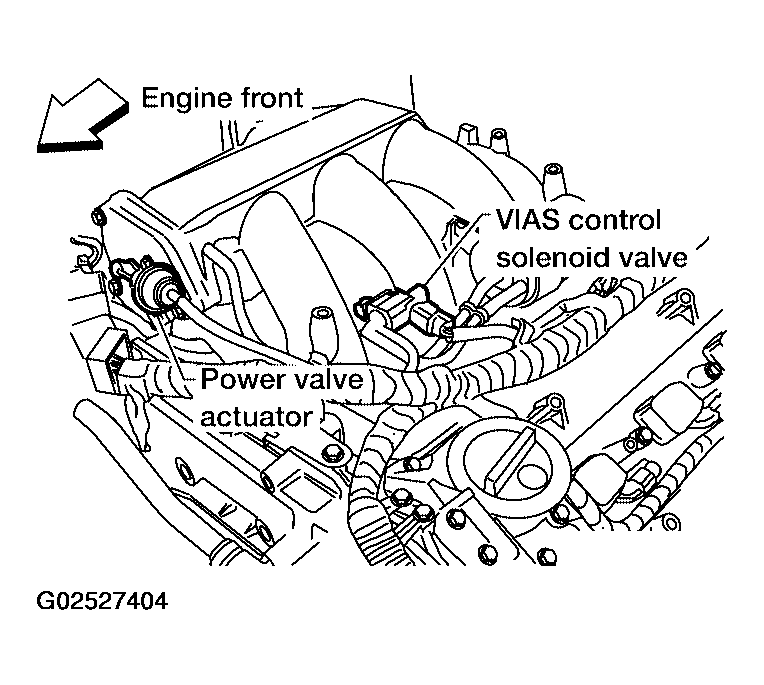

   Fig 6: Disconnecting VIAS Control Solenoid Valve Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between terminal 1 and ground with CONSULT-II or tester.

   Voltage: Battery voltage

OK or NG

• OK: GO TO  8.
• NG: GO TO 7.

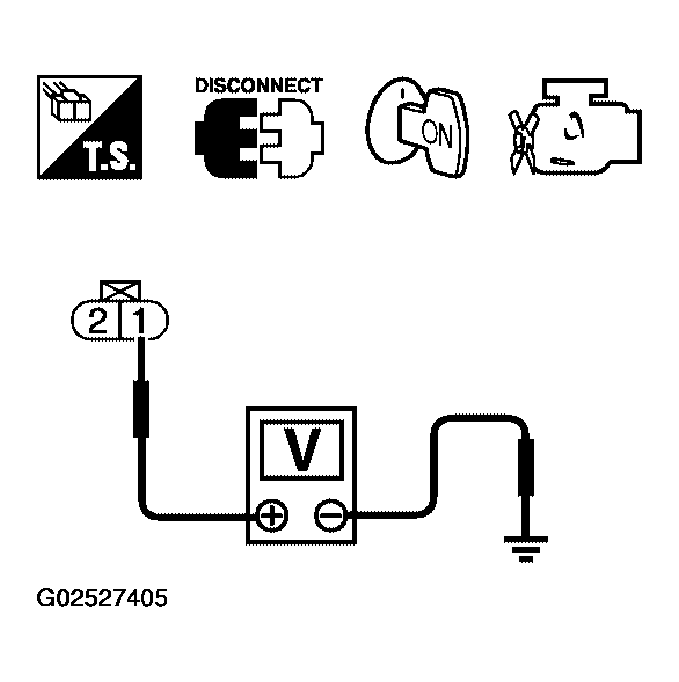

Fig 7: Checking Voltage Between Terminal 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check the following.

• Harness connectors E20, F32
• IPDM E/R connector E122
• 10A fuse
• Harness for open or short between VIAS control solenoid valve and fuse
  • : Repair open circuit or short to ground or short to power in harness or connectors.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and VIAS control solenoid valve terminal 2. Refer to WIRING DIAGRAM .

   Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

• OK: GO TO 9.
• NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ".

OK or NG

• OK: GO TO 10.
• NG: Replace VIAS control solenoid valve.

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

• : INSPECTION END
