Removal and Installation: Notes

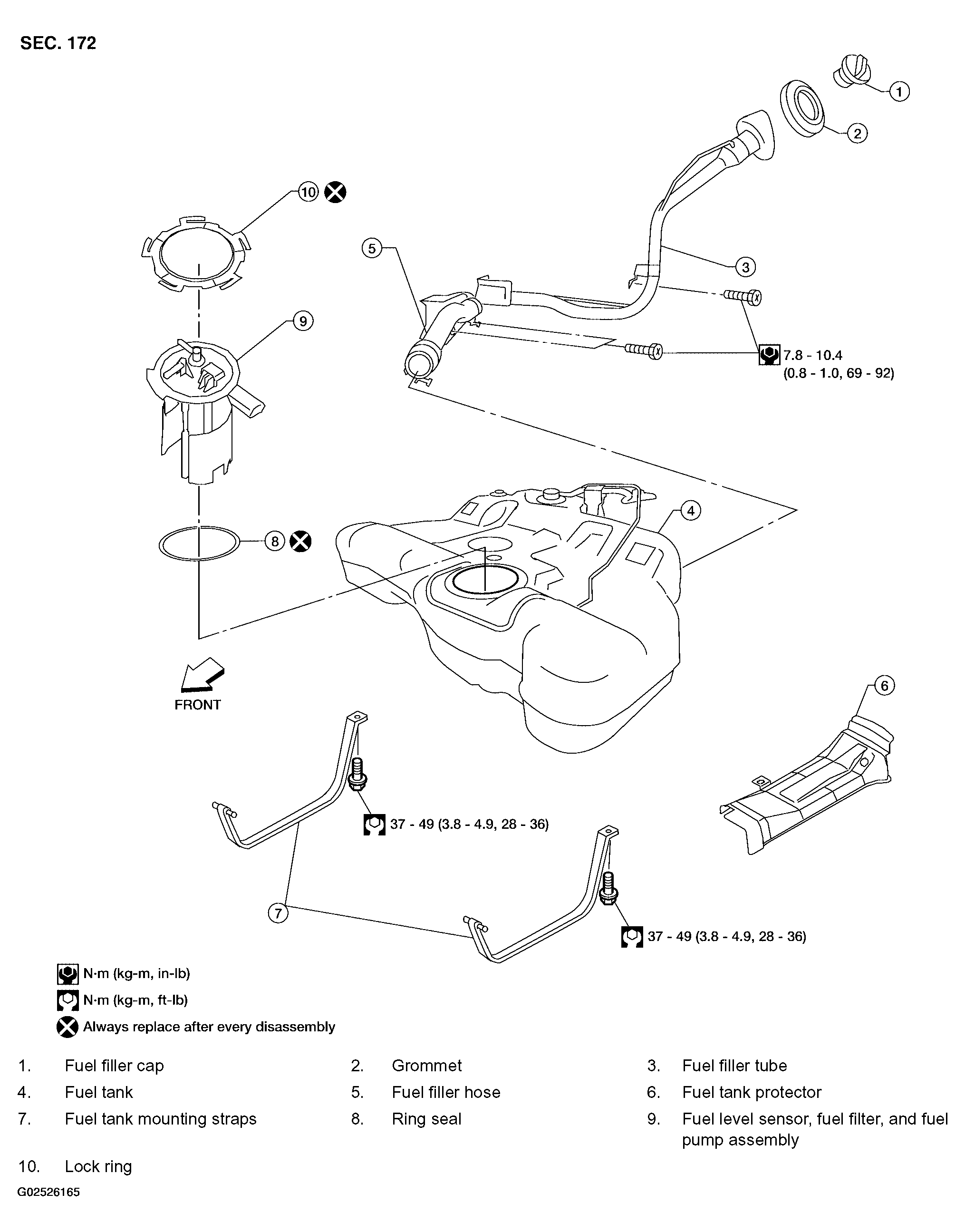

Fig 1: Identifying Fuel Tank Components All Except PZEV Models
G02526165Courtesy of NISSAN MOTOR CO., U.S.A.

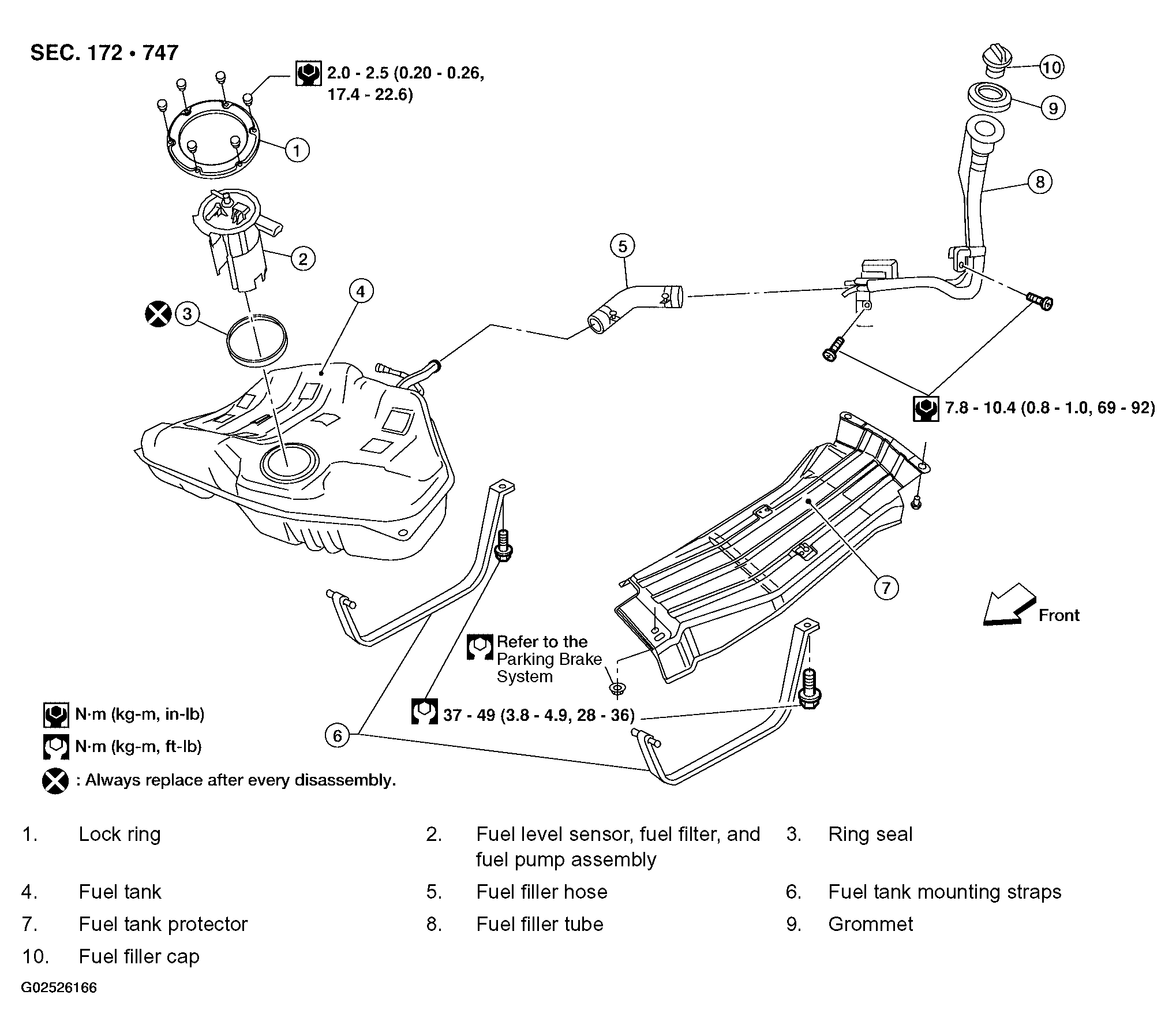

Fig 2: Identifying Fuel Tank Components PZEV Models Only
G02526166Courtesy of NISSAN MOTOR CO., U.S.A.
