Intake Valve Timing Control Solenoid Valve

Check resistance between intake valve timing control solenoid valve as follows.

TERMINALS AND RESISTANCE CONDITION

Terminal	Resistance
1 and 2	7.0 - 7.7Ω [at 20°C (68°F)]
1 or 2 and ground	Continuity should not exist

If NG, replace intake valve timing control solenoid valve.

If OK, go to next step.

Remove intake valve timing control solenoid valve.

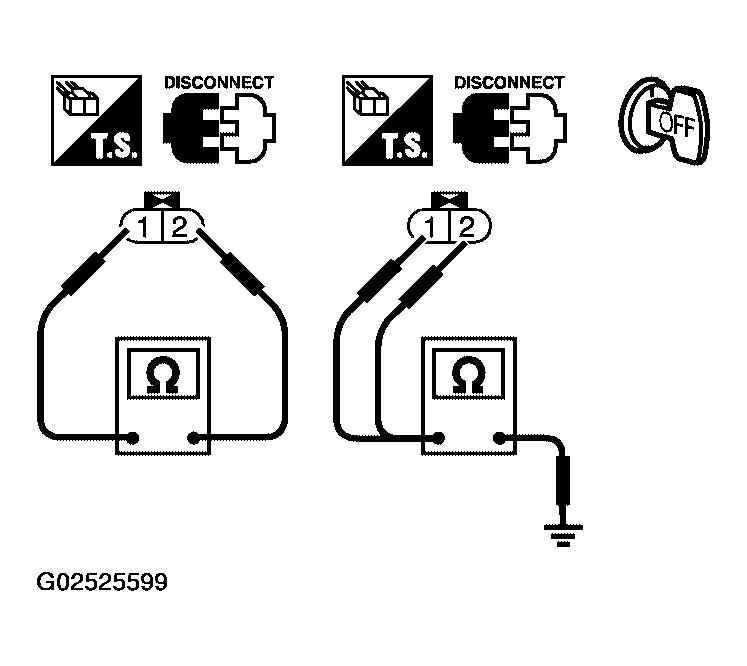

Fig 1: Checking Resistance Between Intake Valve Timing Control Solenoid Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Provide 12V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger moves as shown in the figure.
CAUTION: Do not apply 12V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve.

If NG, replace intake valve timing control solenoid valve.

NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed.

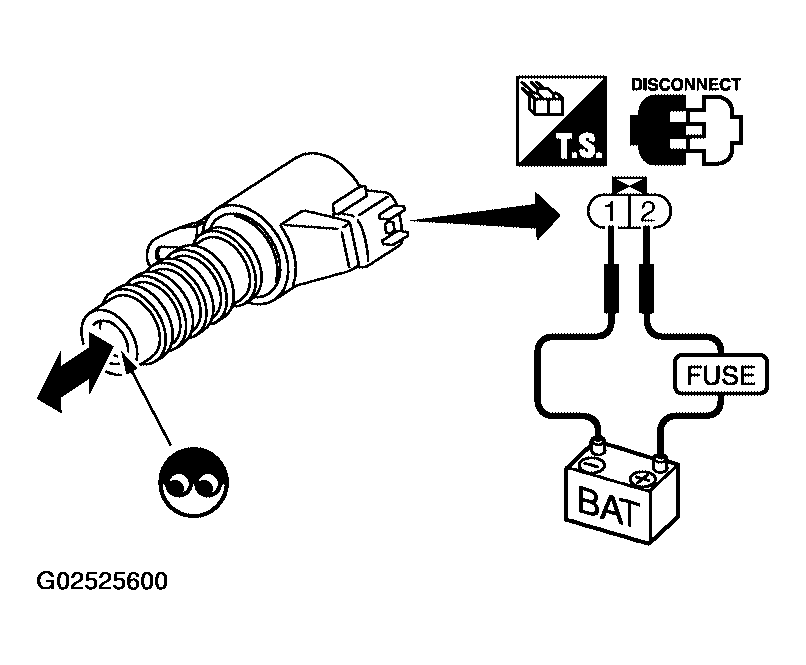

Fig 2: Providing 12V Dc Between Intake Valve Timing Control Solenoid Valve Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
