Intake Air Temperature Sensor

Check resistance between mass air flow sensor terminals 5 and 6 under the following conditions.

RESISTANCE CONDITION

Intake air temperature °C(°F)	Resistance kΩ
25(77)	1.94 - 2.06

If NG, replace mass air flow sensor (with intake air temperature sensor).

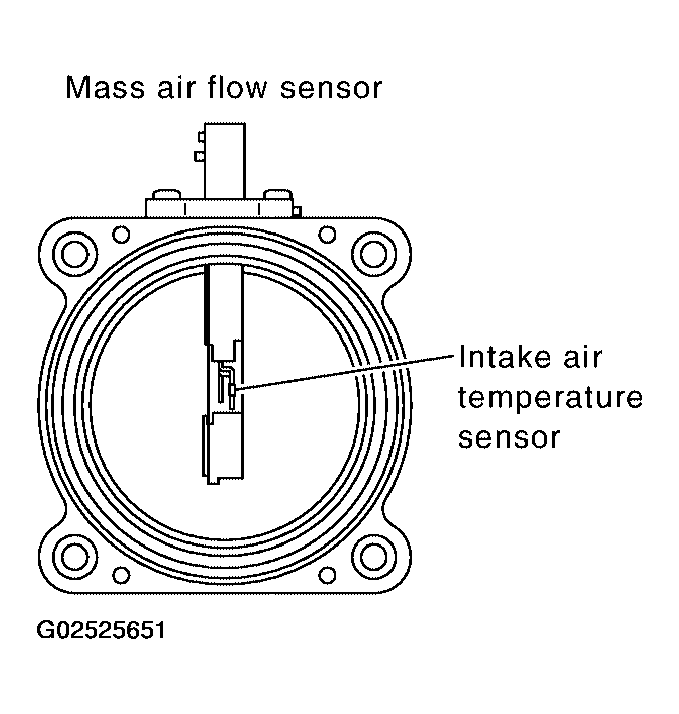

Fig 1: Locating Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

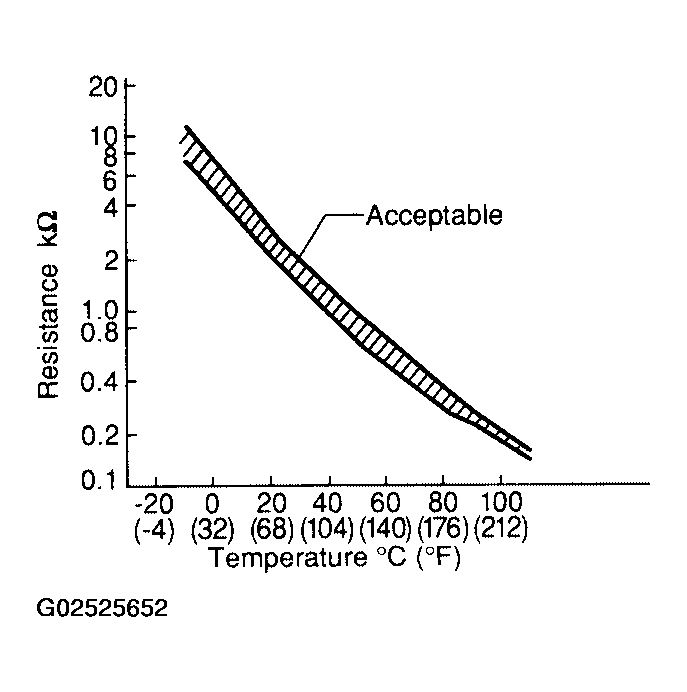

Fig 2: Resistance And Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
