Disassembly And Assembly: Assembly

Install the inner tie-rods.

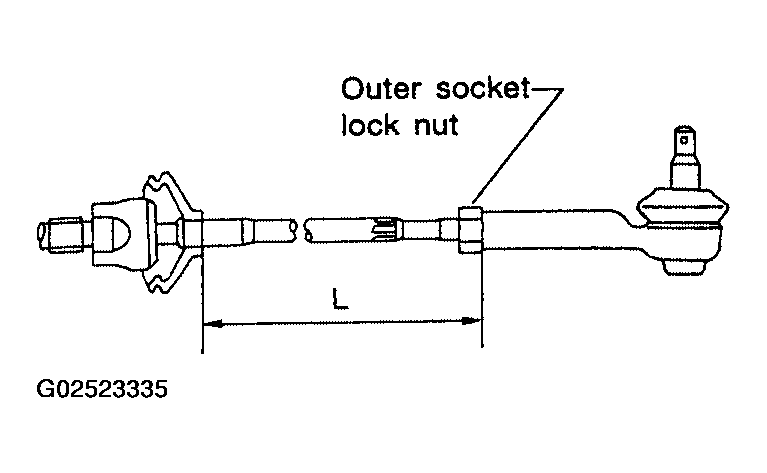

Install the outer tie-rods to the specified length and tighten the outer socket lock nut. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Outer socket lock nut : 37 - 46 N.m (3.8 - 4.7 kg-m, 27 - 34 ft-lb)

Fig 1: Installing Inner Tie-Rods
Courtesy of NISSAN MOTOR CO., U.S.A.

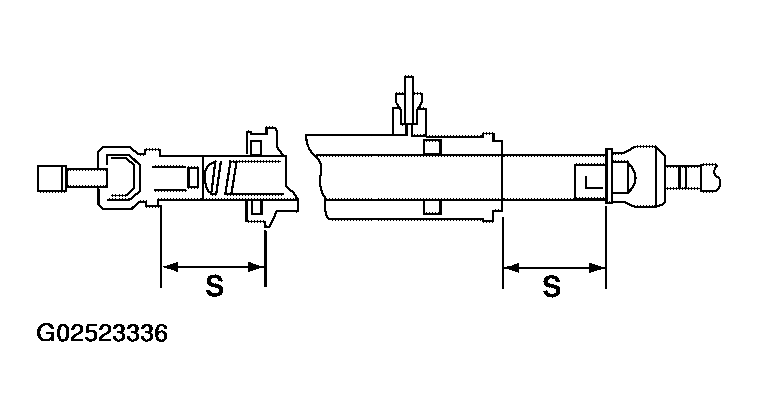

Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.

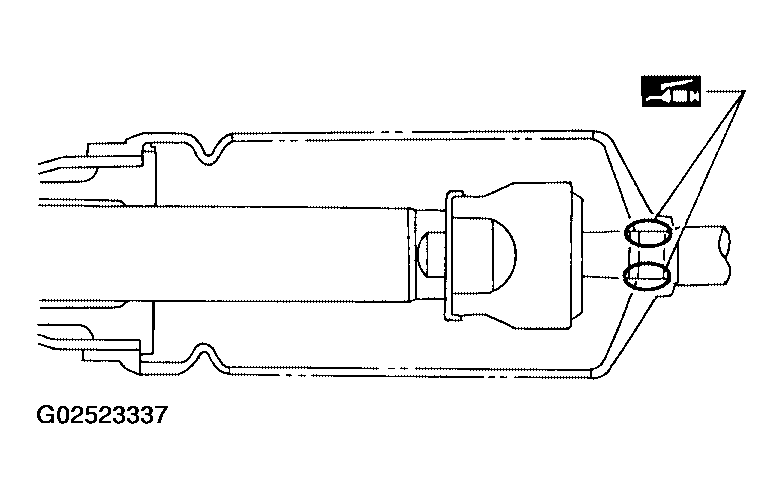

Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

Fig 3: Applying Grease Between Boot And Tie-Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

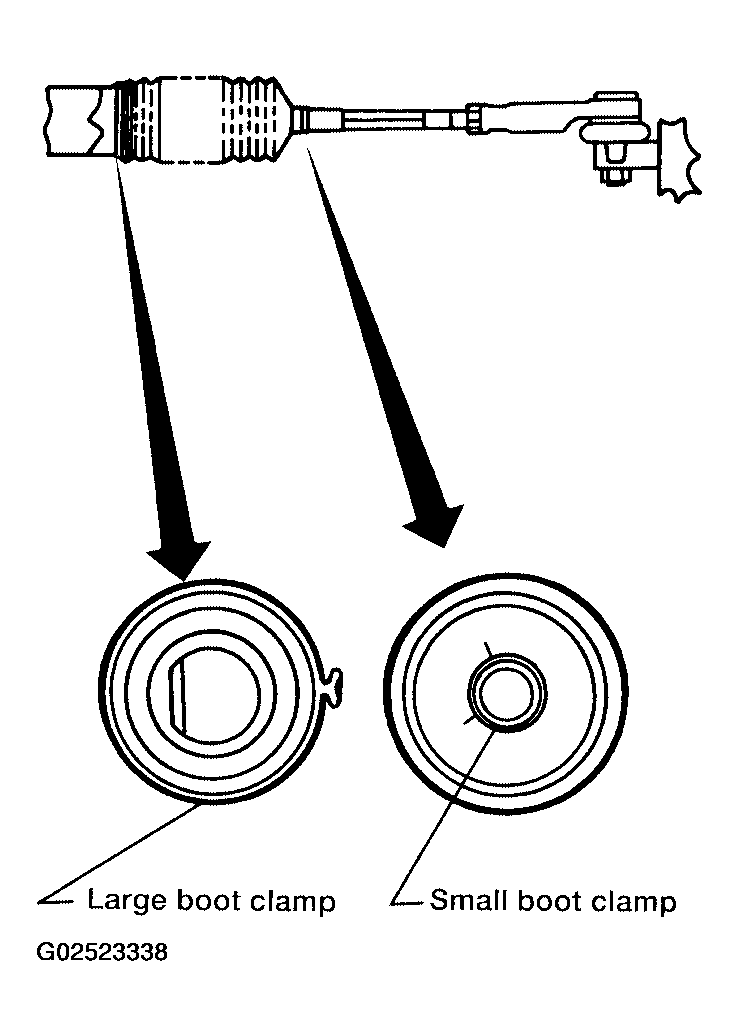

Install the boot clamps and crimp securely.

Fig 4: Installing Boot Clamps And Crimp
Courtesy of NISSAN MOTOR CO., U.S.A.
