Removal And Installation: Removal

  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the steering wheel center nut.
  4. Remove the steering wheel with the Tool.

    Tool number : ST27180001 (J25726-A)

  5. Place a piece of tape across the spiral cable so it will not be rotated out of position.

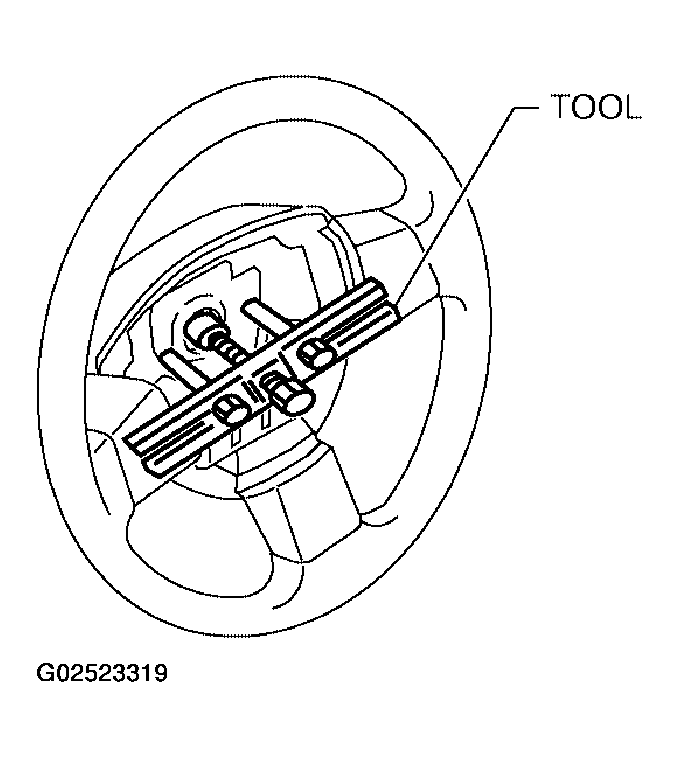

    Fig 1: Removing Steering Wheel With Tool
    G02523319Courtesy of NISSAN MOTOR CO., U.S.A.
