Method A

  1. Attach timing light to loop wire as shown.

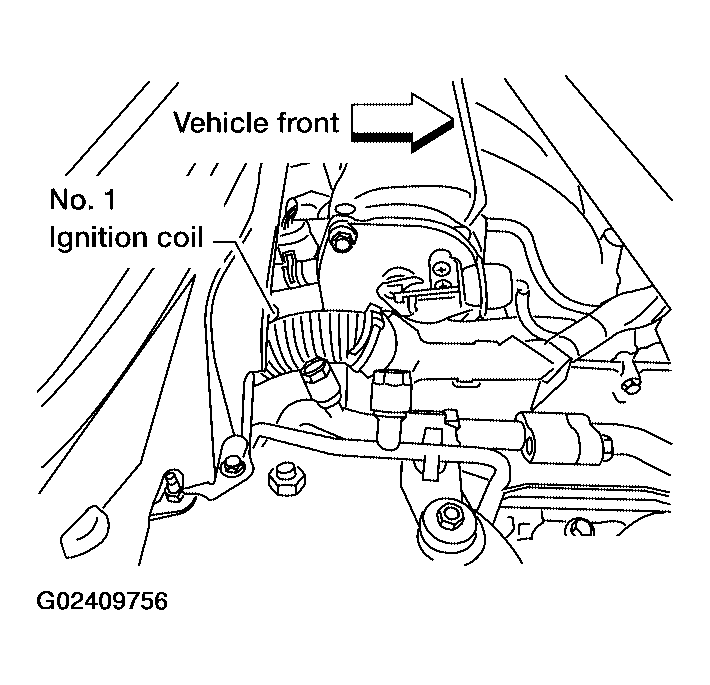

    Fig 1: Identifying Timing Light To Loop Wire
    G02409756Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

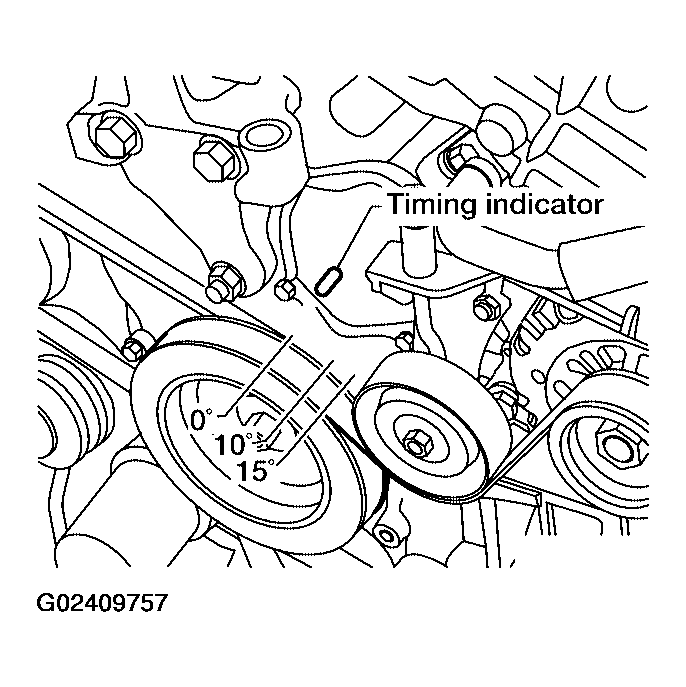

    Fig 2: Identifying Timing Indicator
    G02409757Courtesy of NISSAN MOTOR CO., U.S.A.
