Method B

  1. Remove No. 1 ignition coil.

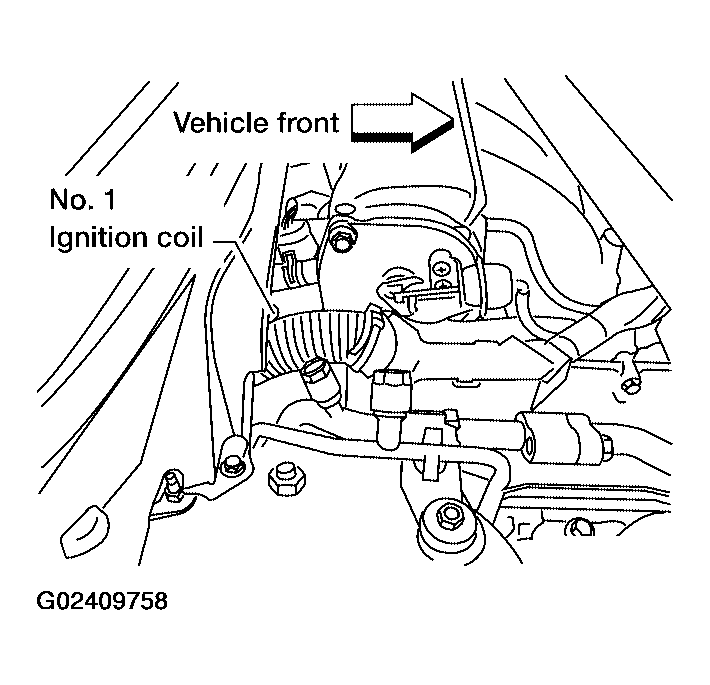

    Fig 1: Removing Ignition Coil No. 1
    G02409758Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

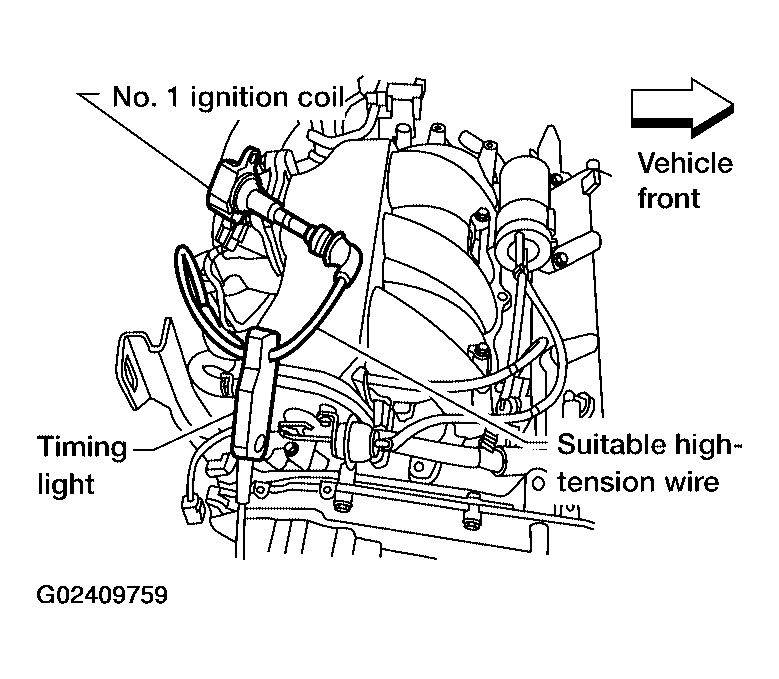

    Fig 2: Connecting Ignition Coil No. 1
    G02409759Courtesy of NISSAN MOTOR CO., U.S.A.

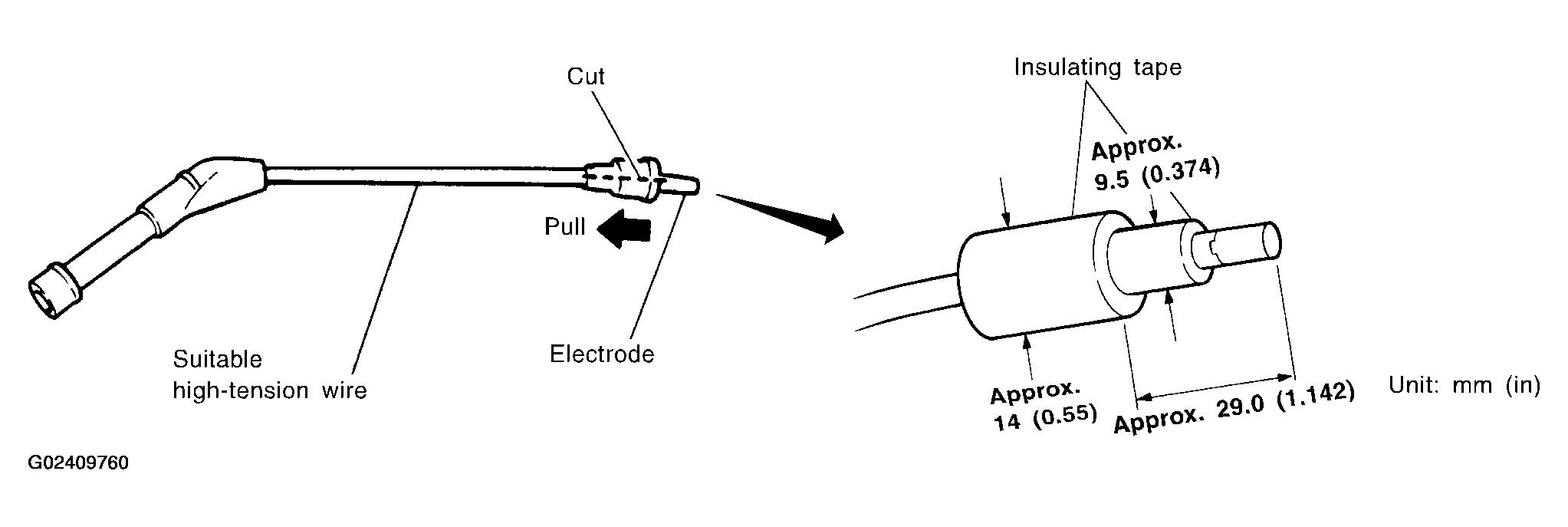

    Fig 3: Identifying Suitable High-Tension Wire
    G02409760Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

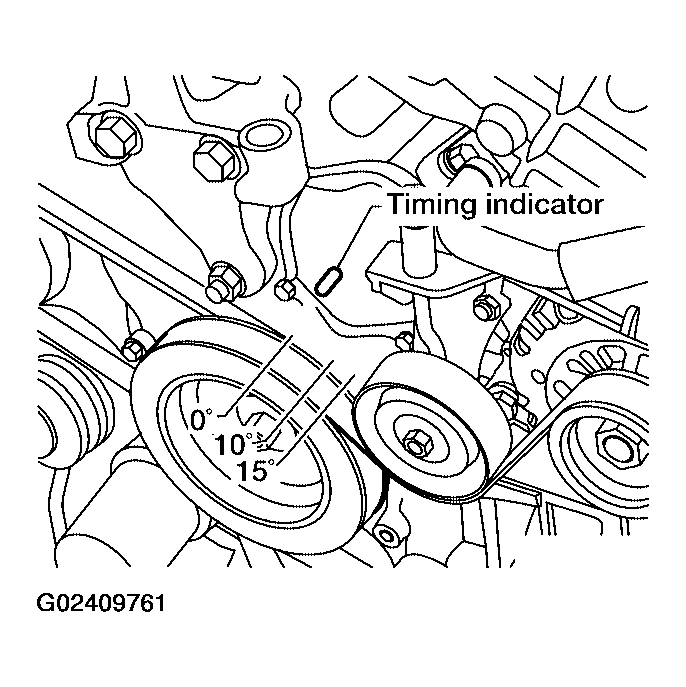

    Fig 4: Identifying Timing Indicator
    G02409761Courtesy of NISSAN MOTOR CO., U.S.A.
