With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to IDENTIFICATION INFORMATION .
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

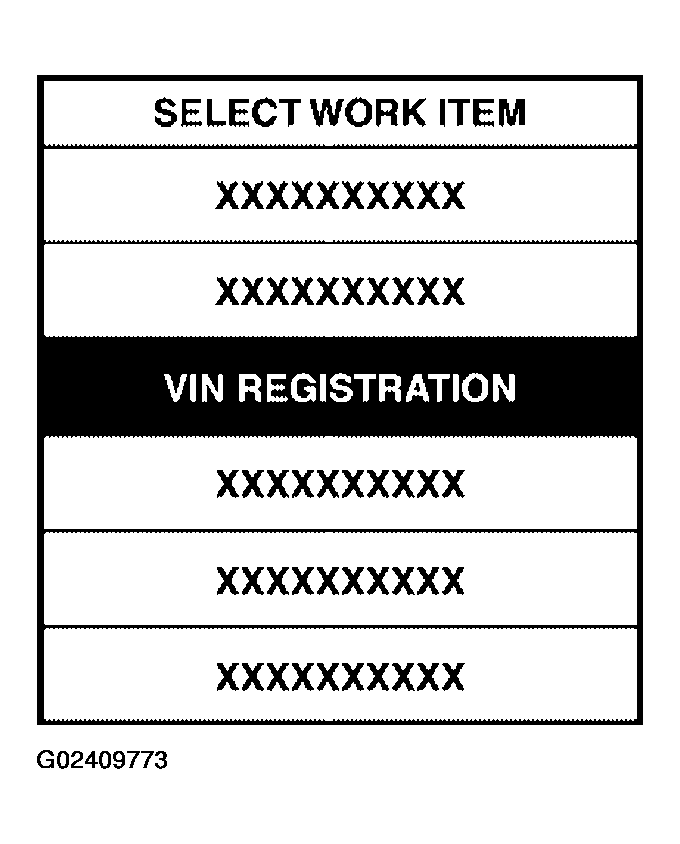

    Fig 1: VIN Registration In Work Support Mode Display
    G02409773Courtesy of NISSAN MOTOR CO., U.S.A.
