With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

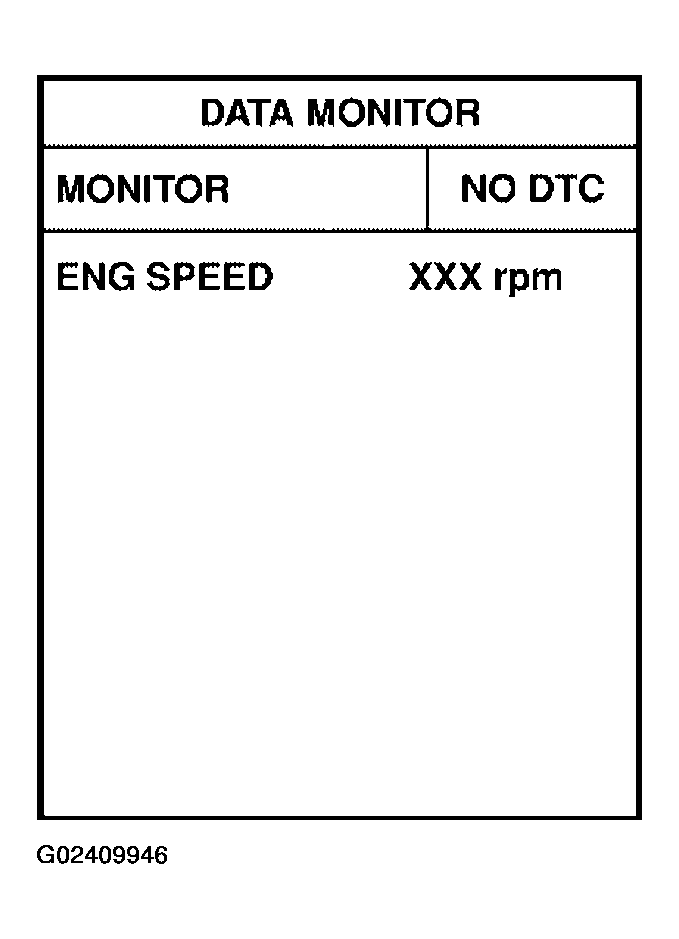

    Fig 1: Data Monitor Mode Display
    G02409946Courtesy of NISSAN MOTOR CO., U.S.A.
