Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten four ground screws on the body.

      Refer to GROUND INSPECTION .

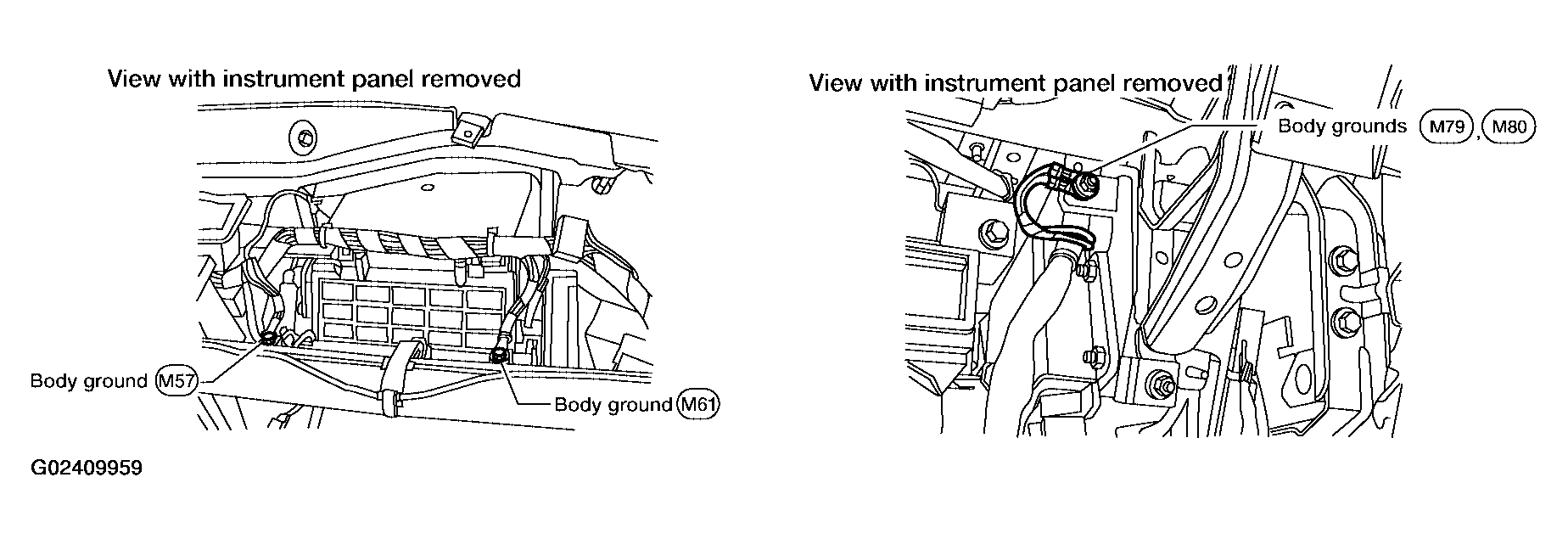

      Fig 1: Checking Ground Connections
      G02409959Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  2.
    • NG: Repair or replace ground connections.
  2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
    1. Disconnect electric throttle control actuator harness connector.
    2. Turn ignition switch ON.

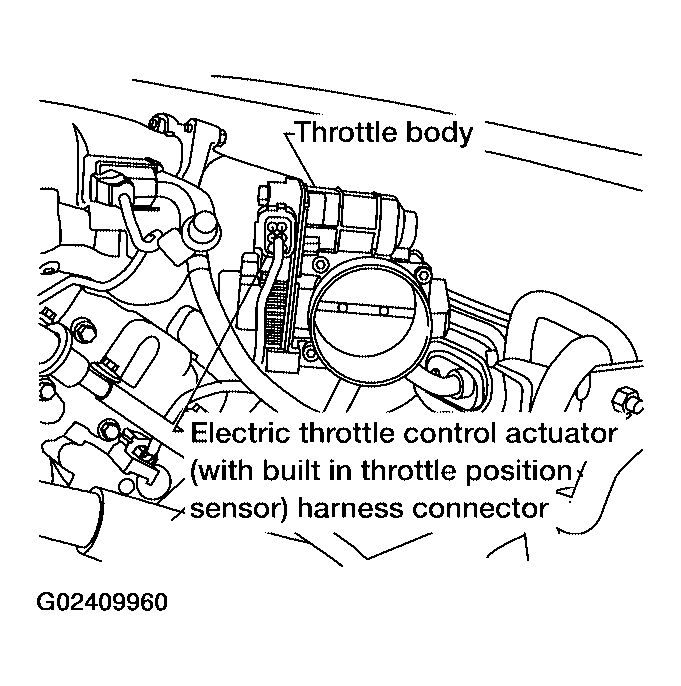

      Fig 2: Disconnecting Electric Throttle Control Actuator Harness Connector
      G02409960Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.

      Voltage: Approximately 5 V

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO  3.

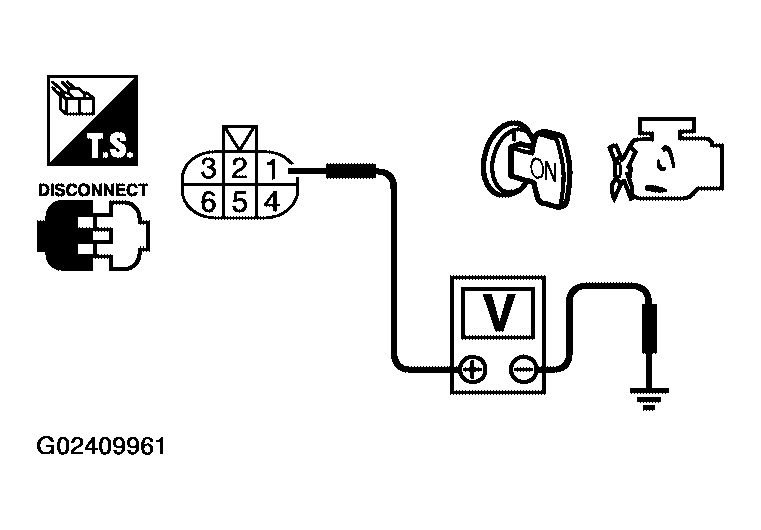

      Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 & Ground
      G02409961Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47. Refer to WIRING DIAGRAM - TPS2 .

      Continuity should exist.

    OK or NG

    • OK: GO TO  4.
    • NG: Repair or replace open circuit.
  4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III

    Check harness for short to power and short to ground, between the following terminals.

    ECM AND SENSOR TERMINAL REFERENCE

    ECM terminal Sensor terminal Reference Wiring Diagram
    47 Electric throttle control actuator terminal 1 WIRING DIAGRAM - TPS2
    91 APP sensor terminal 1 WIRING DIAGRAM - APPS3

    OK or NG

    • OK: GO TO  5.
    • NG: Repair short to ground or short to power in harness or connectors.
  5. CHECK APP SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  11.
    • NG: GO TO  6.
  6. REPLACE ACCELERATOR PEDAL ASSEMBLY
    1. Replace accelerator pedal assembly.
    2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
    3. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    4. Perform IDLE AIR VOLUME LEARNING .
    • INSPECTION END
  7. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66. Refer to WIRING DIAGRAM - TPS2 .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  8.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 2. Refer to WIRING DIAGRAM - TPS2 .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  9.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK THROTTLE POSITION SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  11.
    • NG: GO TO  10.
  10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace the electric throttle control actuator.
    2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    3. Perform IDLE AIR VOLUME LEARNING .
    • INSPECTION END
  11. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • INSPECTION END
