On Board Diagnosis Logic

Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long enough.

This is due to a leak in the seal or the thermostat stuck open.

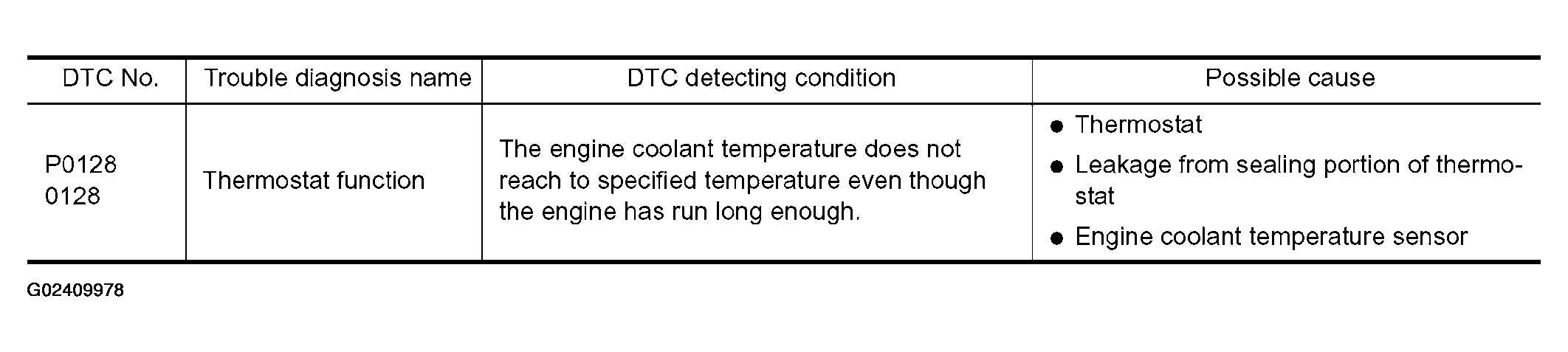

Fig 1: DTC Detection Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
