Diagnostic Procedure

  1. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check resistance between ECM terminal 15 and engine ground. Refer to WIRING DIAGRAM - KS .
      NOTE: It is necessary to use an ohmmeter which can measure more than 10 MΩ.

      Resistance: Approximately 532 - 588 kΩ [at 20°C (68°F)]

    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  4.
    • NG: GO TO  2.
  2. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
    1. Disconnect knock sensor harness connector.

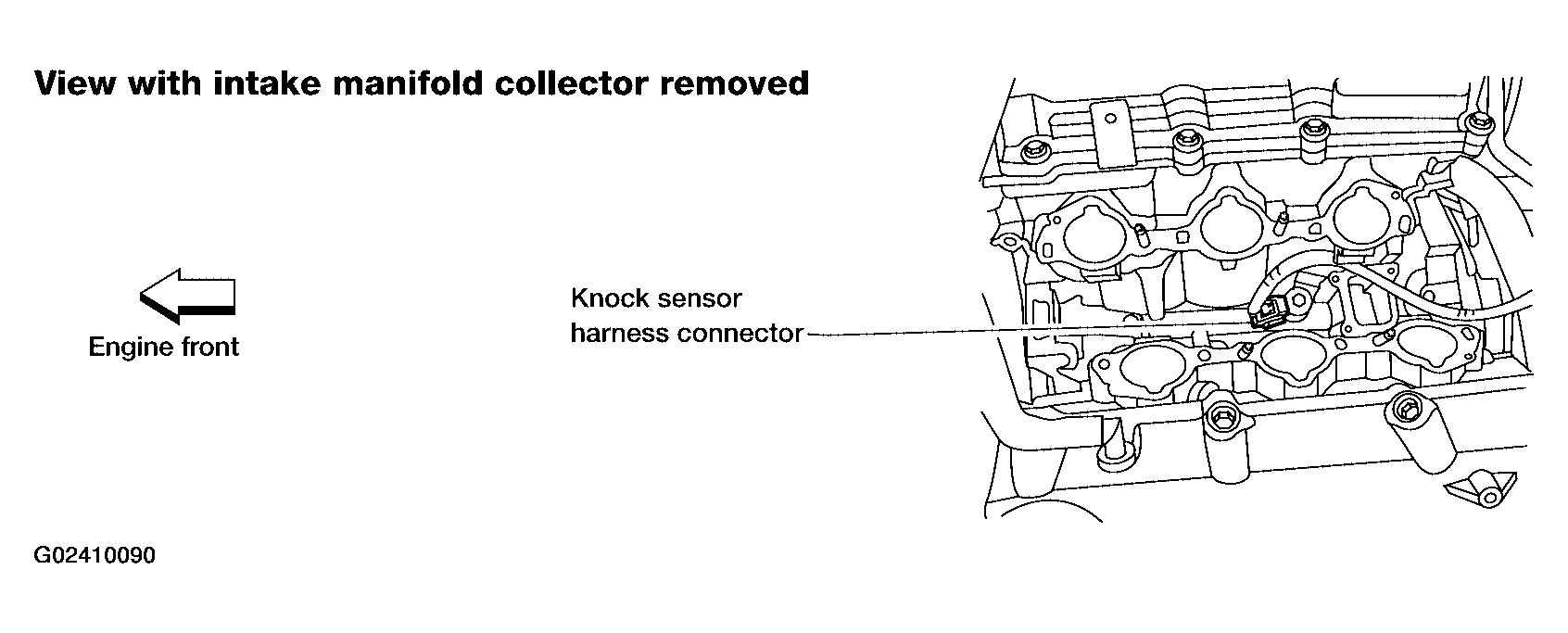

      Fig 1: Locating Knock Sensor Harness Connector
      G02410090Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check harness continuity between ECM terminal 15 and knock sensor terminal 1. Refer to WIRING DIAGRAM - KS .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  4.
    • NG: GO TO  3.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F26, F301
    • Harness for open or short between ECM and knock sensor
    • Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK KNOCK SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  5.
    • NG: Replace knock sensor.
  5. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten four ground screws on the body.

      Refer to GROUND INSPECTION .

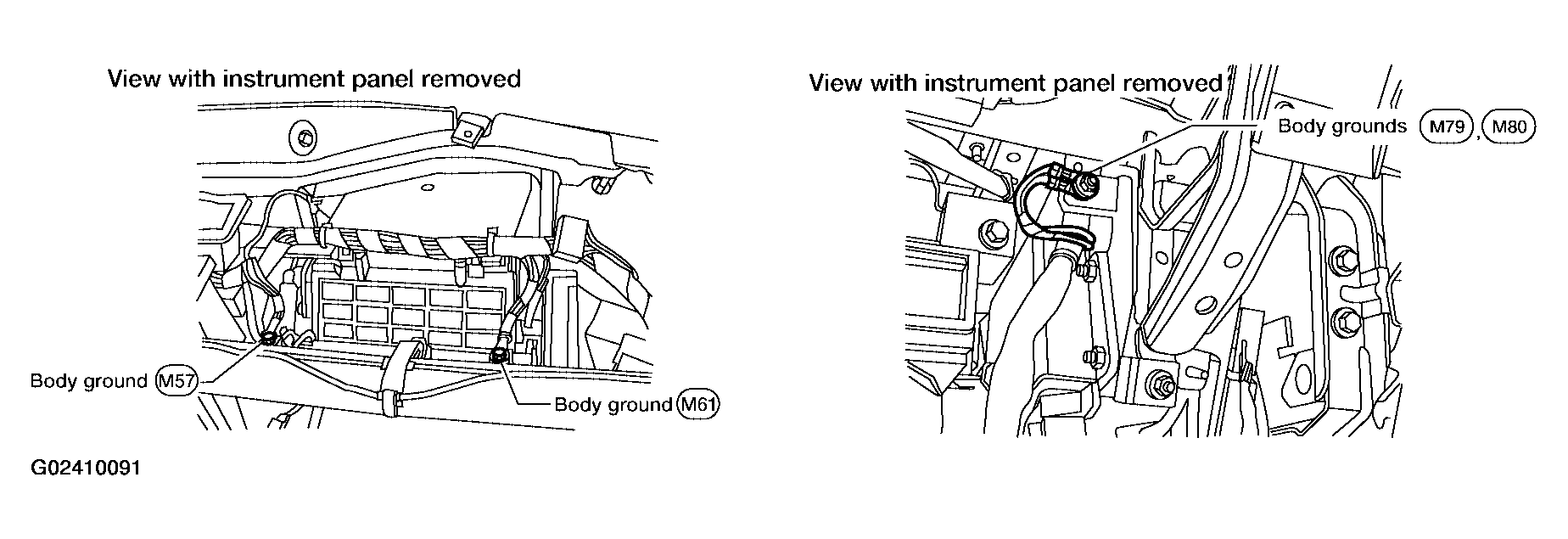

      Fig 2: Checking Body Ground Connections
      G02410091Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  6.
    • NG: Repair or replace ground connections.
  6. CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
    1. Disconnect knock sensor harness connector.
    2. Check harness continuity between knock sensor terminal 2 and ground. Refer to WIRING DIAGRAM - KS .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO  7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F26, F301
    • Harness connectors F58, M70
    • Harness for open or short between knock sensor and ground
    • Repair open circuit or short power in harness or connectors.
  8. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • INSPECTION END
