Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten four ground screws on the body. Refer to GROUND INSPECTION .

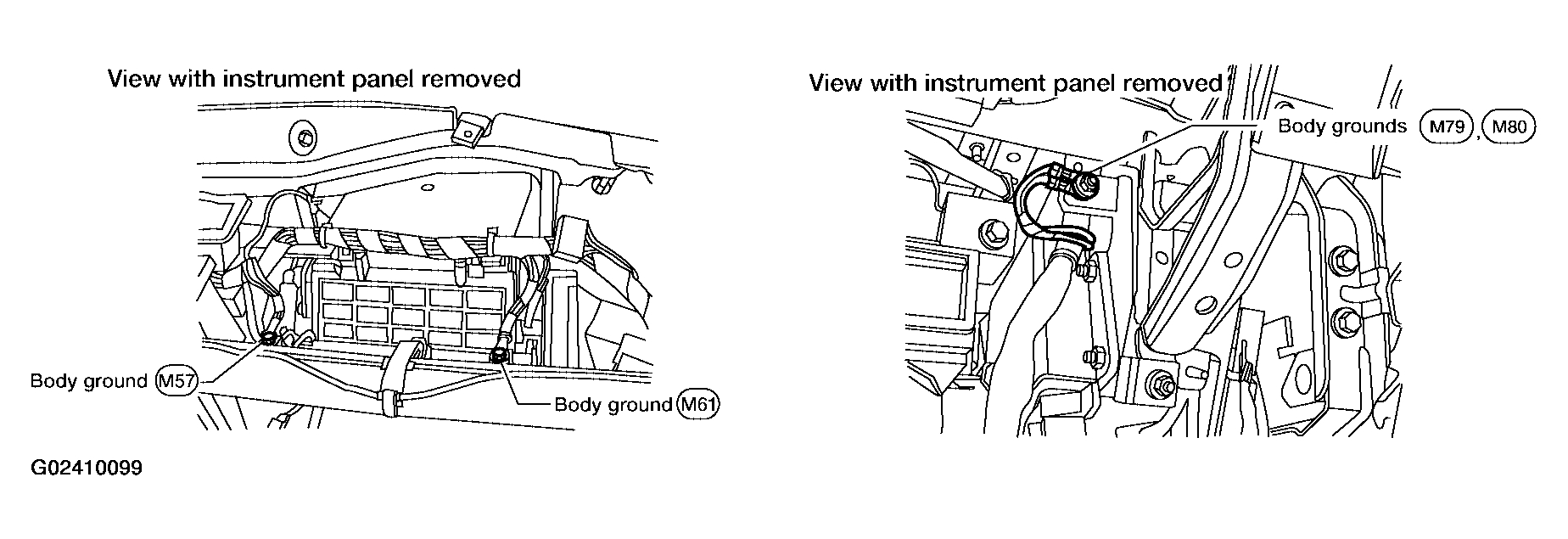

      Fig 1: Checking Ground Connections
      G02410099Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  2.
    • NG: Repair or replace ground connections.
  2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
    1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.

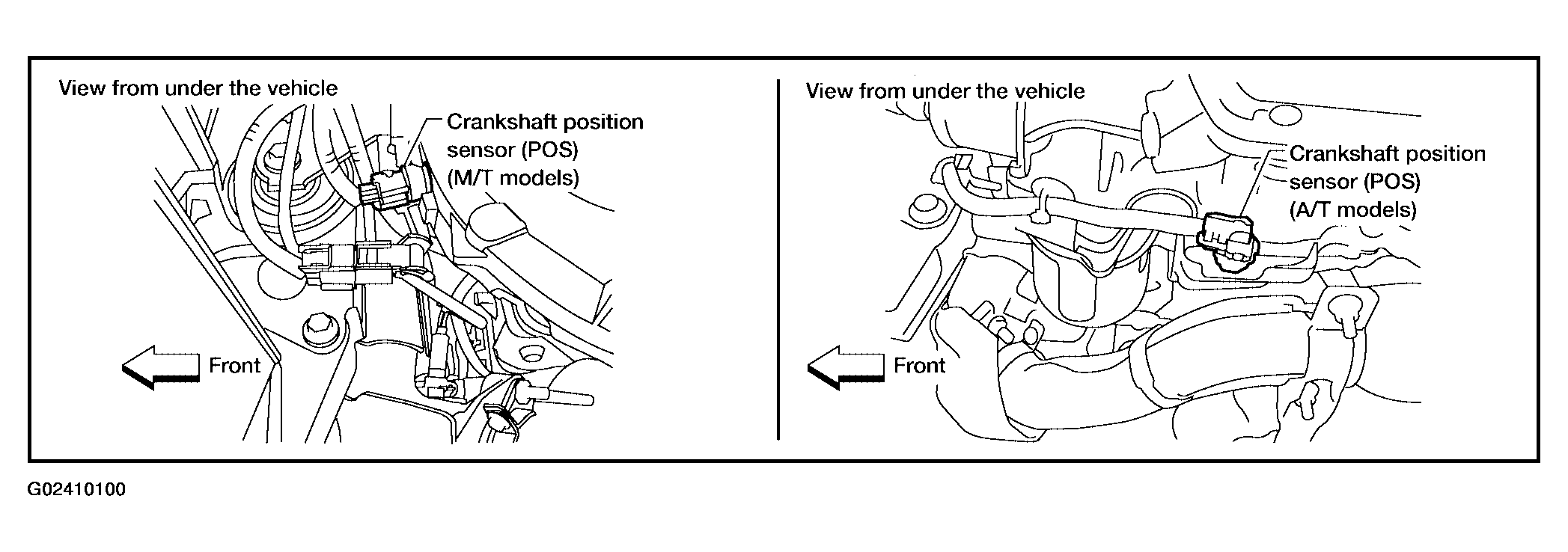

      Fig 2: Disconnecting Crankshaft Position (CKP) Sensor (POS) Harness Connector
      G02410100Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Turn ignition switch ON.
    3. Check voltage between CKP sensor (POS) terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  4.
    • NG: GO TO  3.

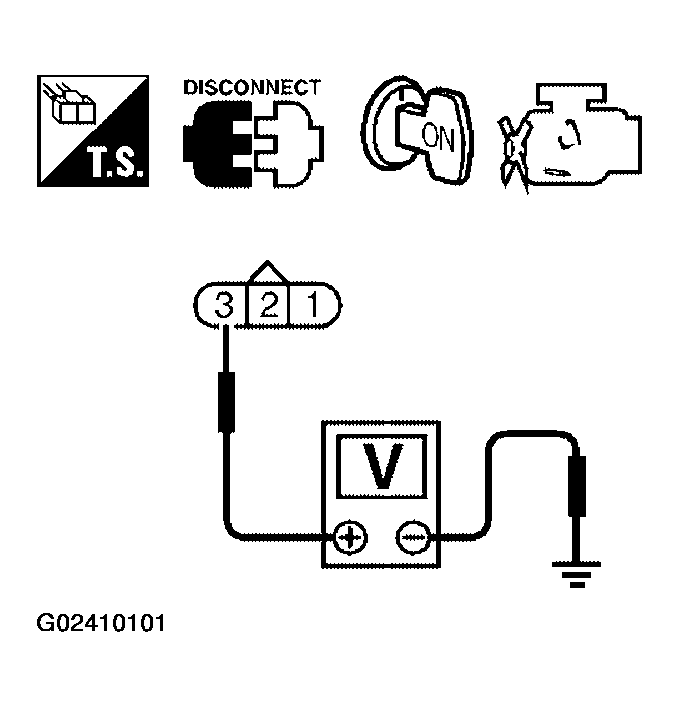

      Fig 3: Checking Voltage Between CKP Sensor (POS) Terminal 3 & Ground
      G02410101Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F58, M70
    • Harness connectors E131, M92
    • Harness for open or short between crankshaft position sensor (POS) and ECM
    • Harness for open or short between crankshaft position sensor (POS) and IPDM E/R
    • : Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between CKP sensor (POS) terminal 1 and ground. Refer to WIRING DIAGRAM - POS .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    • OK: GO TO  6.
    • NG: GO TO  5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F58, M70
    • Harness for open or short between crankshaft position sensor (POS) and ground
    • Repair open circuit or short to power in harness or connectors.
  6. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to WIRING DIAGRAM - POS .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK CRANKSHAFT POSITION SENSOR (POS)

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  8.
    • NG: Replace crankshaft position sensor (POS).
  8. CHECK GEAR TOOTH

    Visually check for chipping signal plate gear tooth.

    OK or NG

    • OK: GO TO  9.
    • NG: Replace the signal plate.
  9. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • INSPECTION END
