Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten four ground screws on the body.

      Refer to GROUND INSPECTION .

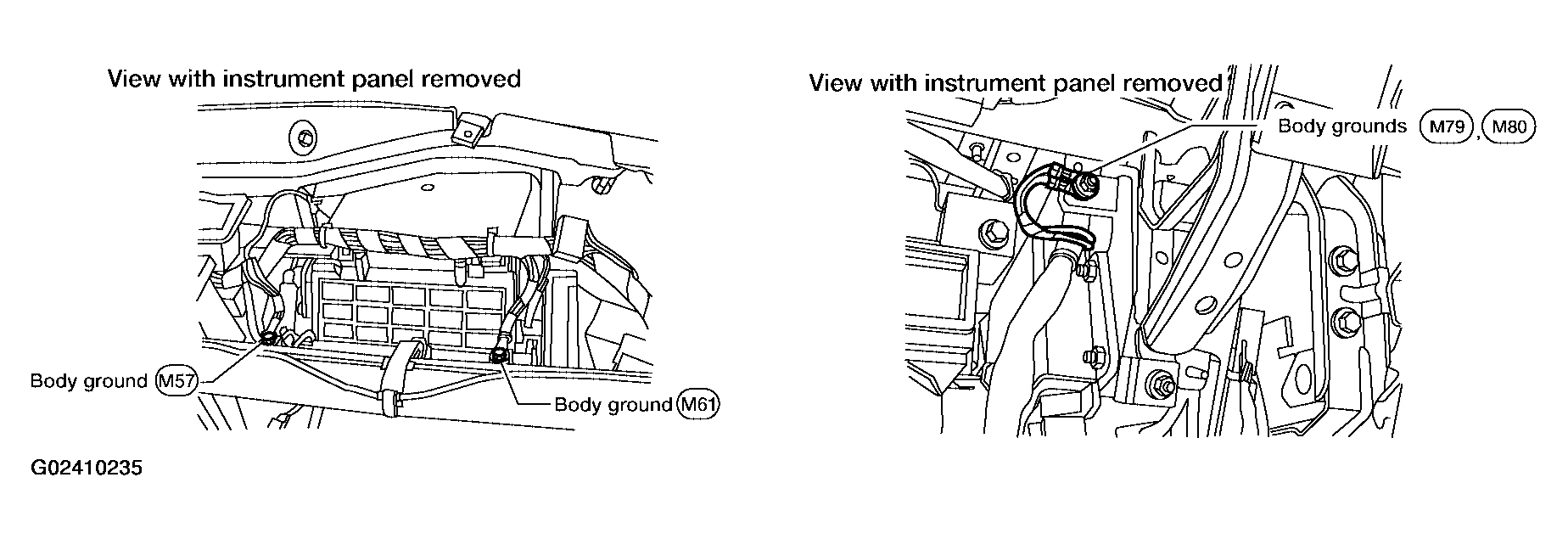

      Fig 1: Checking Ground Connections
      G02410235Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  2.
    • NG: Repair or replace ground connections.
  2. CHECK CONNECTOR
    1. Disconnect EVAP control system pressure sensor harness connector.

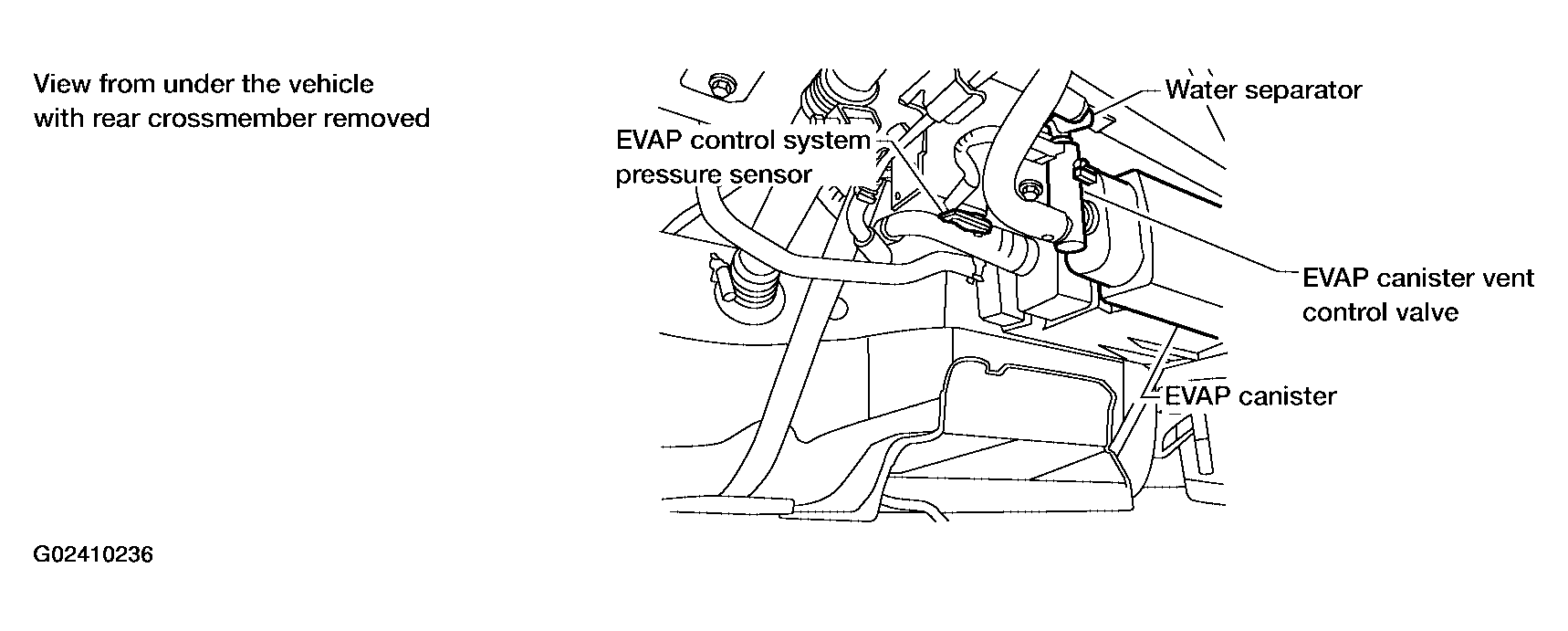

      Fig 2: Disconnecting EVAP Control System Pressure Sensor Harness Connector
      G02410236Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check sensor harness connector for water.

      Water should not exist.

    OK or NG

    • OK: GO TO  3.
    • NG: Repair or replace harness connector.
  3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO  4.

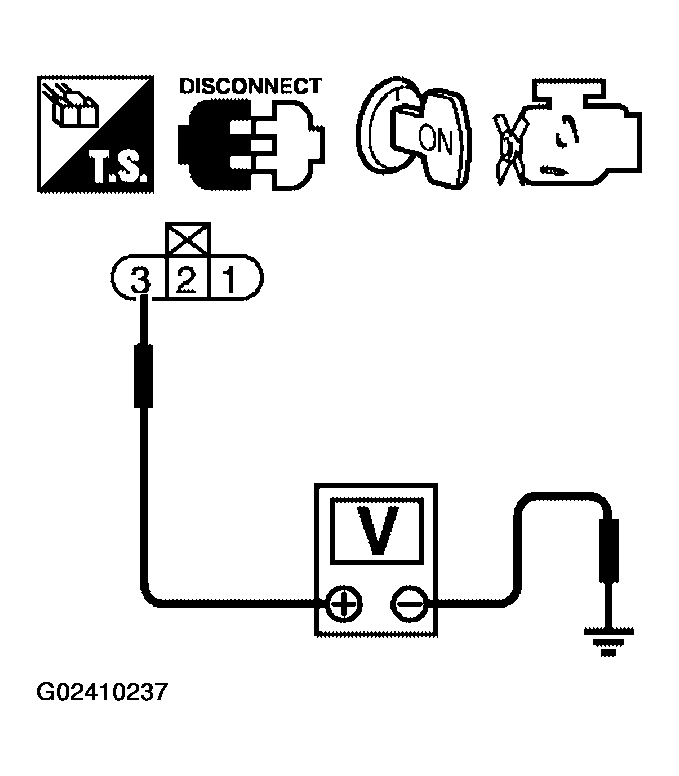

      Fig 3: Checking Voltage Between EVAP Control System Pressure Sensor Terminal 3 & Ground
      G02410237Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B101, M84
    • Harness connectors M71, F59
    • Harness for open or short between EVAP control system pressure sensor and ECM
    • : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 67.

      Refer to WIRING DIAGRAM - PRE/SE .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO  6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B101, M84
    • Harness connectors M71, F59
    • Harness for open or short between EVAP control system pressure sensor and ECM
    • Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.

      Refer to WIRING DIAGRAM - PRE/SE .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  9.
    • NG: GO TO  8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B101, M84
    • Harness connectors M71, F59
    • Harness for open or short between EVAP control system pressure sensor and ECM
    • : Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  10.
    • NG: Replace EVAP control system pressure sensor.
  10. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • INSPECTION END
