With Consult-II
- Start engine (TCS switch or VDC switch OFF).
- Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
- If NG, go to DIAGNOSTIC PROCEDURE .
- If OK, go to following step.

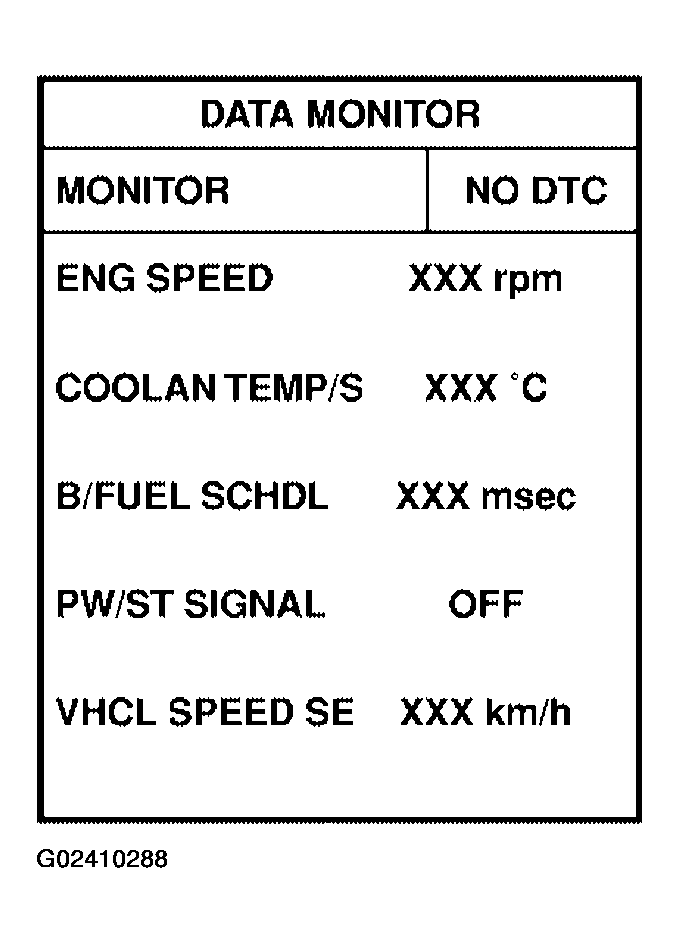

- Select "DATA MONITOR" mode with CONSULT-II.
- Warm engine up to normal operating temperature.
- Maintain the following conditions for at least 60 consecutive seconds.SPECIFIED CONDITIONS
ENG SPEED 1, 800 - 6, 000 rpm (M/T models) ENG SPEED 1, 600 - 6, 000 rpm (A/T models) COOLAN TEMP/S More than 70°C (158°F) B/FUEL SCHDL 5.3 - 31.8 msec (M/T models) B/FUEL SCHDL 5.5 - 31.8 msec (A/T models) Selector lever Except P or N position (A/T models) Selector lever Except Neutral position (M/T models) PWST SIGNAL OFF - If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
