Component Description

The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The ECM controls the engine.

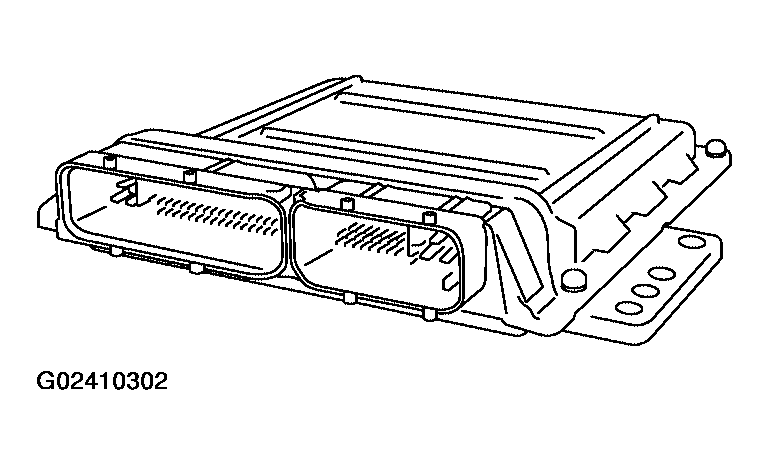

Fig 1: Engine Control Module (ECM)

Courtesy of NISSAN MOTOR CO., U.S.A.
