Cooling Fan Motor

The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.

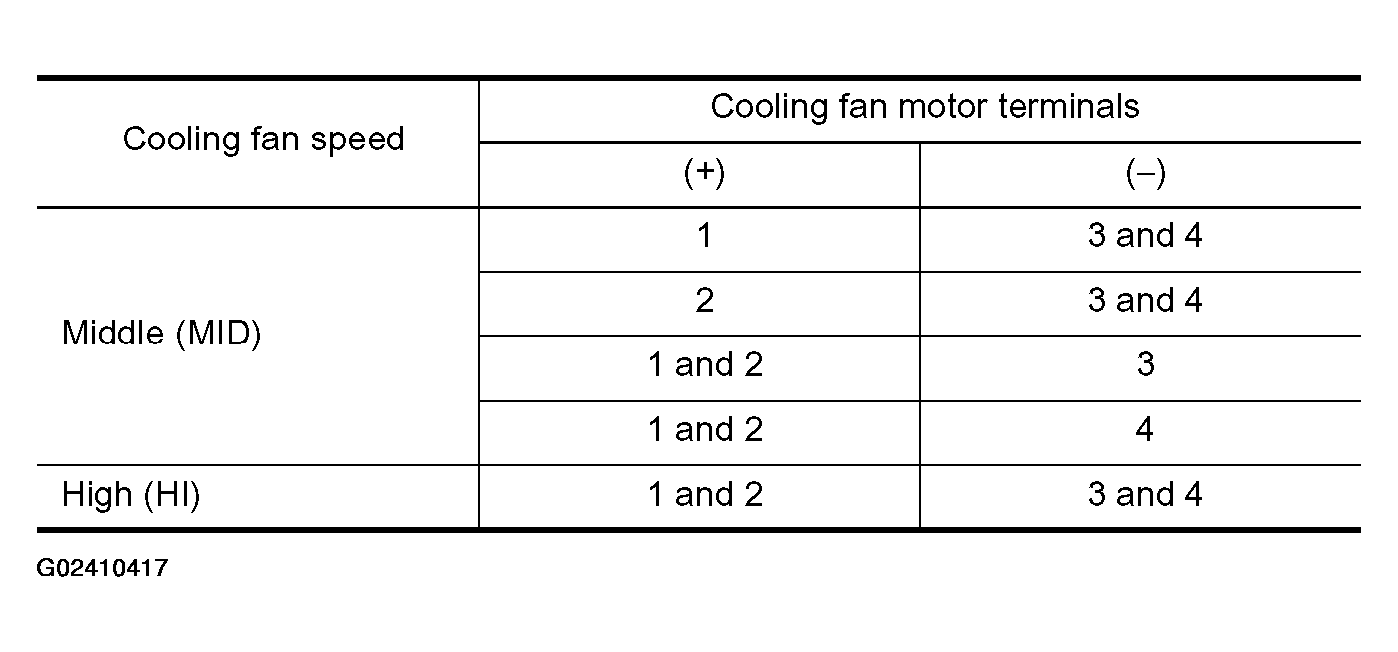

Fig 1: Cooling Fan Motor Current Flow Chart
G02410417Courtesy of NISSAN MOTOR CO., U.S.A.

The cooling fan operates at low (LOW) speed when cooling fan motors 1 and 2 are circuited in series under middle speed condition.
