Procedure A
- CHECK IPDM E/R POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect IPDM E/R harness connectors E123.

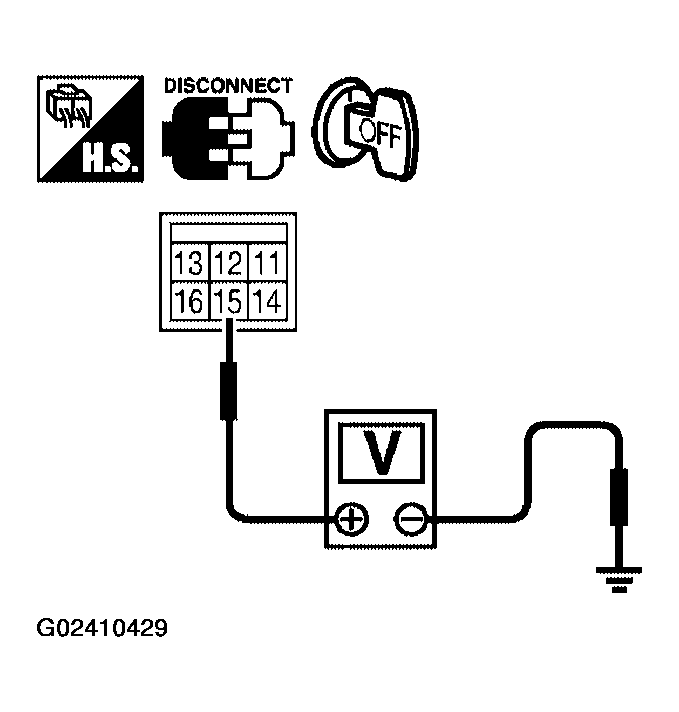

- Check voltage between IPDM E/R terminal 15 and ground with CONSULT-II or tester.
Voltage: Battery voltage
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- 40A fusible link
- Harness for open or short between IPDM E/R and battery
- Repair open circuit or short to ground in harness or connectors.
- CHECK IPDM E/R GROUND CIRCUIT
- Turn ignition switch OFF.
- Check harness continuity between IPDM E/R terminal 16 and ground. Refer to
WIRING DIAGRAM - COOL/F .
Continuity should exist.
- Also check harness for short to power.
OK or NG
- OK: GO TO 4.
- NG: Repair open circuit or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-1 CIRCUIT-II

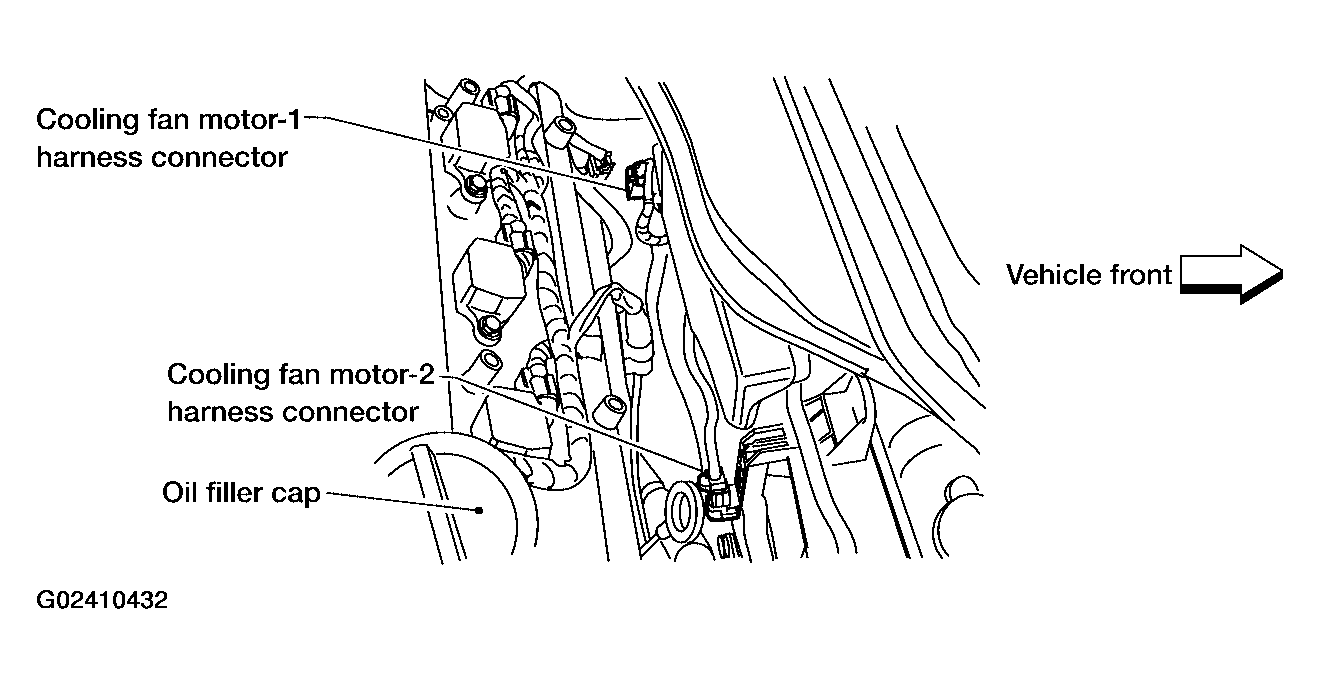

- Disconnect cooling fan motor-1 harness connector.

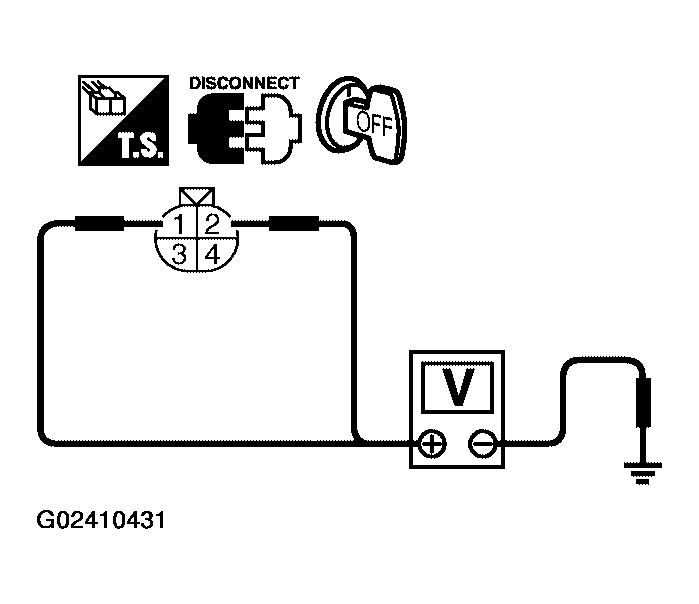

- Check voltage between cooling fan motor-1 terminals 1, 2 and ground with CONSULT-II or tester.
Voltage: Battery voltage
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- 40A fusible link
- Harness for open or short between cooling fan motor-1 and battery
- : Repair open circuit or short to ground in harness or connectors.
- CHECK COOLING FAN MOTOR-1 CIRCUIT-II
- Turn ignition switch OFF.
- Disconnect IPDM E/R harness connector E118.
- Check harness continuity between the following terminals. Cooling fan motor-1 terminal 3 and IPDM E/R terminal 8 Cooling fan motor-1 terminal 4 and IPDM E/R terminals 11, 12 Refer to
WIRING DIAGRAM - COOL/F .
Continuity should exist.
- Also check harness for short to ground or short to power.
OK or NG
- OK: GO TO 7.
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-2 CIRCUIT-I
- Turn ignition switch OFF.
- Disconnect cooling fan motor-2 harness connector.
- Check harness continuity between cooling fan motor-2 terminals 3, 4 and ground. Refer to
WIRING DIAGRAM - COOL/F .
Continuity should exist.
- Also check harness for short to power.
OK or NG
- OK: GO TO 8.
- NG: Repair open circuit or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-2 CIRCUIT-II
- Check harness continuity between the following terminals. Cooling fan motor-2 terminal 1 and IPDM E/R terminal 13 Cooling fan motor-2 terminal and IPDM E/R terminals 10, 14 Refer to
WIRING DIAGRAM - COOL/F .
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK: GO TO 9.
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
- Check harness continuity between the following terminals. Cooling fan motor-2 terminal 1 and IPDM E/R terminal 13 Cooling fan motor-2 terminal and IPDM E/R terminals 10, 14 Refer to
WIRING DIAGRAM - COOL/F .
- CHECK COOLING FAN MOTORS
Refer to COMPONENT INSPECTION .
OK or NG
- OK: GO TO 10.
- NG: Replace cooling fan motors.
- CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
OK or NG
- OK: Replace IPDM E/R. Refer to IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) .
- NG: Repair or replace harness or connector.
