Main 12 Causes of Overheating

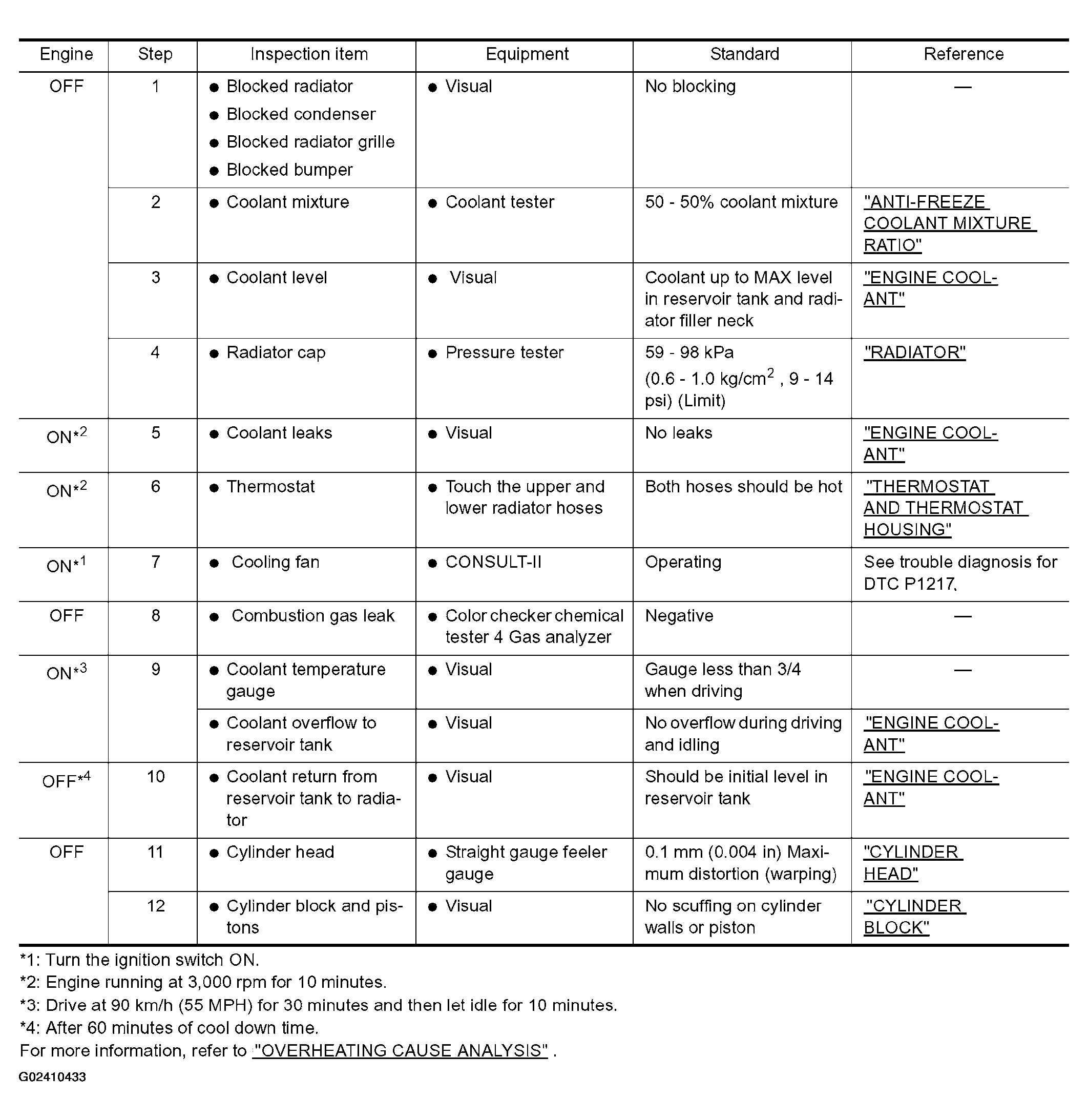

Fig 1: Overheating Causes Chart
G02410433Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to OVERHEATING CAUSE ANALYSIS .
