With GST

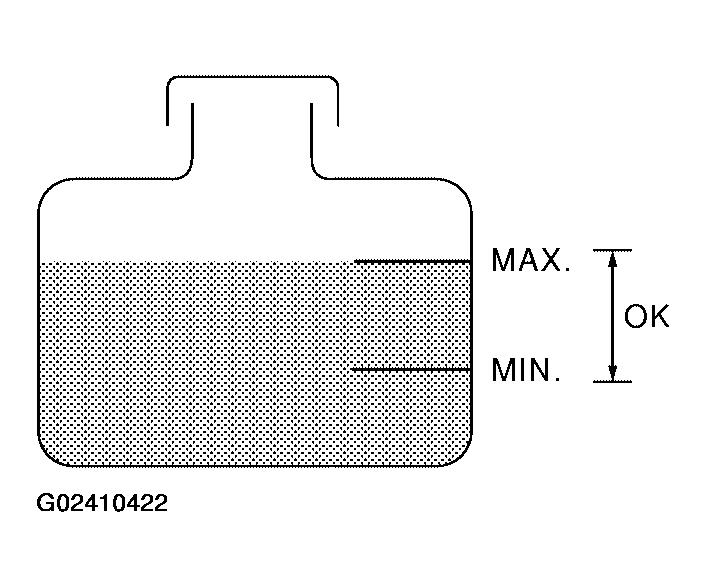

- Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to
DIAGNOSTIC PROCEDURE .
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to
DIAGNOSTIC PROCEDURE .
- Perform IPDM E/R auto active test and check cooling fan motors operation, refer to
Auto Active Test
.
- If NG, go to
DIAGNOSTIC PROCEDURE .
Courtesy of NISSAN MOTOR CO., U.S.A.
