Diagnostic Procedure
- CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.

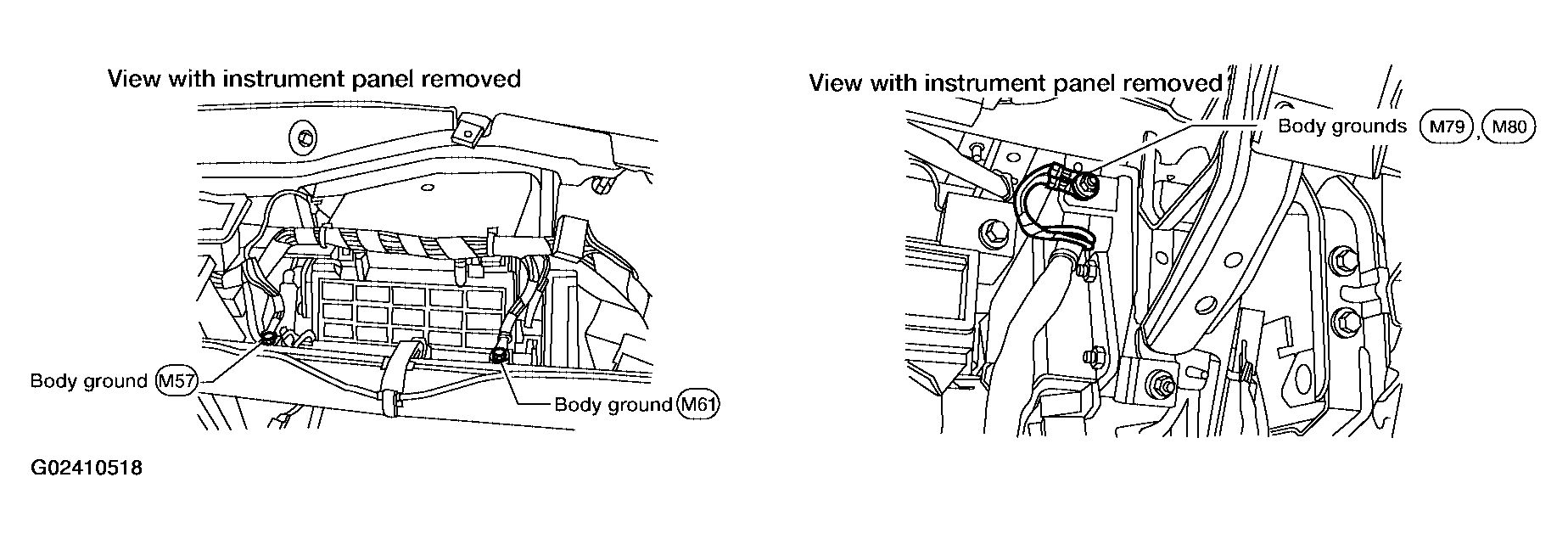

- Loosen and retighten four ground screws on the body. Refer to GROUND INSPECTION .
OK or NG
- OK: GO TO 2.
- NG: Repair or replace ground connections.
- CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

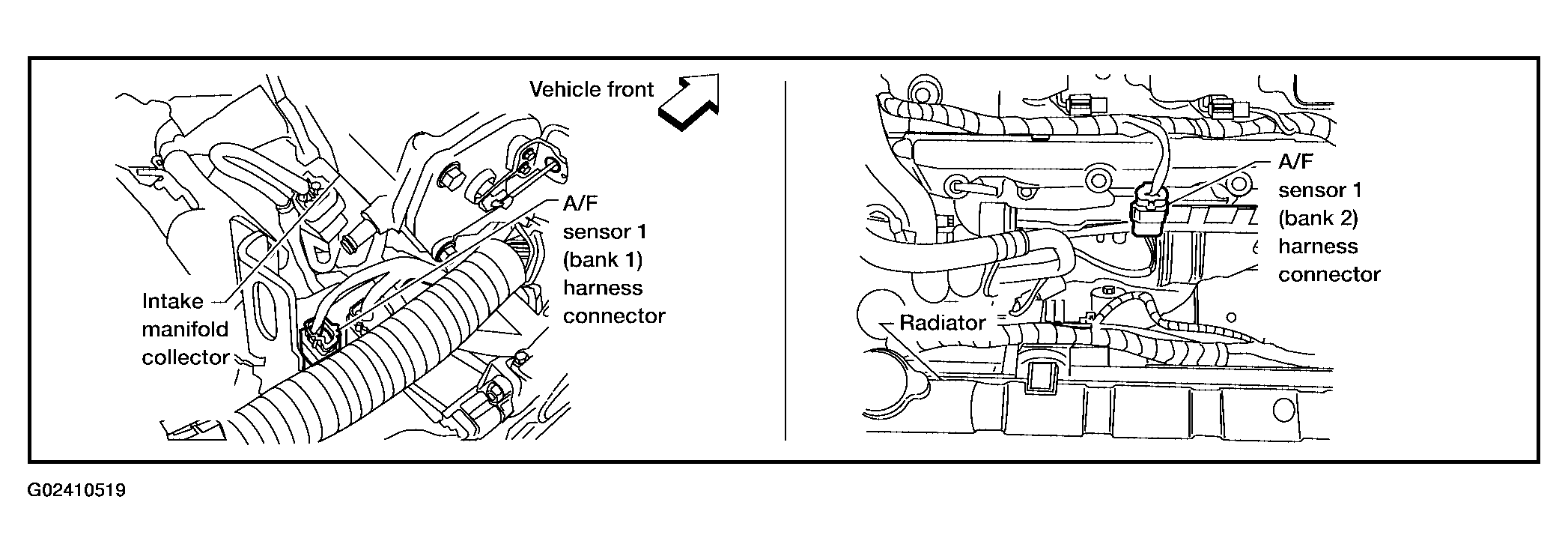

- Disconnect air fuel ratio (A/F) sensor 1 harness connector.
- Turn ignition switch ON.

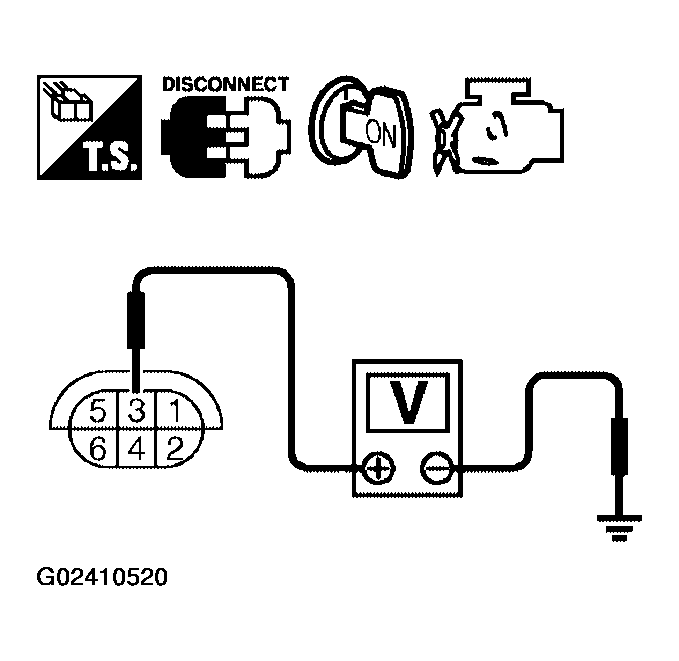

- Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.
Voltage: Battery voltage
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M70, F58
- Fuse block (J/B) connector M4
- 15A fuse
- Harness for open or short between A/F sensor 1 and fuse
- Repair or replace harness or connectors.
- CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.

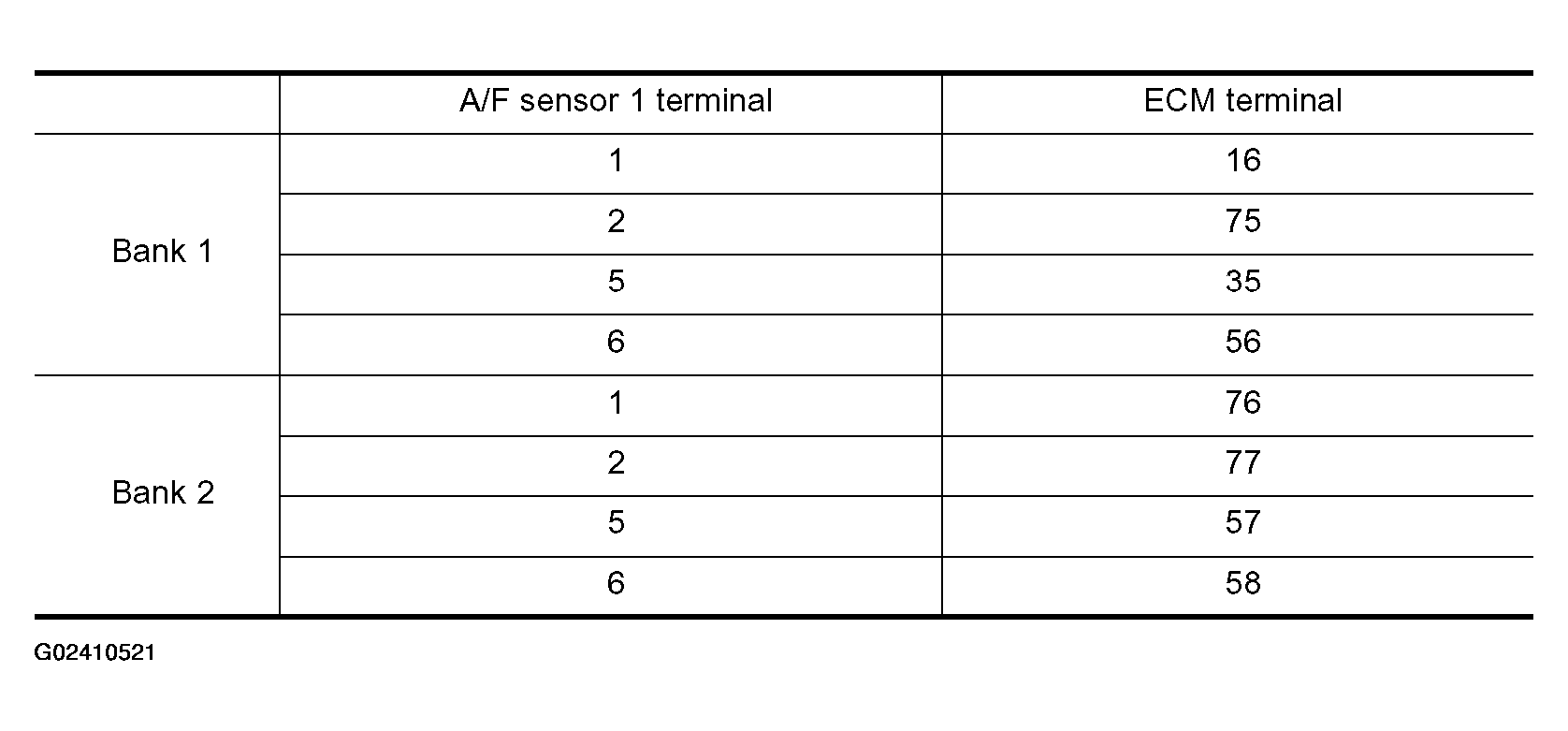

- Check harness continuity between the following terminals. Refer to
WIRING DIAGRAM .
Continuity should exist.

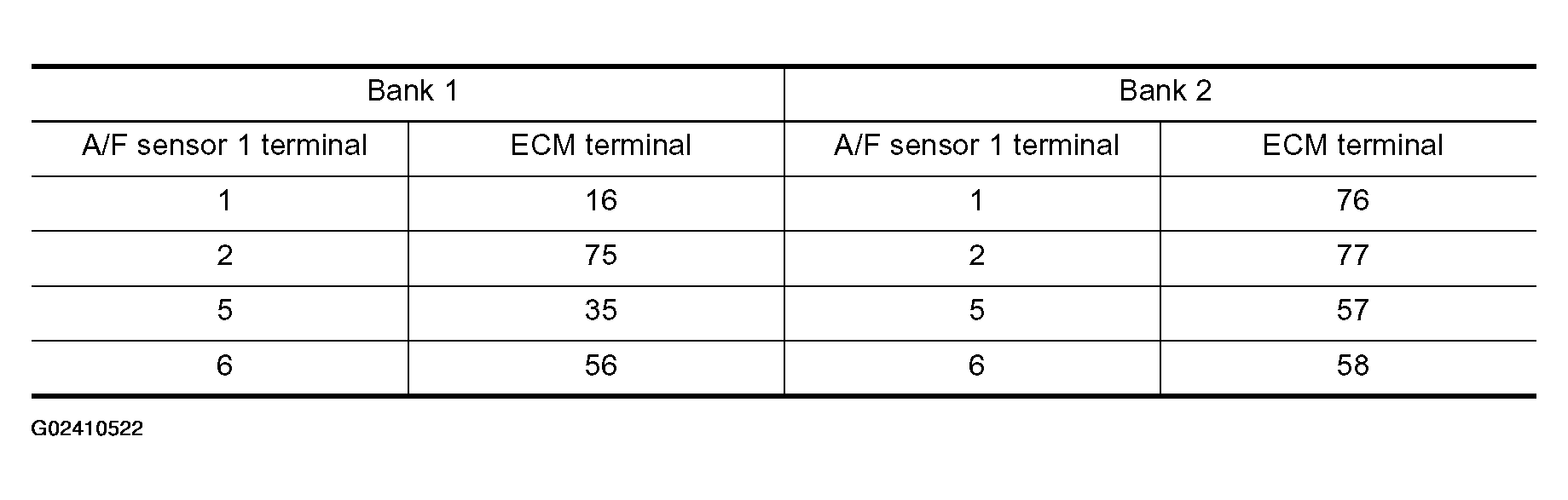

- Check harness continuity between the following terminals and ground. Refer to
WIRING DIAGRAM .
Continuity should not exist.
- Also check harness for short to power.
OK or NG
- OK: GO TO 5.
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
OK or NG
- OK: Replace A/F sensor 1.
- NG: Repair or replace.
