With Consult-II

  1. Start engine (TCS switch or VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press CRUISE switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    SPECIFIED CONDITIONS

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

    If DTC is detected, go to DIAGNOSTIC PROCEDURE .

    If DTC is not detected, go to the following step.

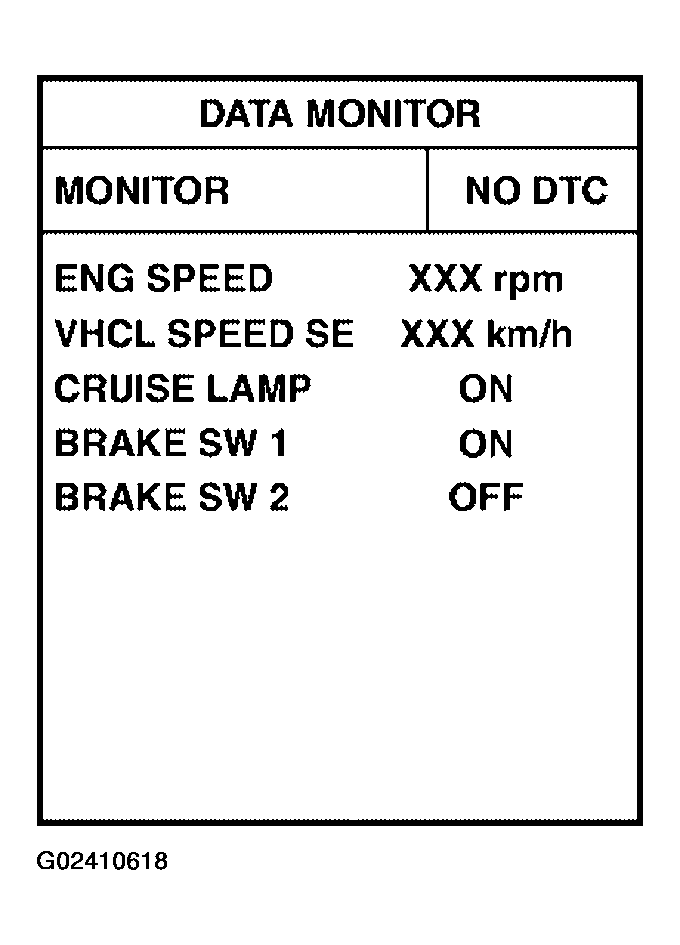

    Fig 1: CONSULT-II Data Monitor Screen
    G02410618Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    SPECIFIED CONDITIONS

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned condition.
  6. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
