Diagnostic Procedure
- CHECK STOP LAMP SWITCH CIRCUIT
- Turn ignition switch OFF.
- Check the stop lamp when depressing and releasing the brake pedal.BRAKE PEDAL CONDITION AND STOP LAMP ILLUMINATION
Brake pedal Stop lamp Fully released Not illuminated Depressed Illuminated
OK or NG
- CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

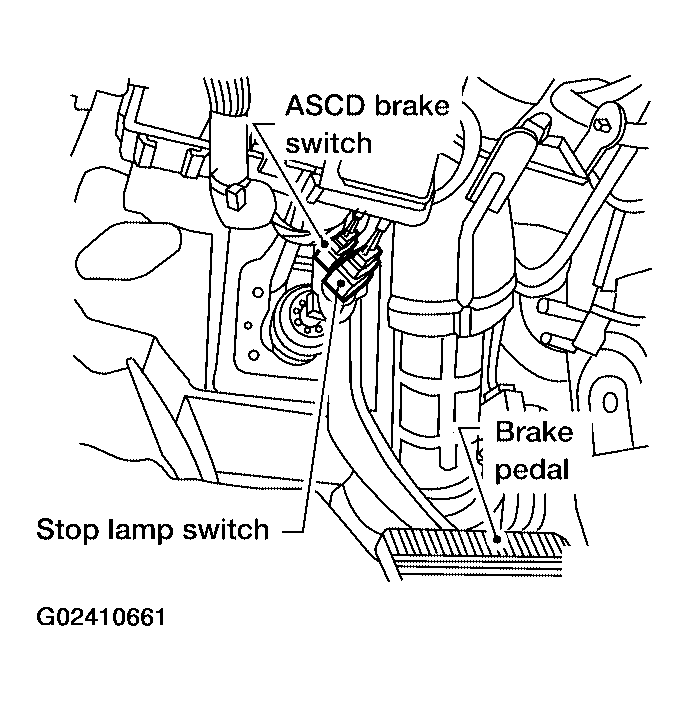

- Disconnect stop lamp switch harness connector.

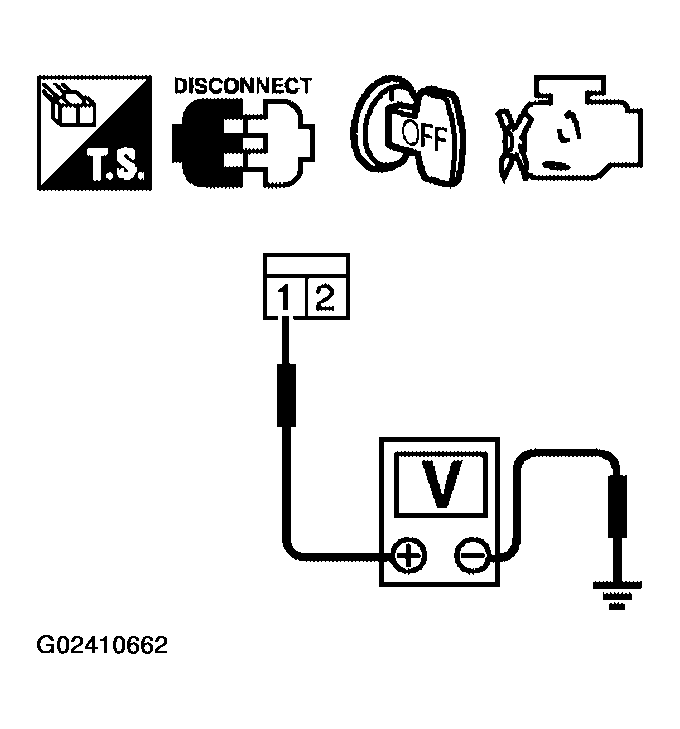

- Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
Voltage: Battery voltage
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- 10A fuse
- Fuse block (J/B) connector E30
- Harness for open and short between stop lamp switch and fuse
- Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to WIRING DIAGRAM - BRK/SW .
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E25, M90
- Harness for open or short between ECM and stop lamp switch
- Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK STOP LAMP SWITCH
Refer to COMPONENT INSPECTION .
OK or NG
- OK: GO TO 7.
- NG: Replace stop lamp switch.
- CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- INSPECTION END
