Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.

    Resistance: Approximately 0.2 - 5.0Ω [at 25°C (77°F)]

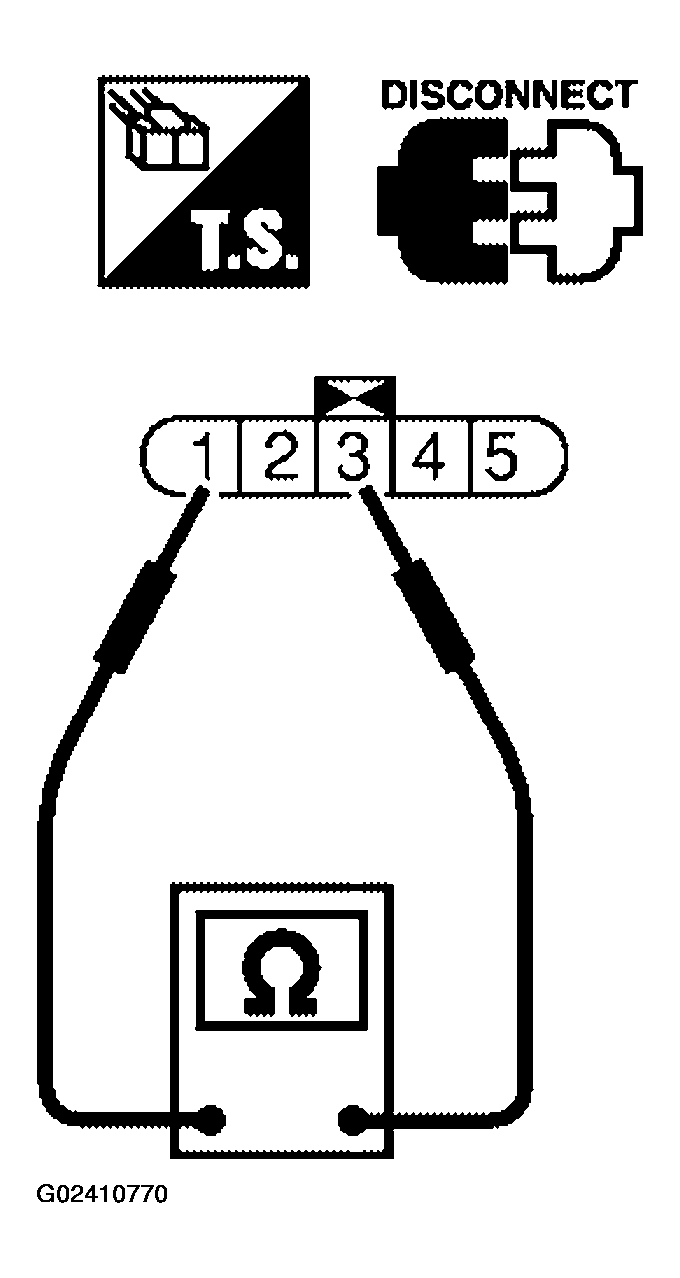

    Fig 1: Checking Resistance Between Fuel Level Sensor Unit & Fuel Pump Terminals
    G02410770Courtesy of NISSAN MOTOR CO., U.S.A.
