NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to
DTC U1000, U1001 CAN COMMUNICATION LINE .

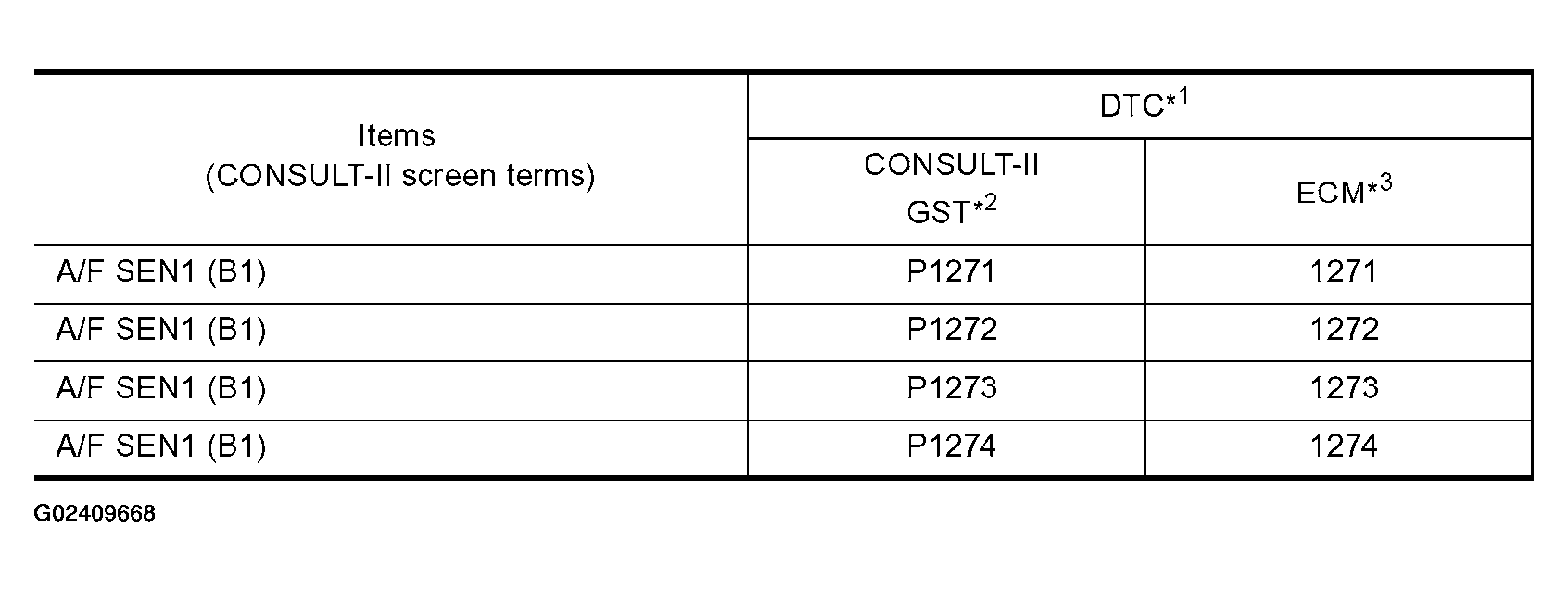

Fig 1: Troubleshooting Alphabetical Index Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

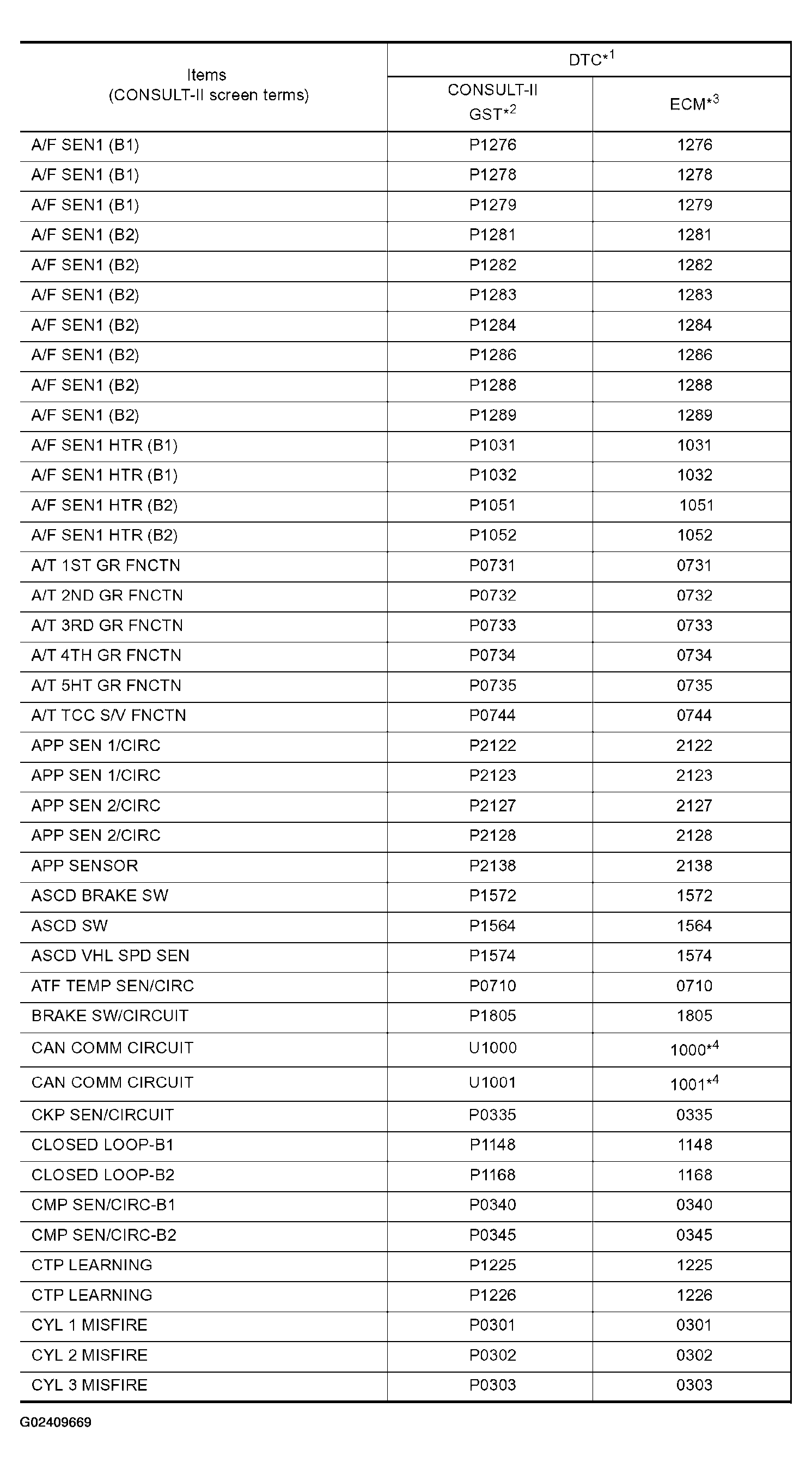

Fig 2: Troubleshooting Alphabetical Index Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

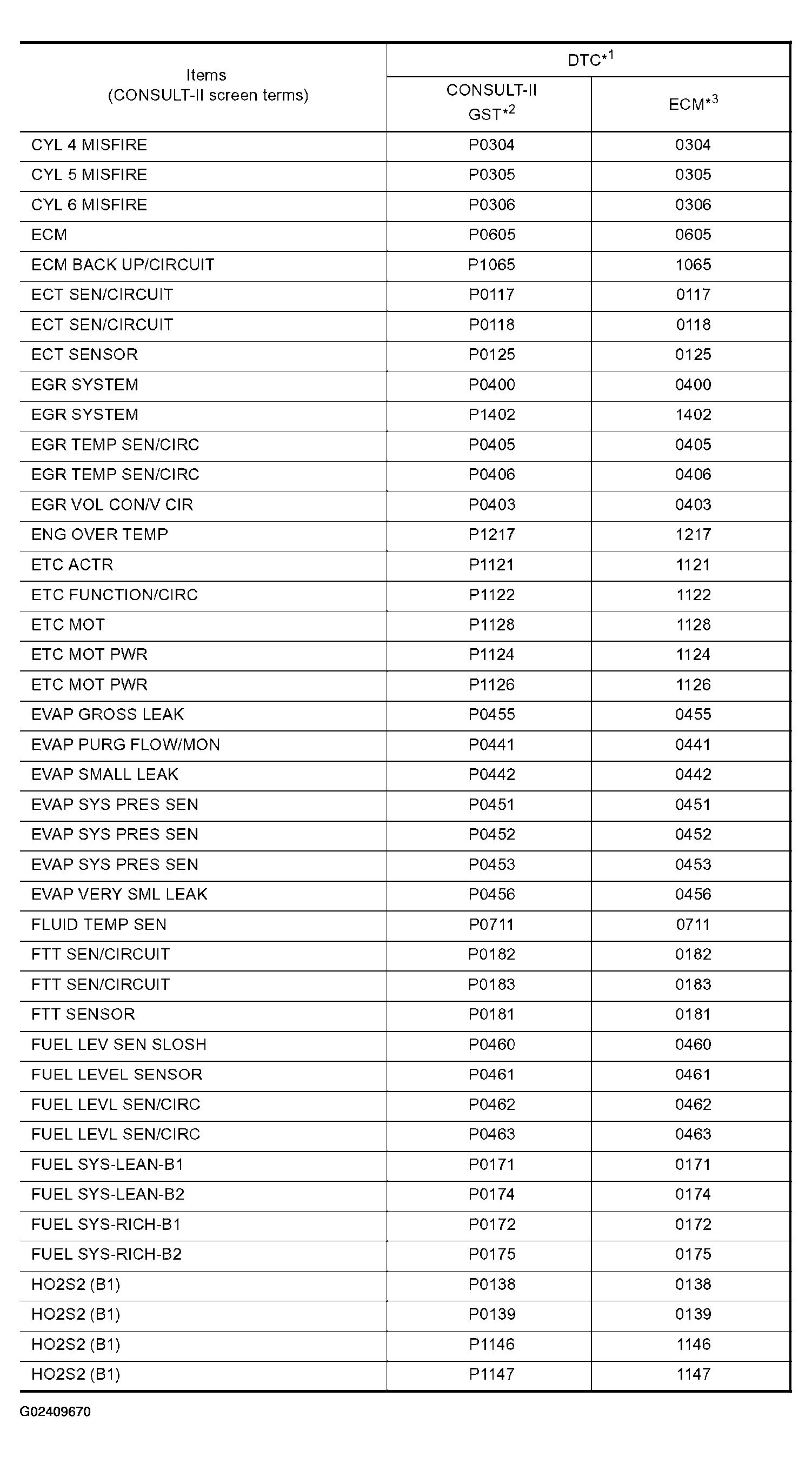

Fig 3: Troubleshooting Alphabetical Index Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

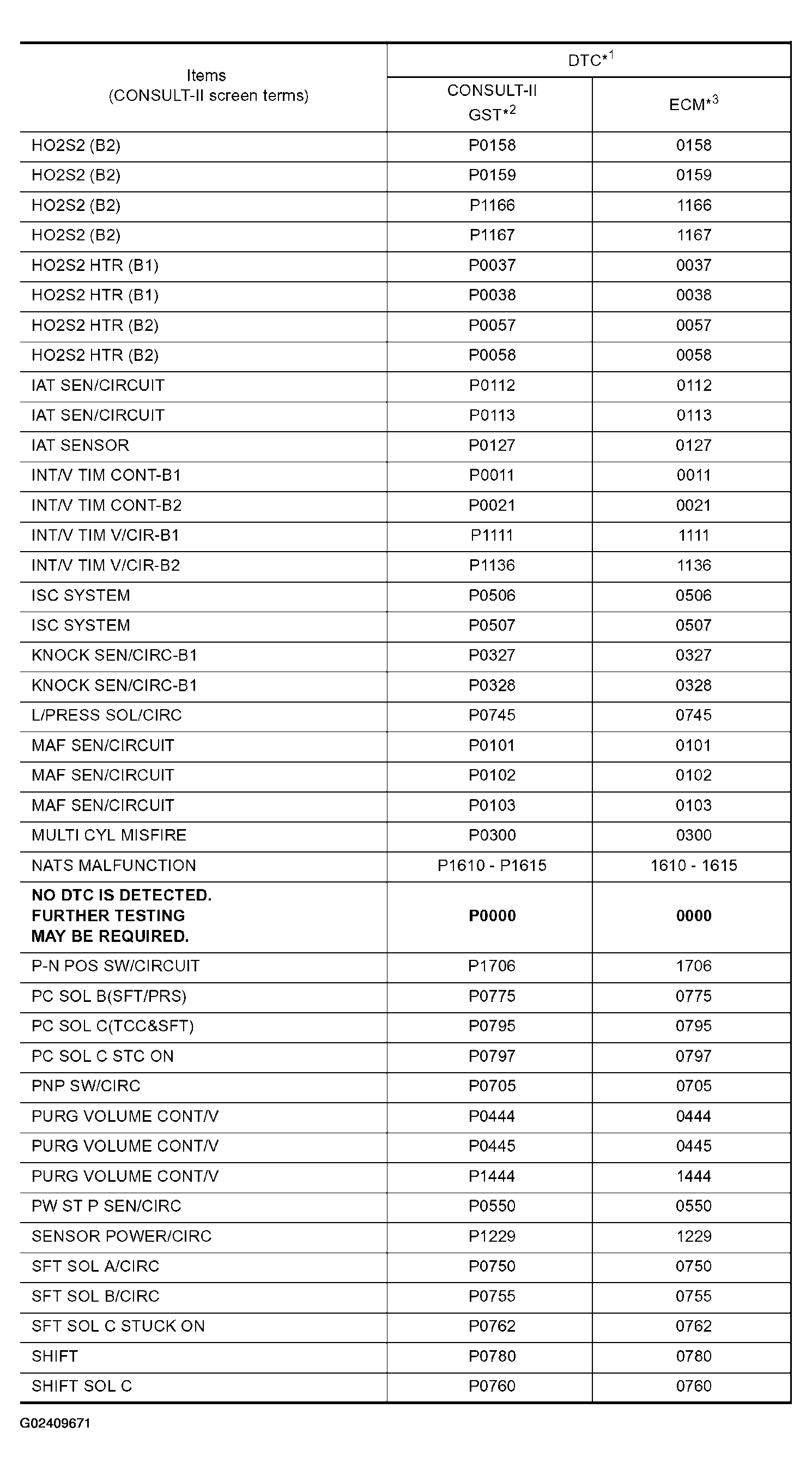

Fig 4: Troubleshooting Alphabetical Index Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

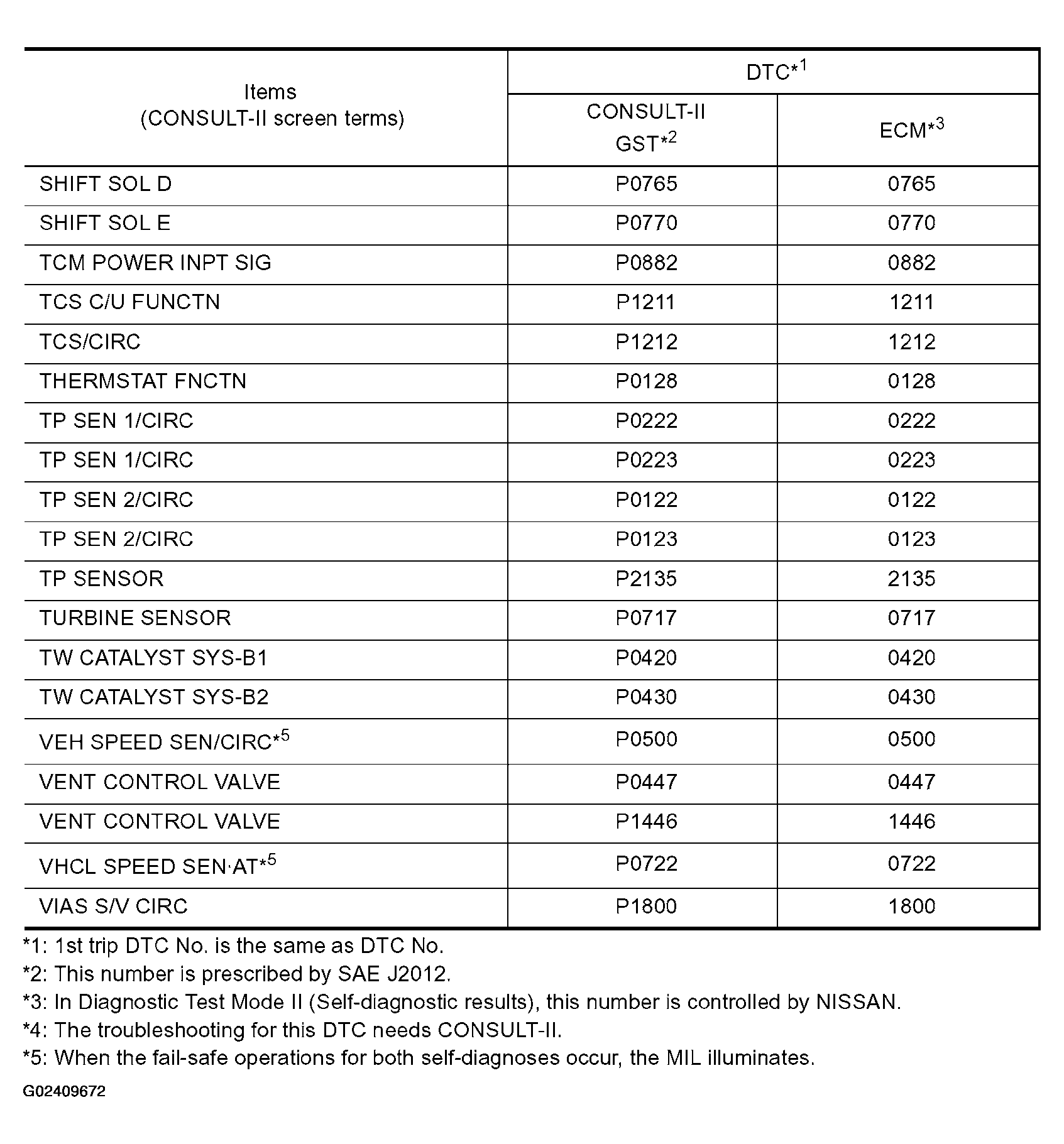

Fig 5: Troubleshooting Alphabetical Index Chart (5 Of 5)
