Wiring Diagram - MIL/DL

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

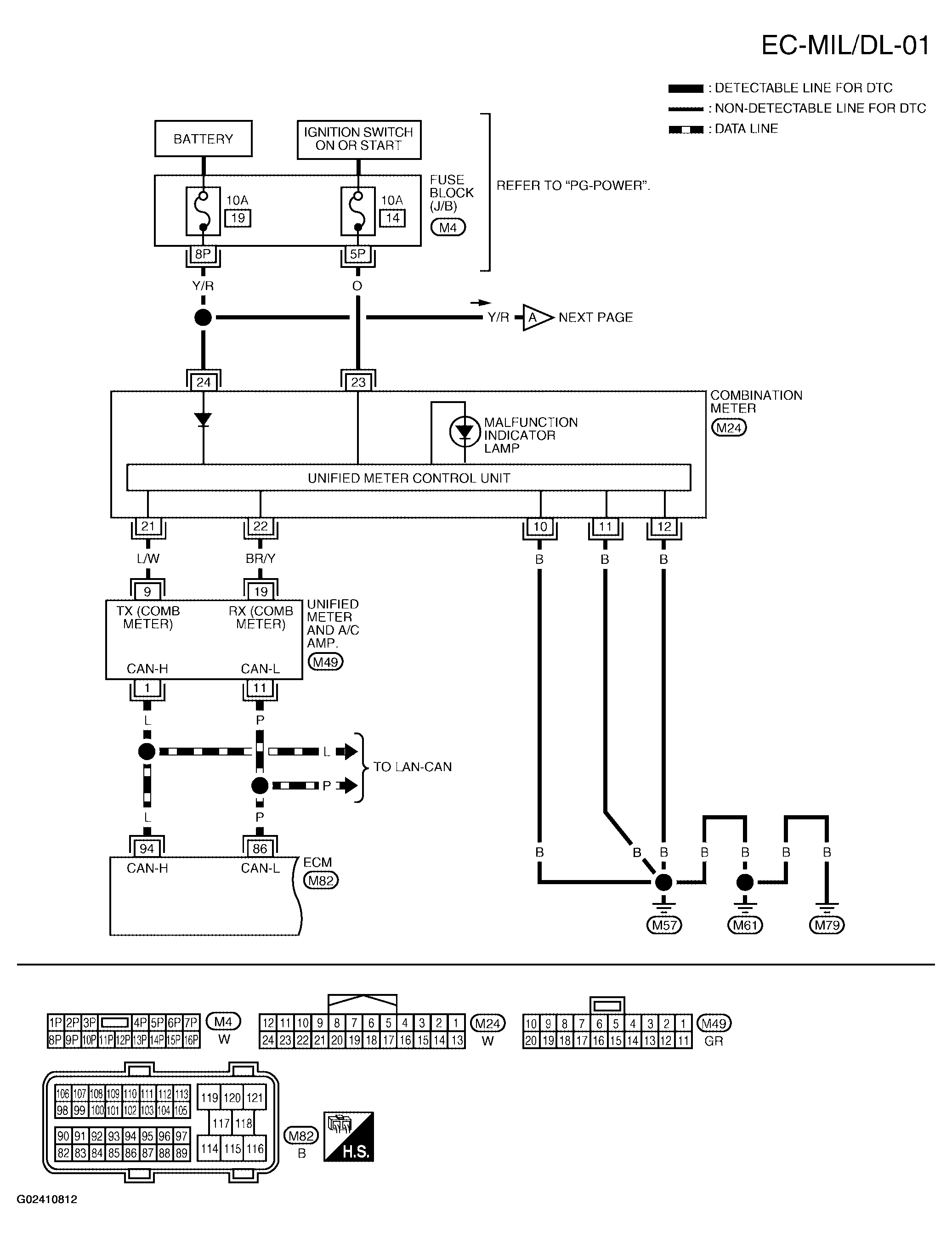

Fig 1: Wiring Diagram - (EC-MIL/DL-01)
G02410812Courtesy of NISSAN MOTOR CO., U.S.A.

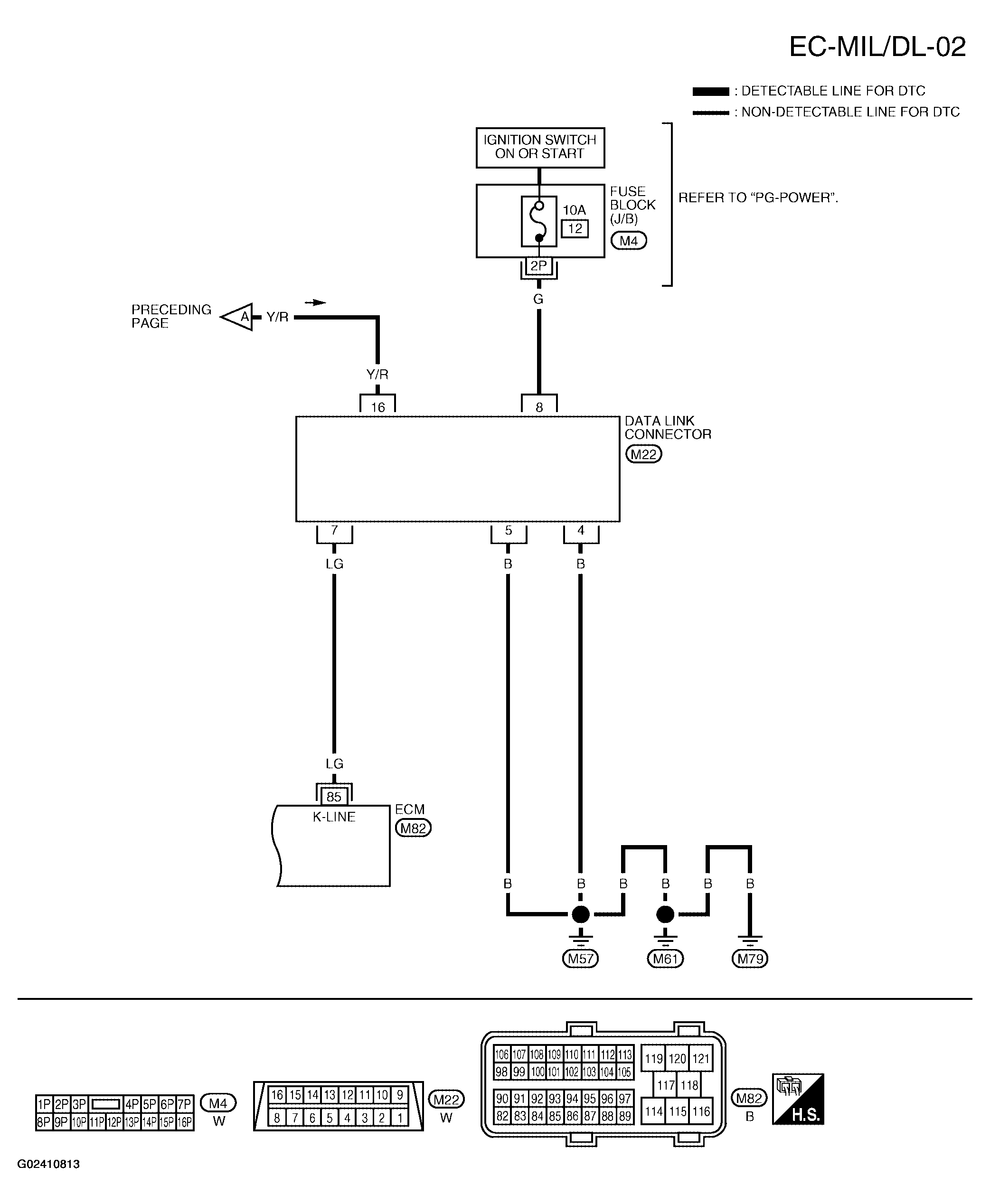

Fig 2: Wiring Diagram - (EC-MIL/DL-02)
G02410813Courtesy of NISSAN MOTOR CO., U.S.A.
