Driving Pattern

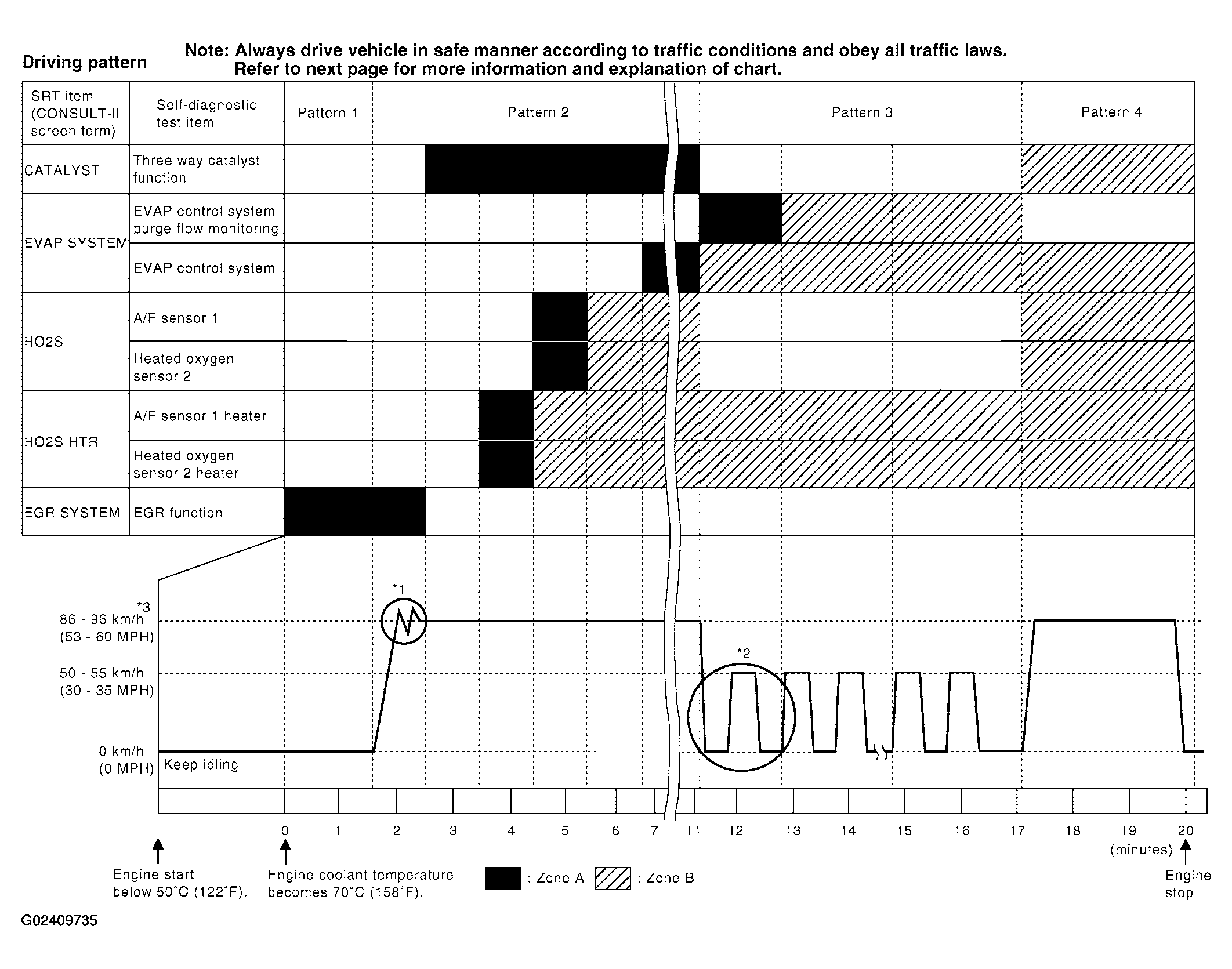

Fig 1: Driving Blinking Pattern

Courtesy of NISSAN MOTOR CO., U.S.A.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving habits, etc.

  Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the shortest.

  Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within zone A.

*: Normal conditions refer to the following:

• Sea level
• Flat road
• Ambient air temperature: 20 - 30°C (68 - 86°F)
• Diagnosis is performed as quickly as possible under normal conditions. Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diagnosis may also be performed.

Pattern 1:

• The engine is started at the engine coolant temperature of -10 to 35°C (14 to 95°F) (where the voltage between the ECM terminal 73 and ground is 3.0 - 4.3 V).
• The engine must be operated at idle speed until the engine coolant temperature is greater than 70°C (158°F) (where the voltage between the ECM terminal 73 and ground is lower than 1.4 V).
• The engine is started at the fuel tank temperature of warmer than 0°C (32°F) (where the voltage between the ECM terminal 107 and ground is less than 4.1V).

Pattern 2:

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted. In this case, the time required for diagnosis may be extended.

Pattern 3:

• The driving pattern outlined in *2 must be repeated at least 3 times.

Pattern 4:

• Tests are performed after the engine has been operated for at least 17 minutes.
• The accelerator pedal must be held very steady during steady-state driving.
• If the accelerator pedal is moved, the test must be conducted all over again.
  1. *Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again.
  2. *Operate the vehicle in the following driving pattern.
     1. Decelerate vehicle to 0 km/h (0 MPH) and let engine idle.
     2. Repeat driving pattern shown at right at least 10 times.
        • During acceleration, hold the accelerator pedal as steady as possible.
  3. *Checking the vehicle speed with GST is advised.

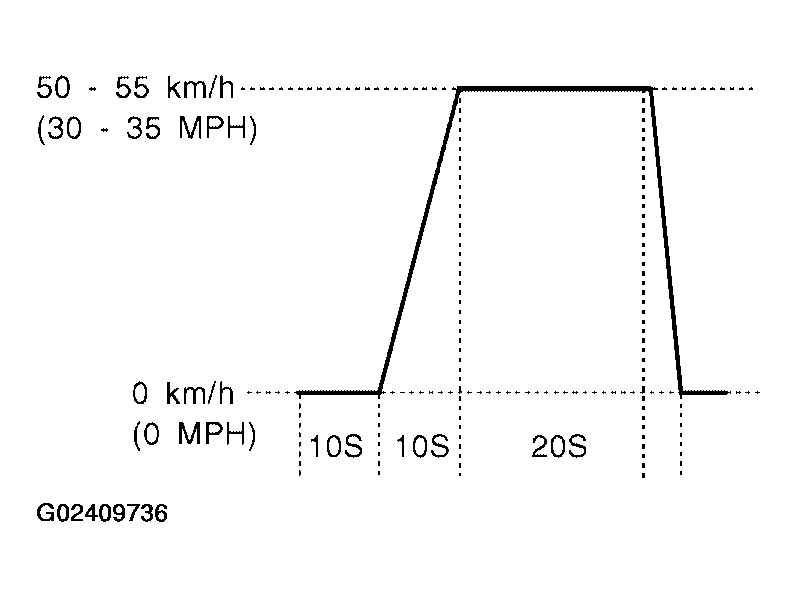

     Fig 2: Identifying Operate Vehicle Driving Pattern

     Courtesy of NISSAN MOTOR CO., U.S.A.
