CONSULT-II Function (ENGINE): Function

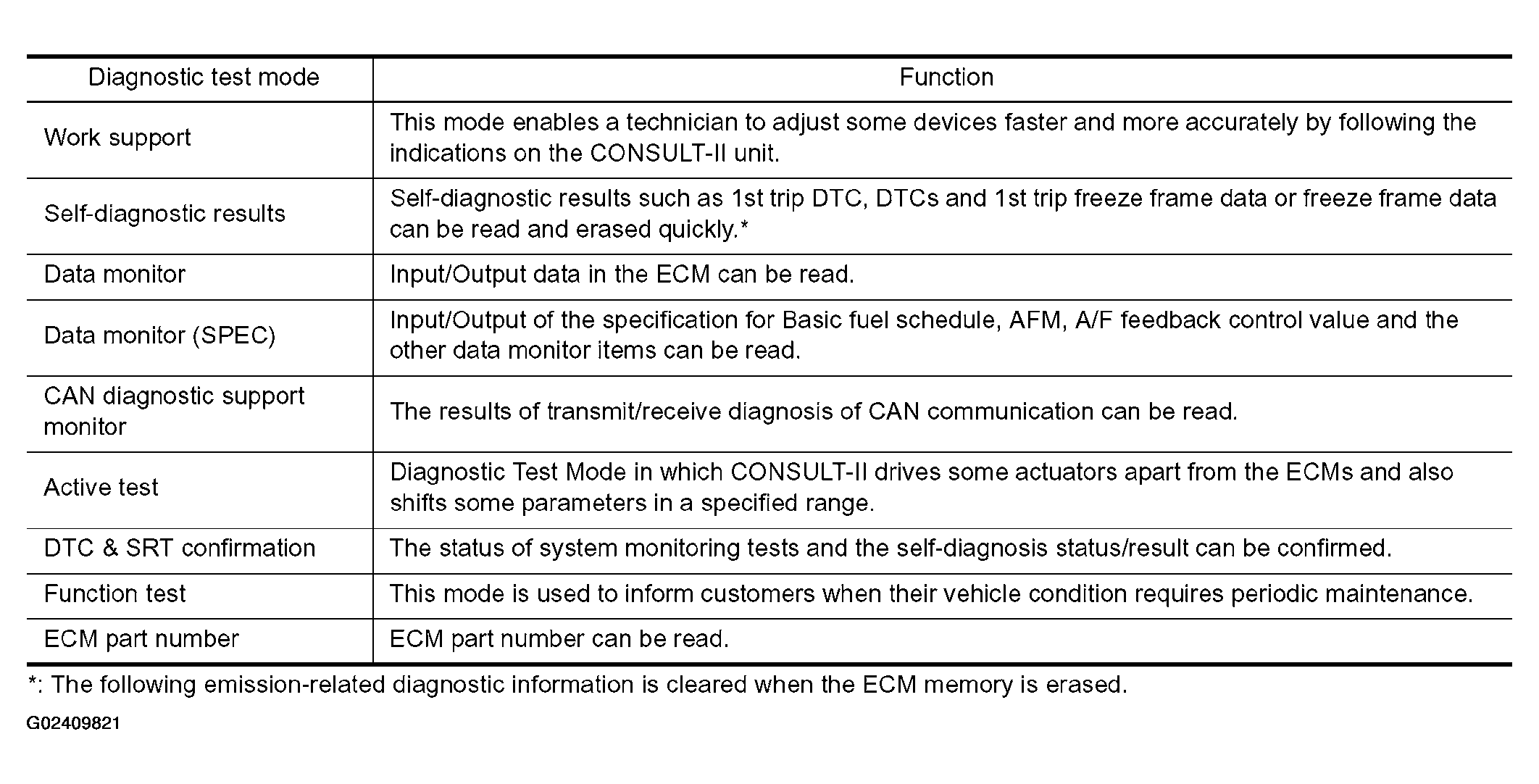

Fig 1: CONSULT-II Function Chart (Engine)
Courtesy of NISSAN MOTOR CO., U.S.A.
Diagnostic trouble codes
1st trip diagnostic trouble codes
Freeze frame data
1st trip freeze frame data
System readiness test (SRT) codes
Test values
Courtesy of NISSAN MOTOR CO., U.S.A.
