ECM Inspection Chart

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

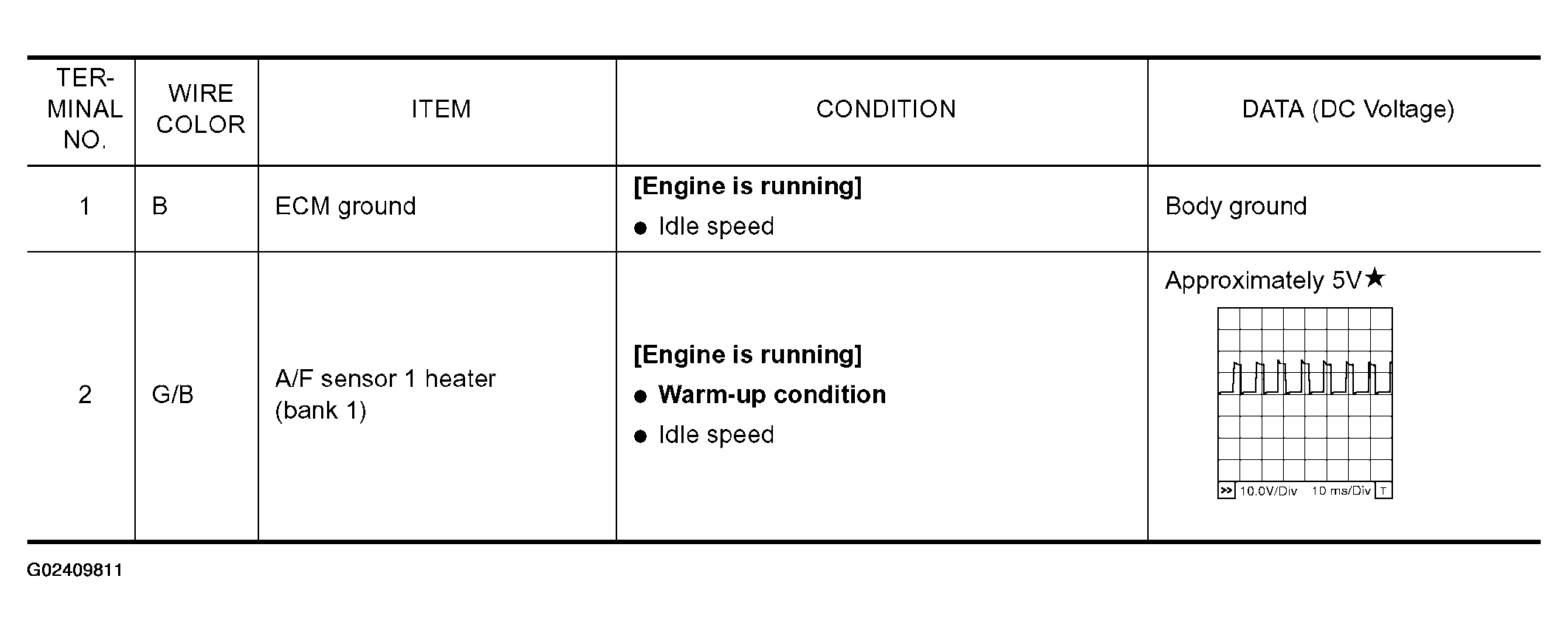

Fig 1: ECM Connector Terminal Voltage Specification Chart (1 Of 10)

G02409811

Courtesy of NISSAN MOTOR CO., U.S.A.

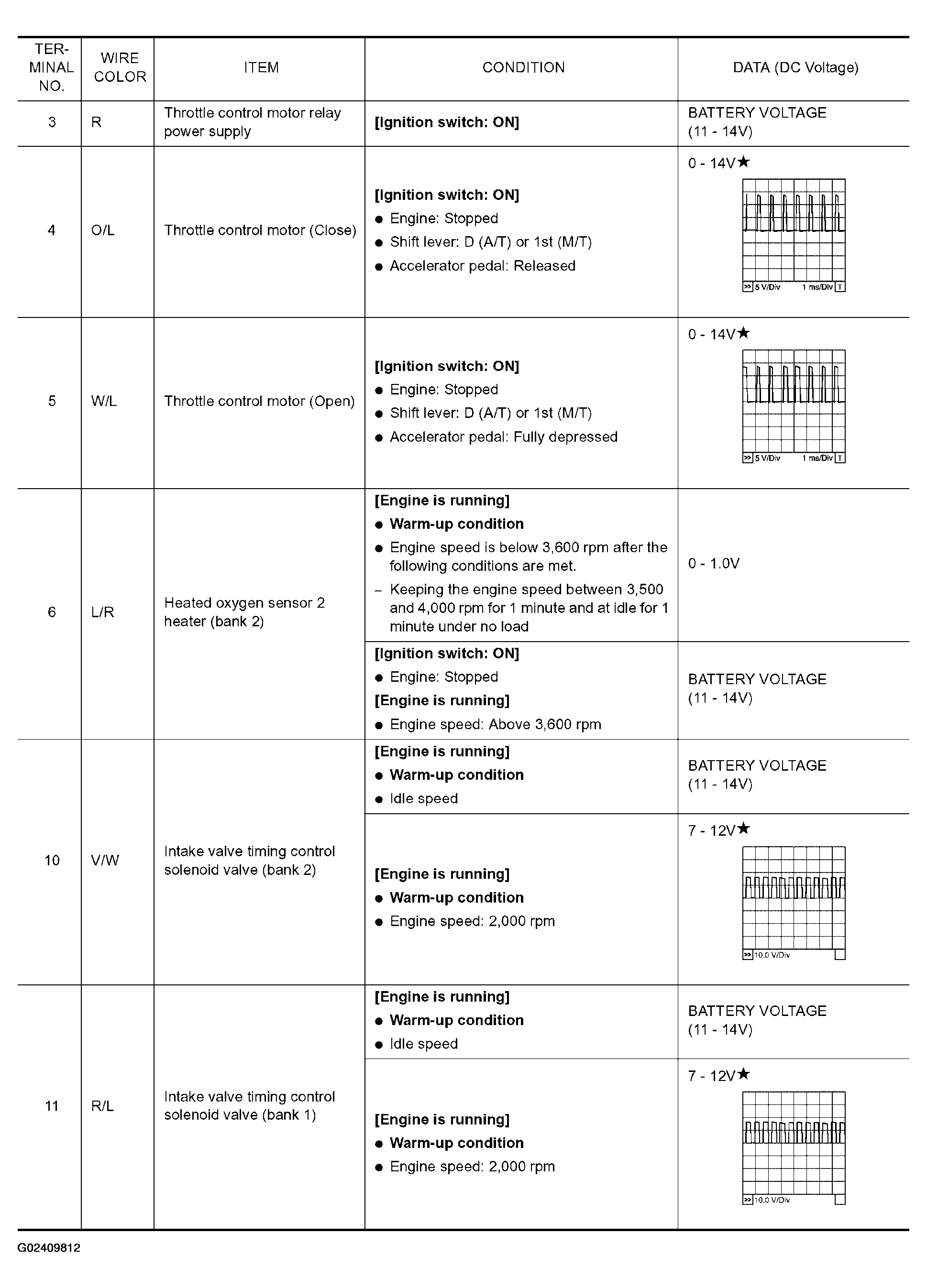

Fig 2: ECM Connector Terminal Voltage Specification Chart (2 Of 10)

G02409812

Courtesy of NISSAN MOTOR CO., U.S.A.

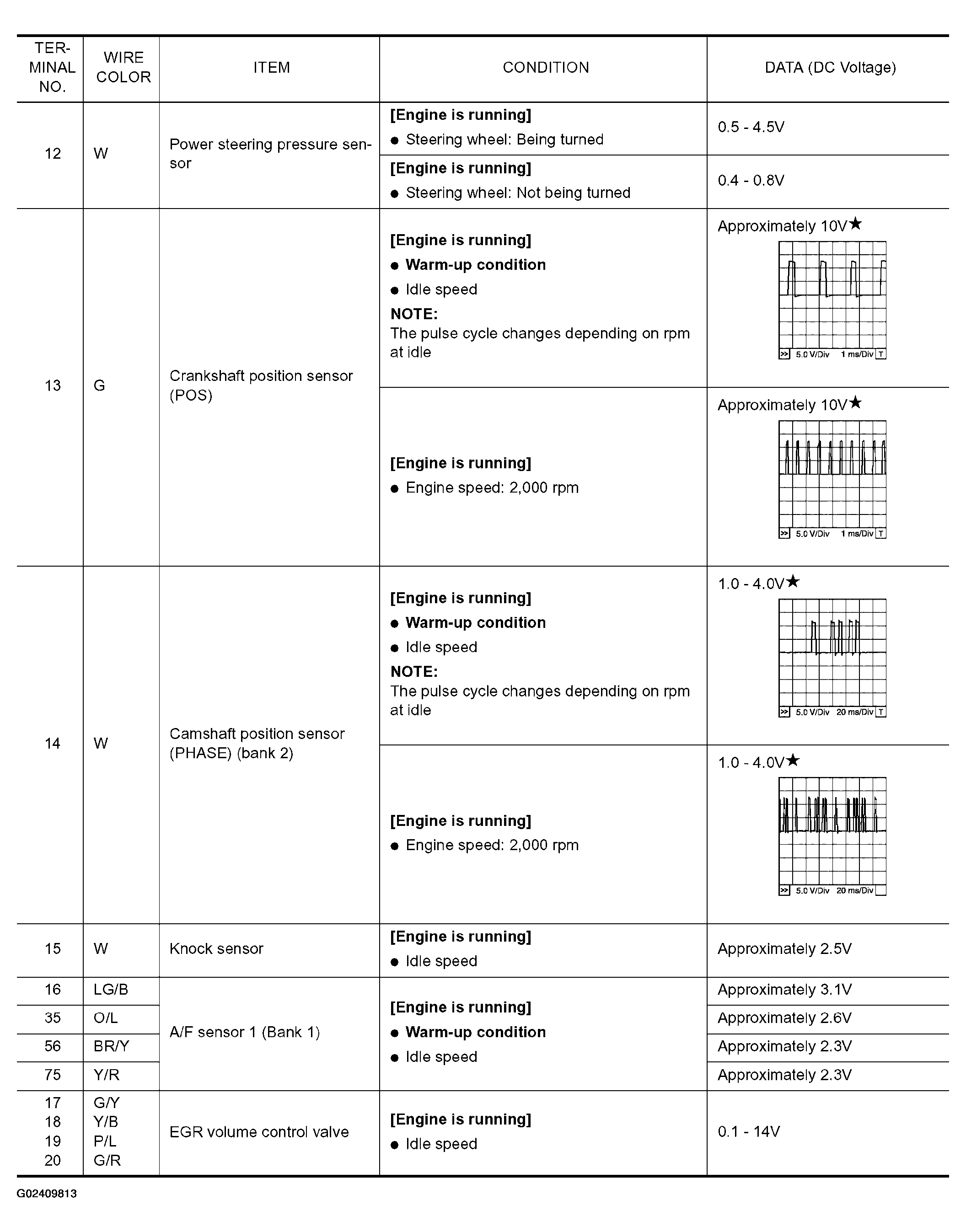

Fig 3: ECM Connector Terminal Voltage Specification Chart (3 Of 10)

G02409813

Courtesy of NISSAN MOTOR CO., U.S.A.

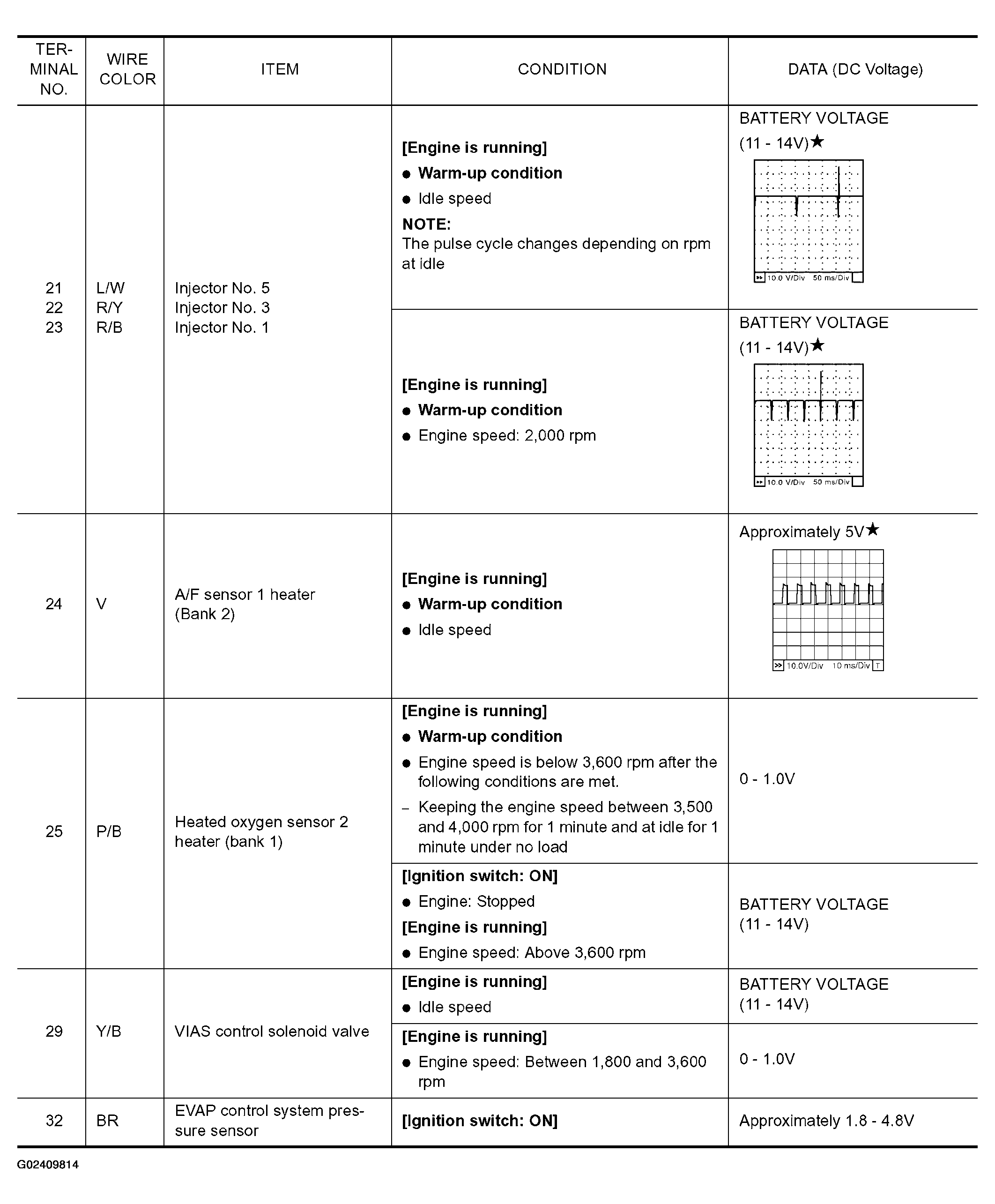

Fig 4: ECM Connector Terminal Voltage Specification Chart (4 Of 10)

G02409814

Courtesy of NISSAN MOTOR CO., U.S.A.

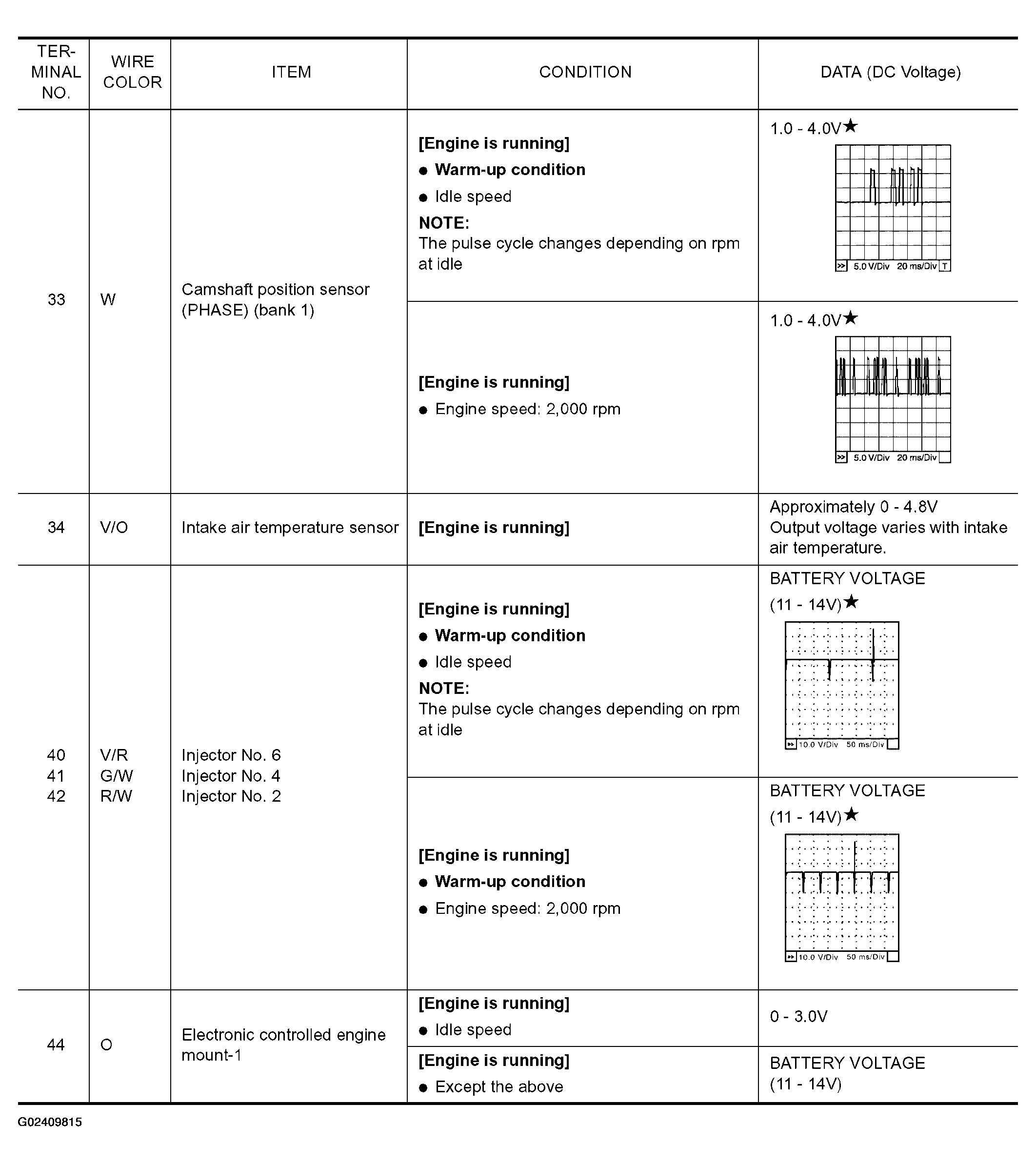

Fig 5: ECM Connector Terminal Voltage Specification Chart (5 Of 10)

G02409815

Courtesy of NISSAN MOTOR CO., U.S.A.

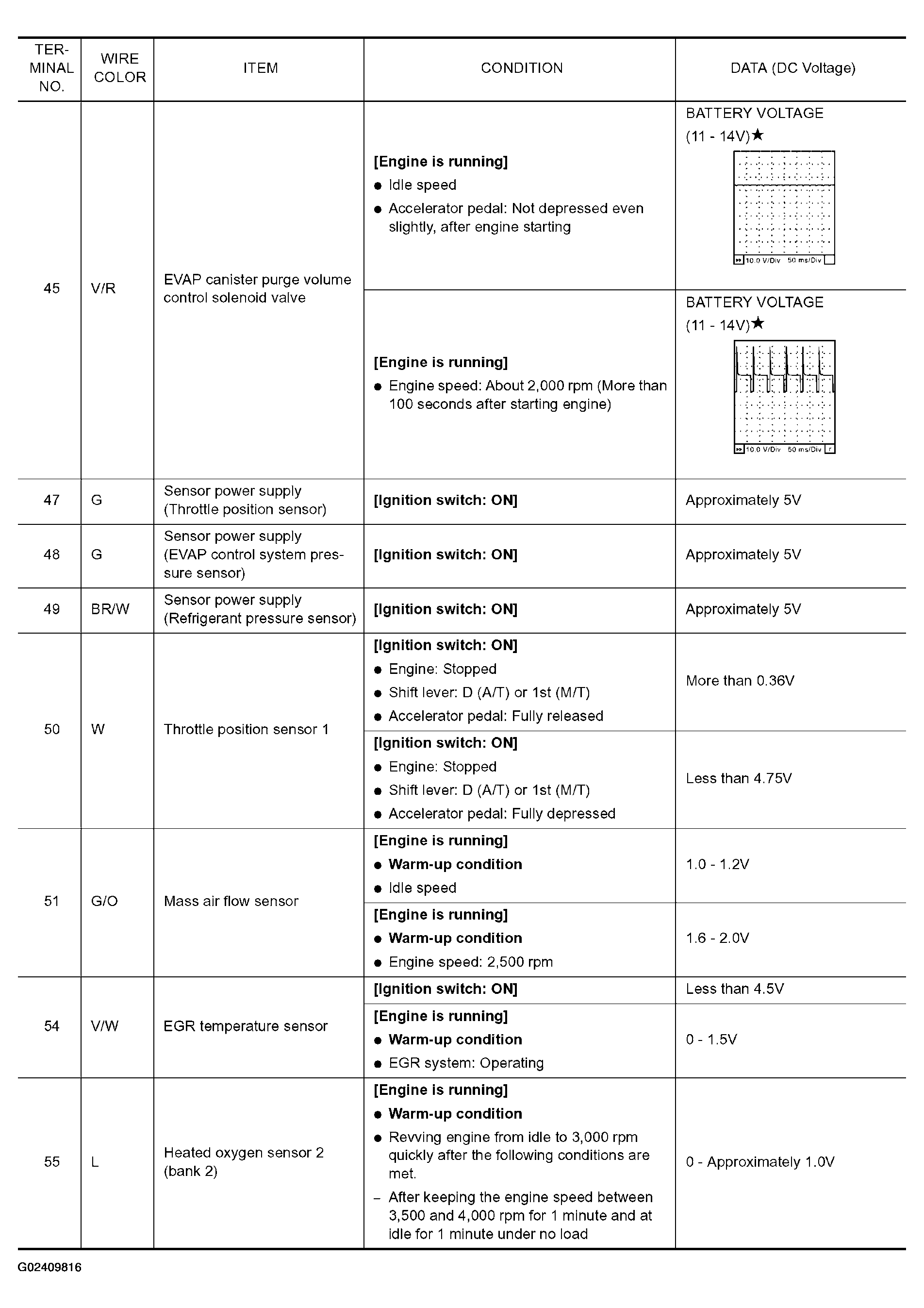

Fig 6: ECM Connector Terminal Voltage Specification Chart (6 Of 10)

G02409816

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: ECM Connector Terminal Voltage Specification Chart (7 Of 10)

G02409817

Courtesy of NISSAN MOTOR CO., U.S.A.

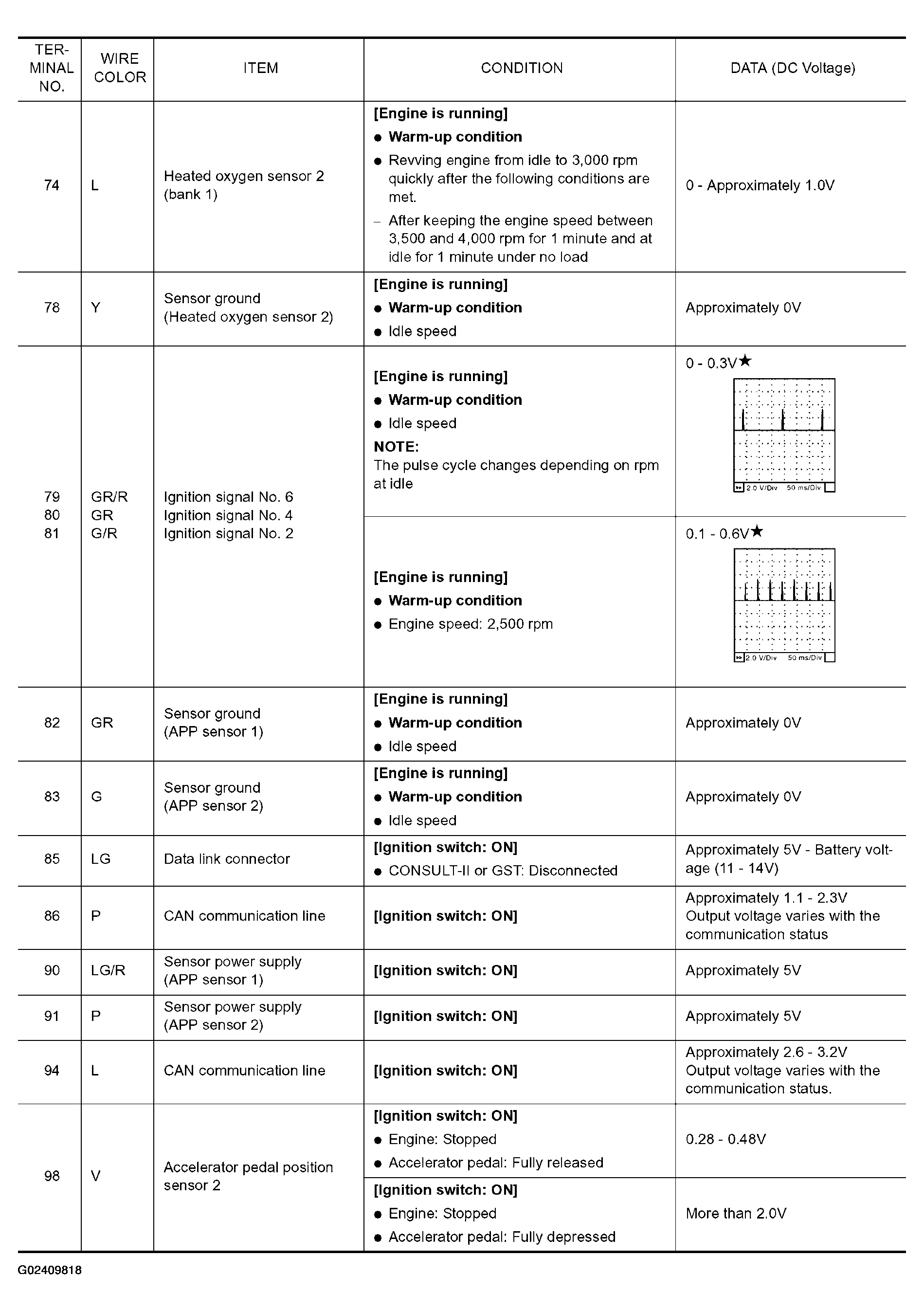

Fig 8: ECM Connector Terminal Voltage Specification Chart (8 Of 10)

G02409818

Courtesy of NISSAN MOTOR CO., U.S.A.

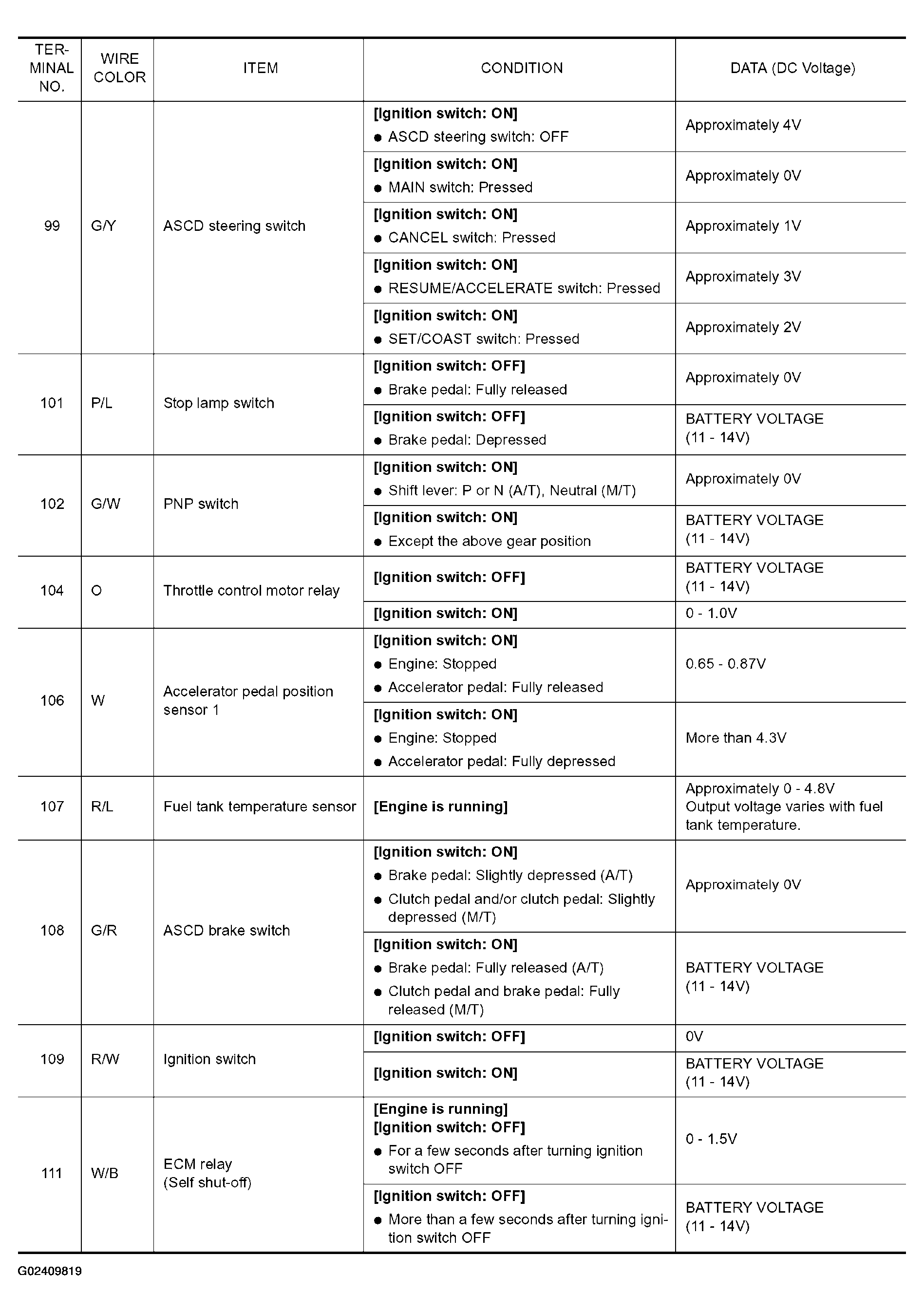

Fig 9: ECM Connector Terminal Voltage Specification Chart (9 Of 10)

G02409819

Courtesy of NISSAN MOTOR CO., U.S.A.

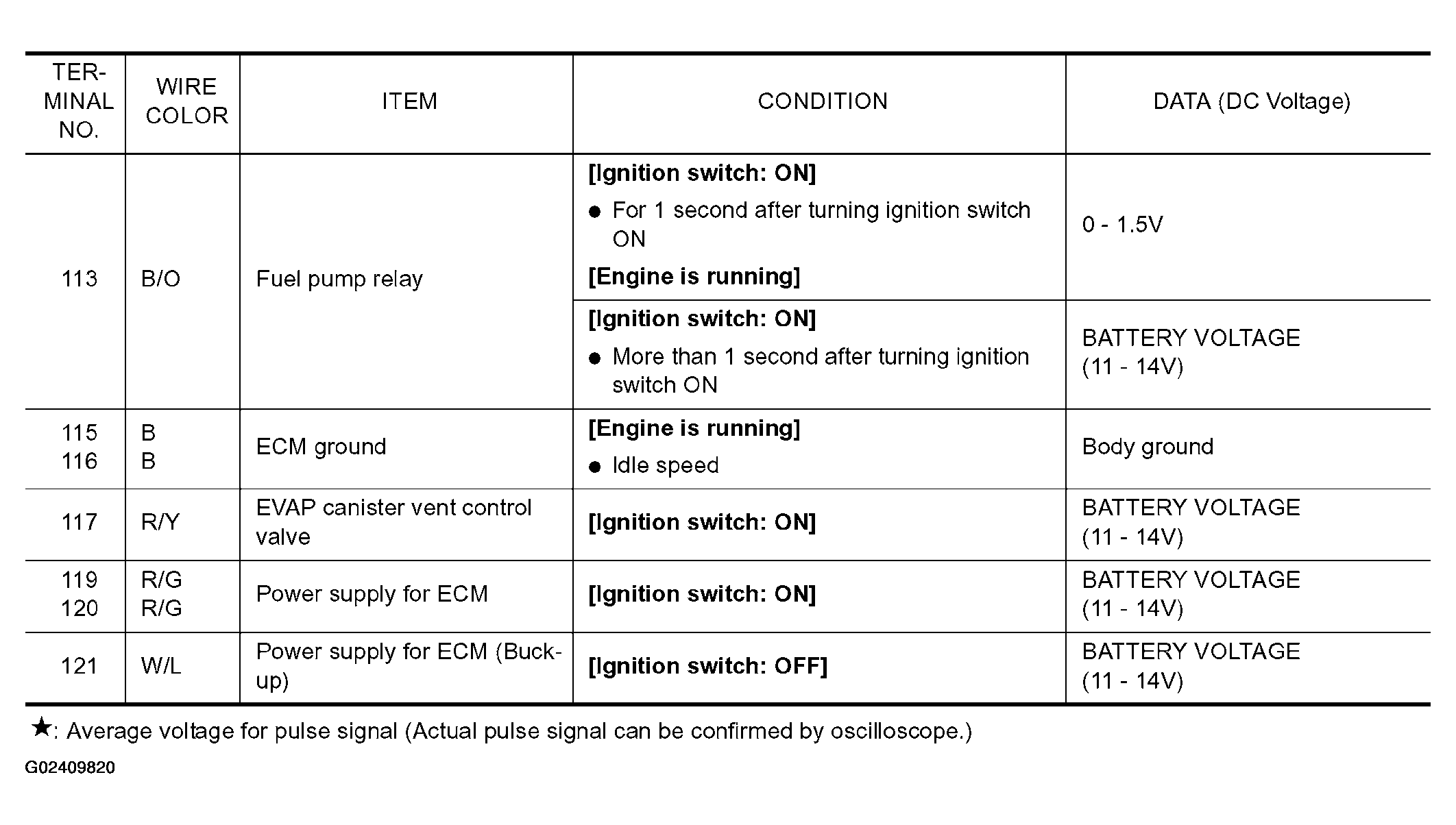

Fig 10: ECM Connector Terminal Voltage Specification Chart (10 Of 10)

G02409820

Courtesy of NISSAN MOTOR CO., U.S.A.
