With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
  4. Check air passage continuity and operation delay time under the following conditions.
    VIAS SOL VALVE CONDITION - AIR PASSAGE CONTINUITY

    Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C
    ON Yes No
    OFF No Yes

    Operation takes less than 1 second.

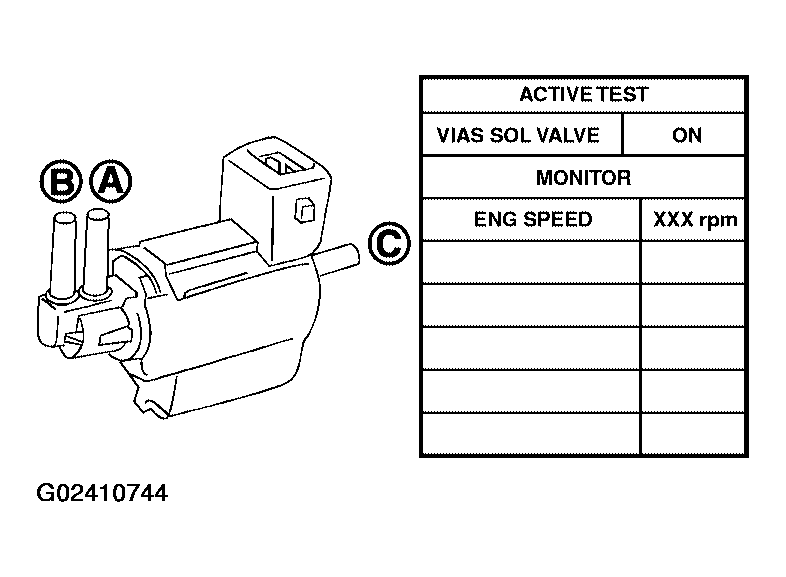

    Fig 1: Checking VIAS Control Solenoid Valve Air Passage Continuity
    G02410744Courtesy of NISSAN MOTOR CO., U.S.A.
