Removal And Installation: Installation
- Installation is in the reverse order of removal.
- Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.

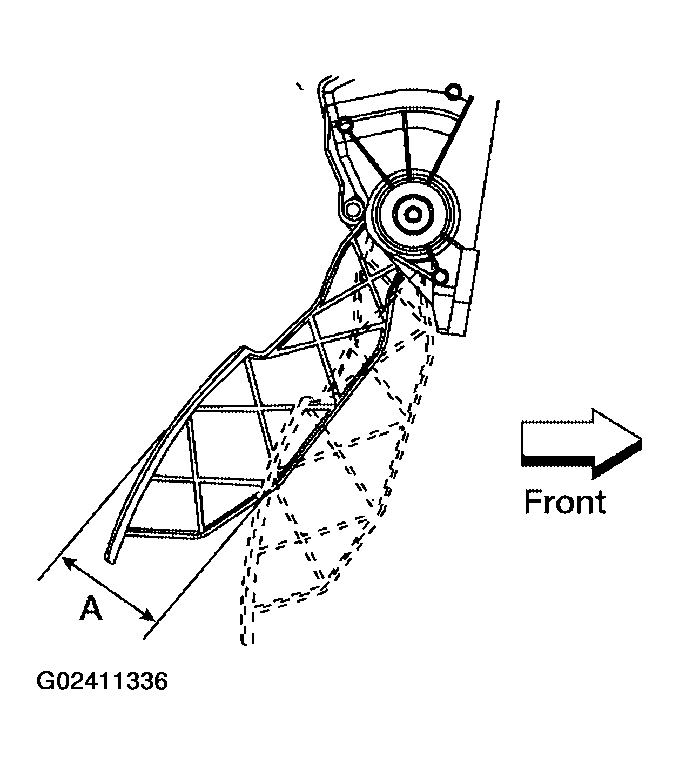

- Check that the accelerator pedal moves through the full specified distance of pedal travel.
Pedal travel A: 52.6 - 58.2 mm (2.07 - 2.29 in)
CAUTION: When the harness connector of the accelerator pedal position sensor is disconnected, perform the "Accelerator pedal released position learning". Refer to ACCELERATOR PEDAL RELEASED POSITION LEARNING .
