Component Description

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

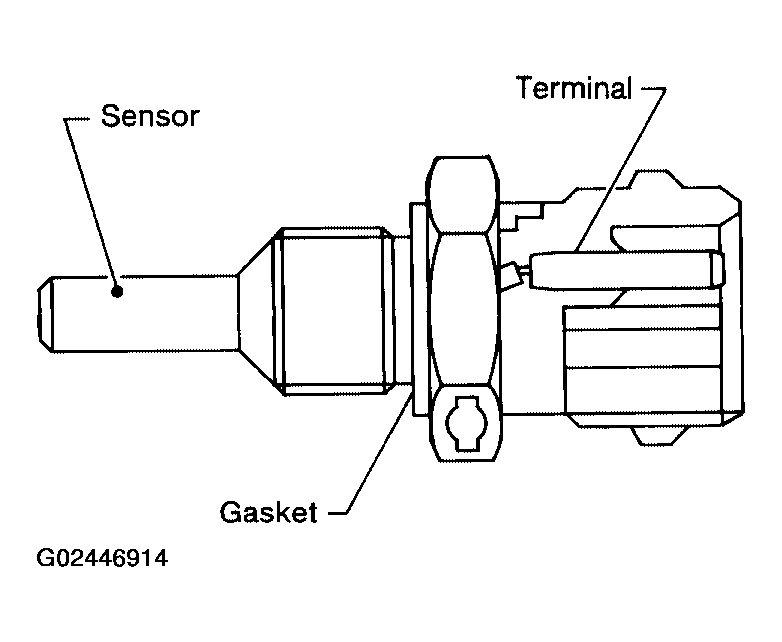

Fig 1: View Of ECT Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

ECT SENSOR VOLTAGE/RESISTANCE TABLE

Engine coolant temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

-10(14)

4.4

7.0 - 11.4

20(68)

3.5

2.1 -2.9

50(122)

2.2

0.68-1.00

90(194)

0.9

0.236 - 0.260

⁽¹⁾	These data are reference values and are measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

Fig 2: Resistance/Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
