Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

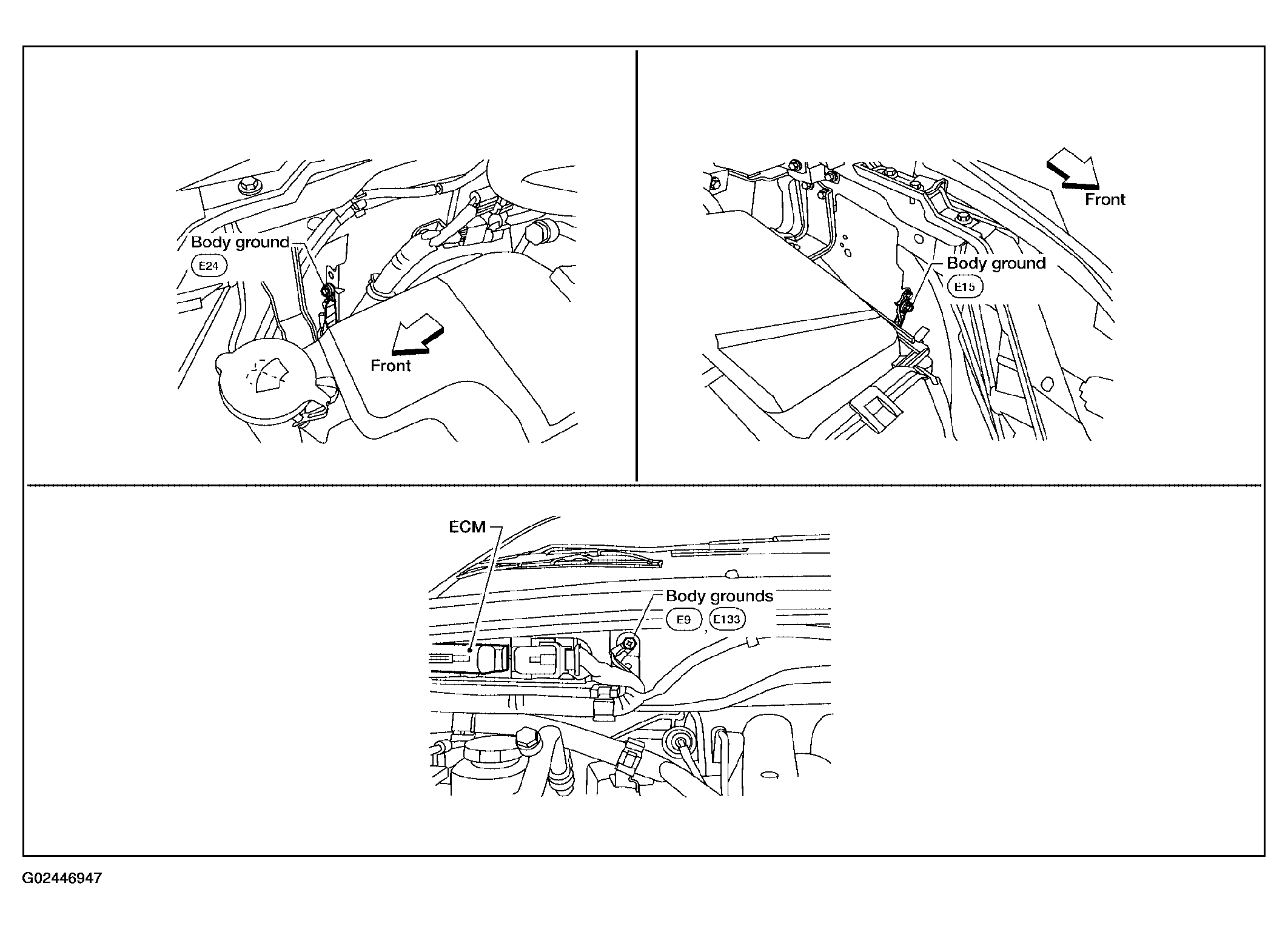

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 2.
• NG: Repair or replace ground connections.

Refer to "COMPONENT INSPECTION ".

OK or NG

• OK: GO TO 3.
• NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

Refer to "WIRING DIAGRAM ".

• : INSPECTION END
