DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Bank 1

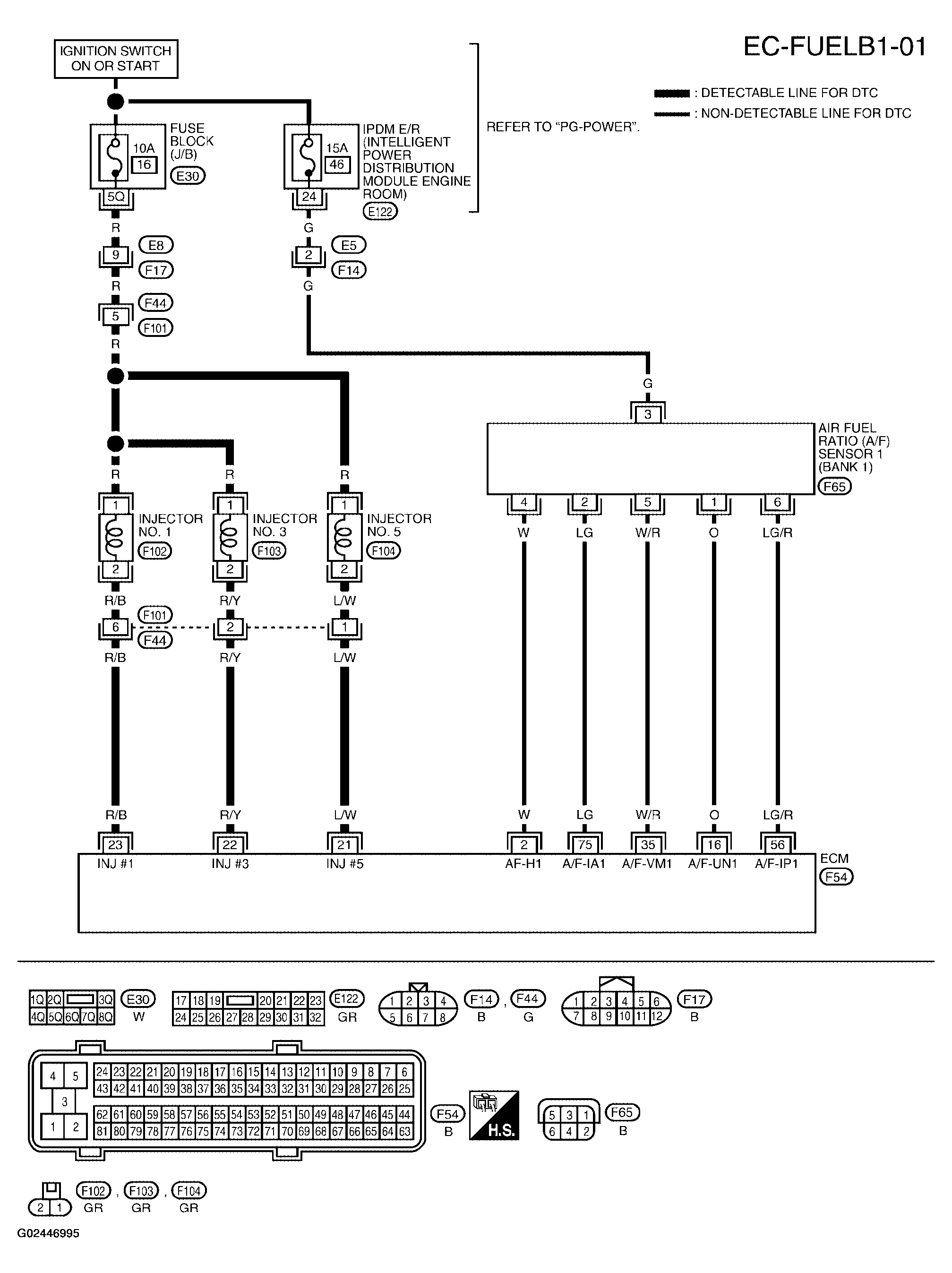

Fig 1: Wiring Diagram - Fuel Injection System - Bank 1 - EC-FUELB1-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
