With Consult-II

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.

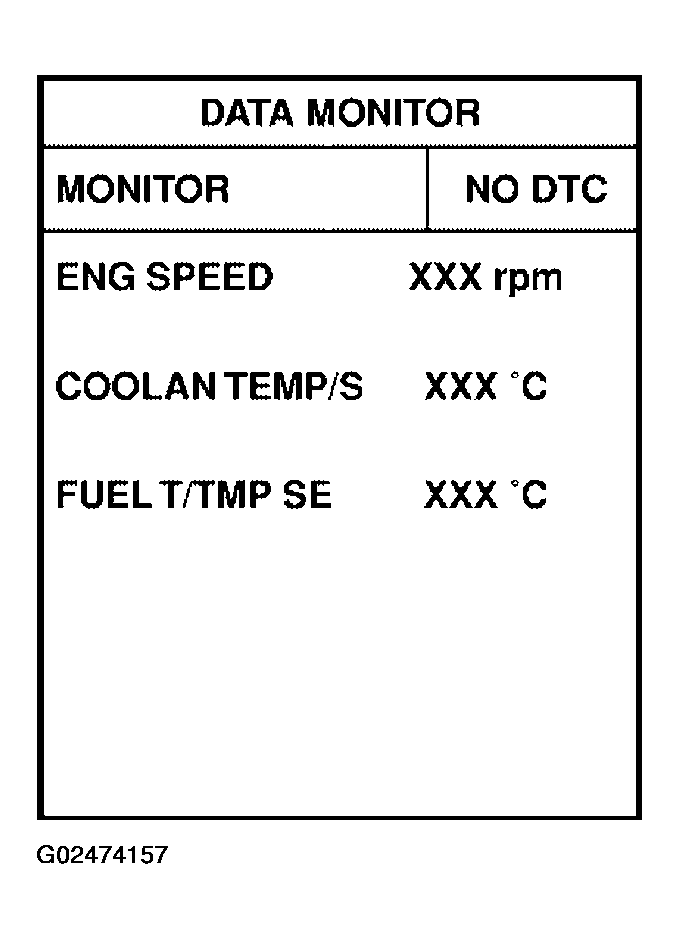

    Fig 1: CONSULT-II Data Monitor Display
    G02474157Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Make sure that "FUEL T/TMP SE" is more than 0°C (32°F).
  6. Wait at least 10 seconds.
  7. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
